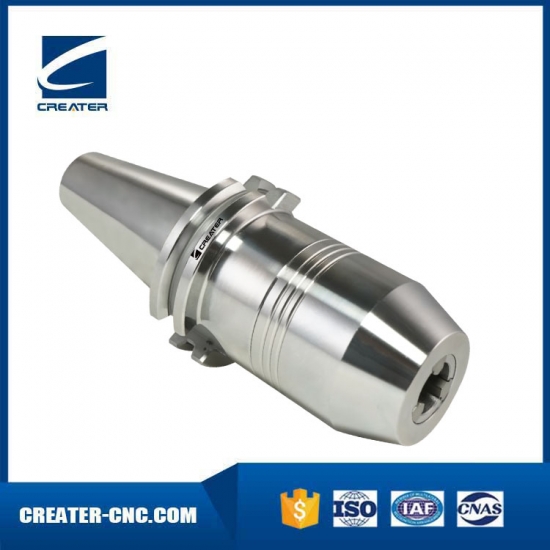

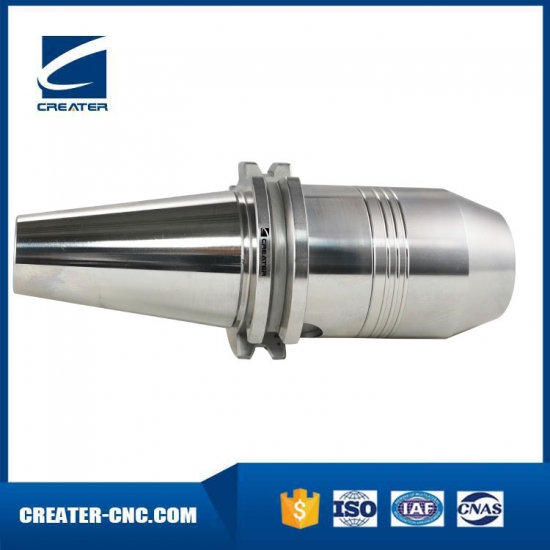

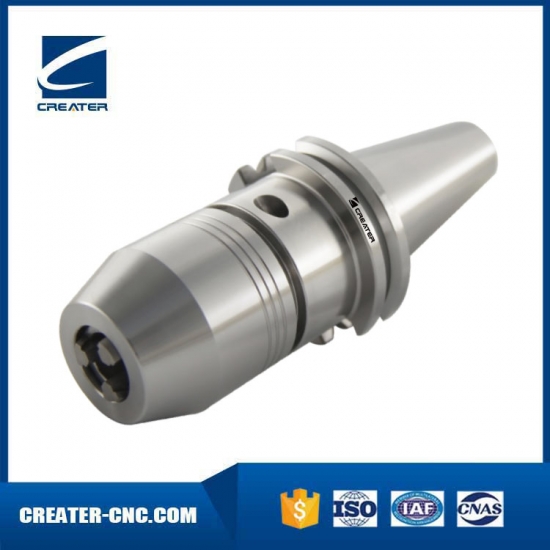

DIN 69871 SK Precision Drill Chuck Holder
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Precision Drill Chuck Holder

SK-CPU Drill chuck ,worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy. Runout reach 0.05mm. The claw use Nitriding process increase the wear resistance and longer tool life

1)worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy

2)Runout reach 0.05mm

3)Claw use Nitriding Porcess

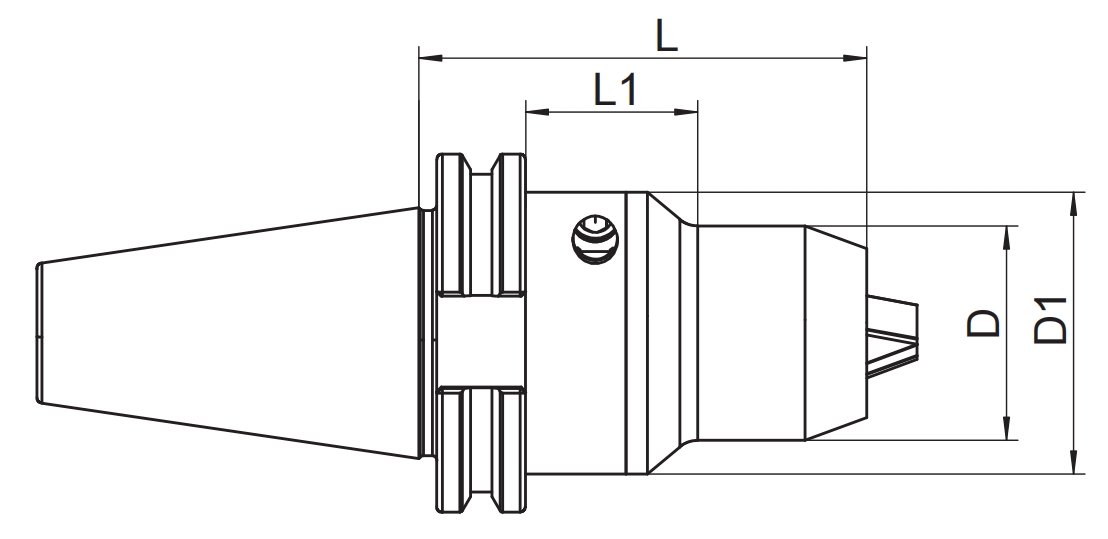

Size D D1 L L1 Capacity
SK40-CPU10-80 38 50 80 28.9 1-10
SK40-CPU13-90 50 - 90 - 1-13
SK40-CPU16-90 50 - 90 - 1-16
SK50-CPU13-100 50 - 100 - 1-13
SK50-CPU16-100 50 - 100 - 1-16
