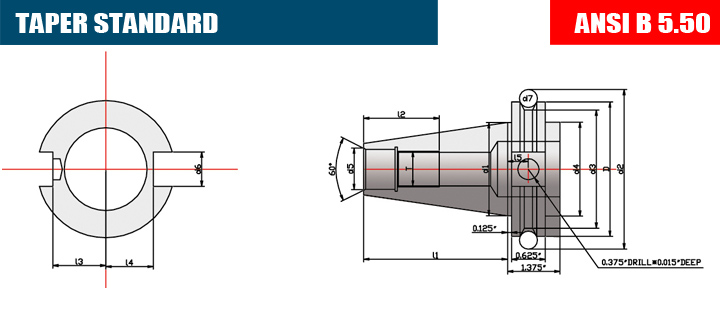

| Model | D | d1 | d2 | d3 | d4 | d5 | d6 | d7 | l1 | l2 | l3 | l4 | l5 | T |
| CAT30 | 1.812 | 1.25 | 2.176 | 1.531 | 1.25 | 0.516 | 0.645 | 0.2813 | 1.875 | 0.188 | 0.735 | 0.64 | 0.44 | 1/2-12 |
| CAT40 | 2.500 | 1.75 | 2.863 | 2.219 | 1.75 | 0.641 | 0.645 | 0.2813 | 2.687 | 0.188 | 0.985 | 0.89 | 0.44 | 5/8-11 |
| CAT50 | 3.875 | 2.75 | 4.238 | 3.594 | 2.75 | 1.031 | 1.020 | 0.2813 | 4.000 | 0.250 | 1.485 | 1.39 | 0.44 | 1-8 |
CAT40, CAT50 Tool Holders are mainly used in US and Canada. CAT40 Collet Chucks are the most widely used products.
-
ANSI B5.50 Alignment Tool for ATC Arm
-
ANSI B5.50 Test Arbor
-
ANSI B5.50 Boring Bar Blank
-
ANSI B5.50 UM Adjustable Tool Holder
-
ANSI B5.50 Runout Adjustable Flange Adapter
-
ANSI B5.50 Screw-in Milling Cutter Holder
SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience
-
ANSI B5.50 Screw-in Milling Cutter Holder
SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience
-
ANSI B5.50 Precision Drill Chuck Holder
CAT-CPU Drill chuck ,worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy. Runout reach 0.05mm. The claw use Nitriding process increase the wear resistance and longer tool life
1)worm and gear structure greatly increase the clamping power. integral structure increase the rigidity and accuracy
2)Runout reach 0.05mm
3)Claw use Nitriding Porcess
-
ASIN 5.0 Tool Holder Adatper Sleeve
-
ANSI B5.50 ER Collet Chuck with Hex Nut
CAT-ER tool holder is a commonly used tool holder in machine tool processing. It is composed of a tool holder body and an ER collet. It is mainly used to clamp and fix straight-shank cutting tools such as drills and milling cutters machining.
1.Various specifications: ER11, ER16, ER20, ER25, ER32, ER40
2. Easy to operate
3, Wide applicability
