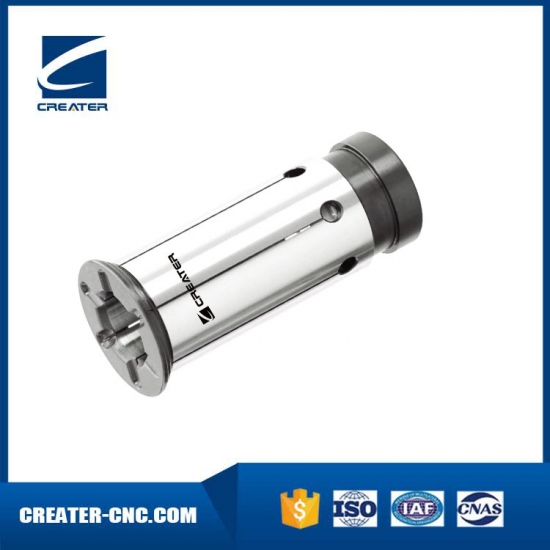

Hydraulic Collet, Coolant
/uploadfile/202410/14/41615acb4eb2624f40d2b066e9b545b1_square.jpg
Hydraulic Collet, Coolant
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

 Hydraulic Collet, Coolant

Run-out accuracy ≤ 0.003 mm
For internal coolant supply

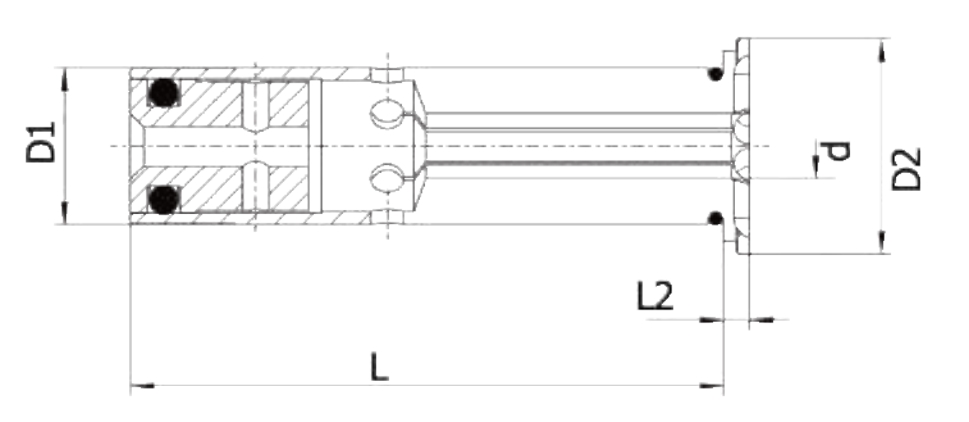

Size d D1 D2 L L2
HY12-03K 3 12 19 47 2
HY12-04K 4 12 19 47 2
HY12-05K 5 12 19 47 2
HY12-06K 6 12 19 47 2
HY12-07K 7 12 19 47 2
HY12-08K 8 12 19 47 2
HY20-03K 3 20 27 52.5 2
HY20-04K 4 20 27 52.5 2
HY20-05K 5 20 27 52.5 2
HY20-06K 6 20 27 52.5 2
HY20-07K 7 20 27 52.5 2
HY20-08K 8 20 27 52.5 2
HY20-09K 9 20 27 52.5 2
HY20-10K 10 20 27 52.5 2
HY20-11K 11 20 27 52.5 2
HY20-12K 12 20 27 52.5 2
HY20-13K 13 20 27 52.5 2
HY20-14K 14 20 27 52.5 2
HY20-15K 15 20 27 52.5 2
HY20-16K 16 20 27 52.5 2
HY32-06K 6 32 39 63.5 3
HY32-07K 7 32 39 63.5 3
HY32-08K 8 32 39 63.5 3
HY32-09K 9 32 39 63.5 3
HY32-10K 10 32 39 63.5 3
HY32-11K 11 32 39 63.5 3
HY32-12K 12 32 39 63.5 3
HY32-13K 13 32 39 63.5 3
HY32-14K 14 32 39 63.5 3
HY32-15K 15 32 39 63.5 3
HY32-16K 16 32 39 63.5 3
HY32-17K 17 32 39 63.5 3
HY32-18K 18 32 39 63.5 3
HY32-19K 19 32 39 63.5 3
HY32-20K 20 32 39 63.5 3
HY32-21K 21 32 39 63.5 3
HY32-22K 22 32 39 63.5 3
HY32-23K 23 32 39 63.5 3
HY32-24K 24 32 39 63.5 3
HY32-25K 25 32 39 63.5 3





High precision 0.003mm
Better anti-vibration result
High precision machining
