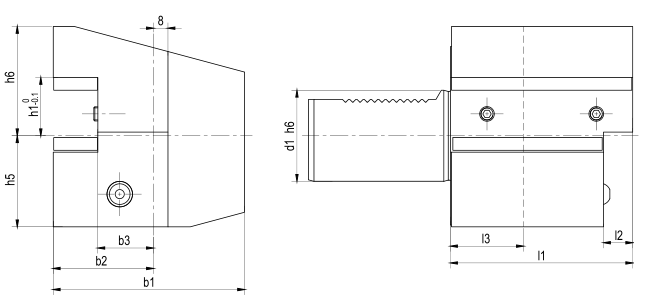

- Simple figure
- Precautions

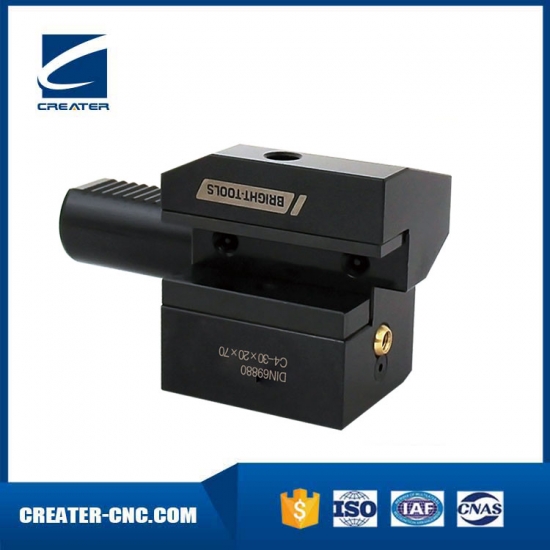

China Axial Holder Form C4 Inverted Left CNC Tool Holders Adapter
Place of origion: China( Mainland), Shgandong
Brand Name: Bright-tools
Tool Holder Standard: DIN69880
Metric
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C4-16x12x44
16
43
24
13
12
20
22
44
5
20
C4-20x16x50
20
65
40
26
16/12
25
30
50
-
30
C4-25x16x55
25
58
33
19
16/12
25
30
55
7
20
C4-30x20x70
30
76
41
23
20/16
35
38
70
10
30
C4-40x25x85
40
90
47.5
25.5
25/20
42.5
48
85
12.5
30
C4-50x32x100
50
105
55
30.5
32/25
50
60
100
16
40
C4-60x32x125
60
125
62.5
33
32/25
62.5
62.5
125
16
40
C4-80x40x160
80
160
78
42
40/32
80
80
160
20
40
Inch
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C4-20x5/8"x50
20
65
40
26
5/8"
25
30
50
-
30
C4-30x3/4"x70
30
76
41
23
3/4"
35
38
70
10
30
C4-40x1"x85
40
90
47.5
25.5
1"
42.5
48
85
12.5
30
C4-50x1-1/4"x100
50
105
55
30.5
1-1/4"
50
60
100
16
40
C4-60x1-1/4"x125
60
125
62.5
33
1-1/4"
62.5
62.5
125
16
40
VDI is is a Quick Change Toolholding System.
VDI provides a fast and accurate way of affxing tools to the Turret;
Metric sizes can be ordered directly, Inch sizes can be make by request.
