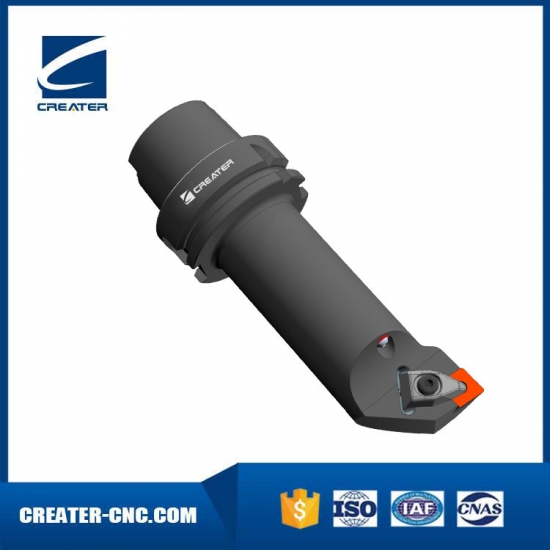

HSK63T and HSK100T Turning Toolholder for CN Style Negative Inserts
For general external turning operations
Permits use of the obtuse edge of a standard CNMG insert
Top clamp for increased security
Suitable for CN..1204 and CN.1606 inserts
Insert clamping system: D
Insert shape code: C
Tool cutting edge angle code: L
Insert clearance angle: 0 deg.
Direction of cutting: Both right hand (R) and left hand (L) are available
Tool cutting edge angle: 95 deg.

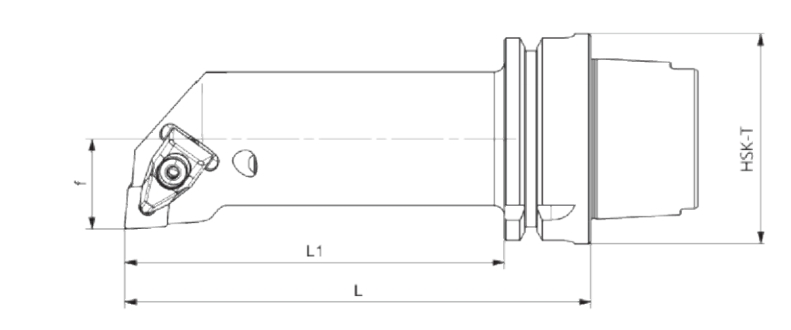

Size
f
D
L
L1
Direction
Inserts N.
HSK63T-DCLNR-27140-12
27
50
140
114
R
CN..1204..
HSK63T-DCLNL-27140-12
27
50
140
114
L
CN..1204..
HSK63T-DCLNR-27180-12
27
50
180
154
R
CN..1204..
HSK63T-DCLNL-27180-12
27
50
180
154
L
CN..1204..
HSK100T-DCLNR-27150-12
27
50
150
121
R
CN..1204..
HSK100T-DCLNL-27150-12
27
50
150
121
L
CN..1204..
HSK100T-DCLNR-27200-12
27
50
200
171
R
CN..1204..
HSK100T-DCLNL-27200-12
27
50
200
171
L
CN..1204..
HSK100T-DCLNR-35150-12
35
63
150
121
R
CN..1204..
HSK100T-DCLNL-35150-12
35
63
150
121
L
CN..1204..
HSK100T-DCLNR-35200-12
35
63
200
171
R
CN..1204..
HSK100T-DCLNL-35200-12
35
63
200
171
L
CN..1204..
