HSK-T Turning Tool DCMNN 50°/80°/50°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

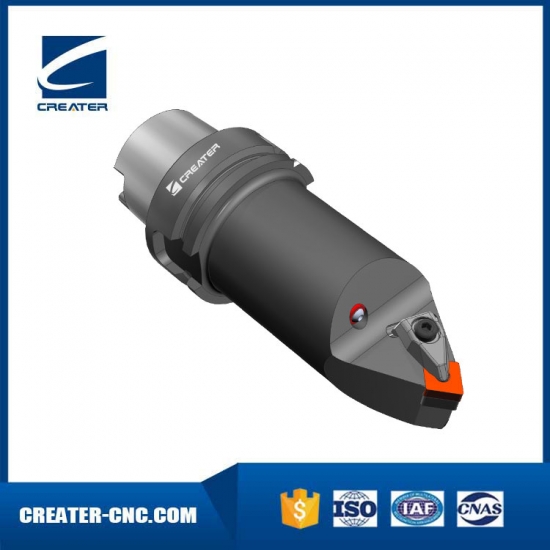

HSK63T and HSK100T Turning Tool Holder for CN Style Negative Inserts
For general external turning operations
Permits use of the obtuse edge of a standard CNMG insert
Clamping inserts with center hole
Suitable for CN..1204 and CN.1606 inserts
Insert clamping system: D
Insert shape code: C
Tool cutting edge angle code: M
Insert clearance angle: N
Direction of cutting code: N
Tool cutting edge angle: 50 deg.
| Size | L | Direction | Inserts N. |
| HSK63T-DCMNN-100-12 | 100 | N | CN..1204.. |
| HSK63T-DCMNN-130-12 | 130 | N | CN..1204.. |
| HSK63T-DCMNN-100-16 | 100 | N | CN..1606.. |
| HSK63T-DCMNN-130-16 | 130 | N | CN..1606.. |
| HSK100T-DCMNN-125-12 | 125 | N | CN..1204.. |
| HSK100T-DCMNN-125-16 | 125 | N | CN..1606.. |
