HSK·T Turning Tools for External and Facing
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

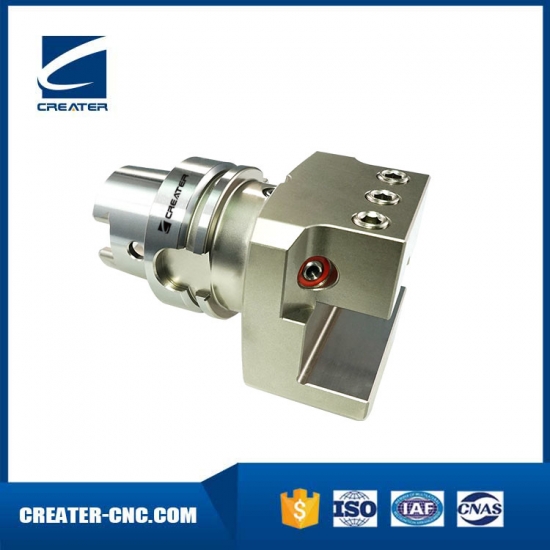

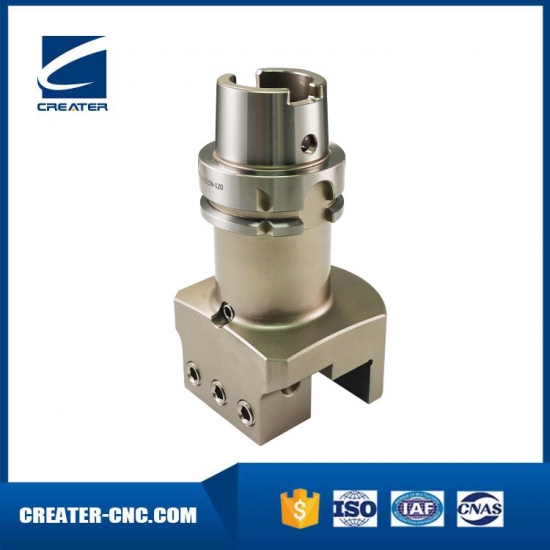

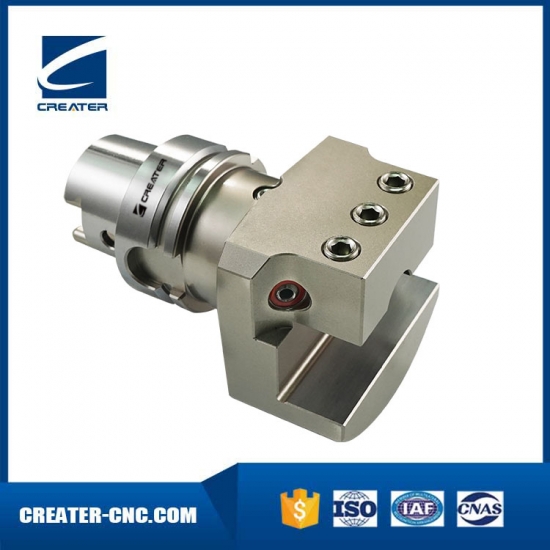

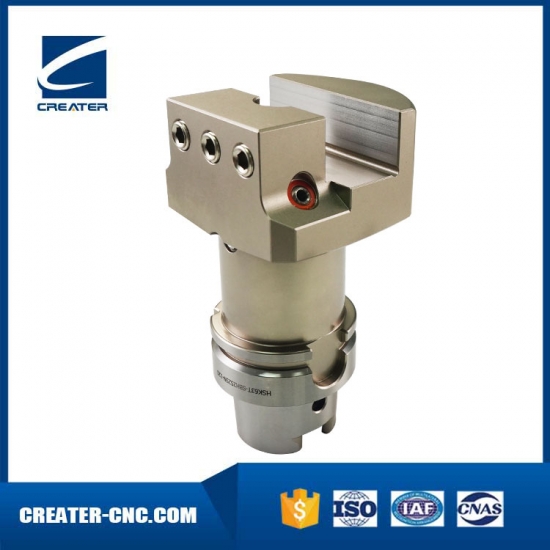

HSK-T SBH square turning tool holders are for radial direction, it is mainly for facing operation, with adjustable cooling nozzles. And it is designed for a double side, which means both for right and left-hand operation.

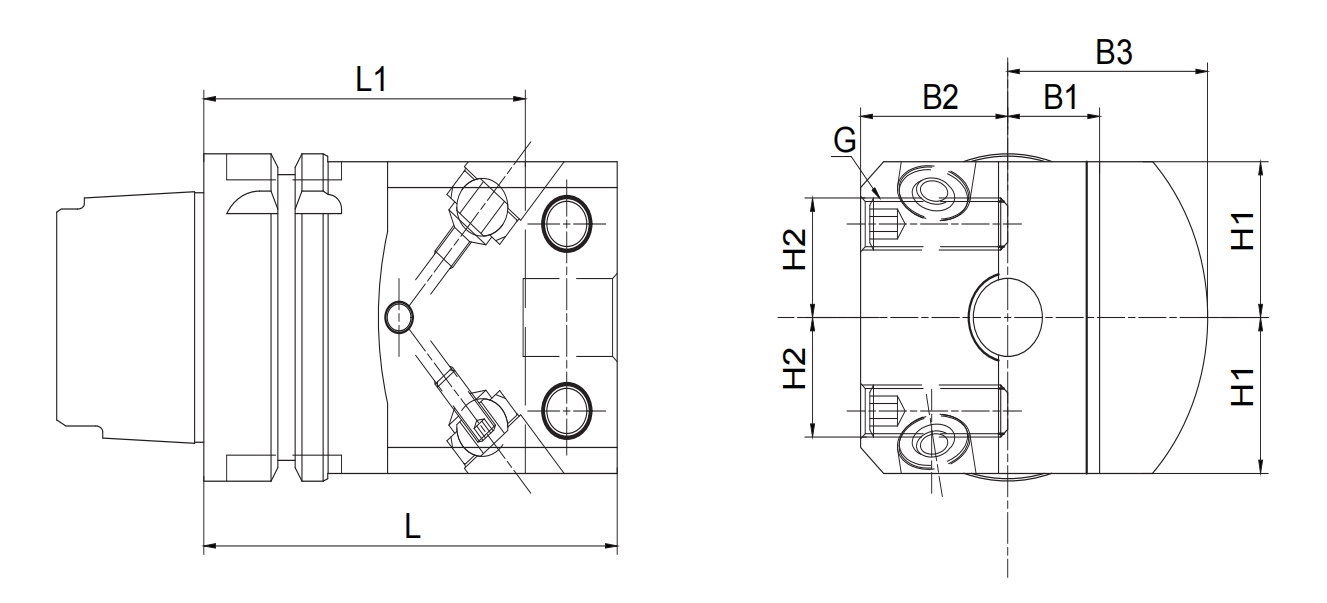

| Size | L | L1 | B1 | B2 | B3 | H1 | H2 | G | Kg |
| HSK50T-SBH2020N-100 | 100 | 80 | 20 | 25 | 43.5 | 27.5 | － | M10 | 1.8 |
| HSK50T-SBH2020N-130 | 130 | 110 | 20 | 25 | 43.5 | 27.5 | － | M10 | 2.3 |
| HSK63T-SBH2020N-100 | 100 | 80 | 20 | 32 | 43.5 | 30 | － | M10 | 2.5 |
| HSK63T-SBH2525N-90 | 100 | 75 | 25 | 32 | 53 | 40.5 | 29.5 | M12 | 3 |
| HSK63T-SBH2525N-120 | 120 | 105 | 25 | 32 | 53 | 40.5 | 29.5 | M12 | 3.7 |
| HSK100T-SBH2525N-115 | 115 | 90 | 25 | 32 | 59 | 48 | 37 | M12 | 6.1 |
| HSK100T-SBH2525N-160 | 160 | 135 | 25 | 32 | 59 | 48 | 37 | M12 | 8.9 |
| HSK100T-SBH3232N-115 | 115 | 85 | 32 | 40 | 68.5 | 57 | 43 | M14 | 7.4 |
