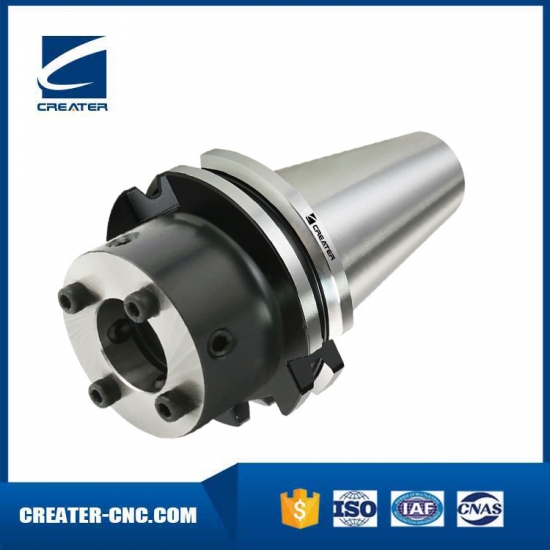

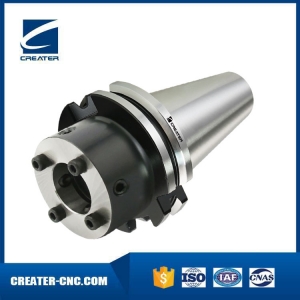

DIN 69871 SKRunout Adjustable Flange Adapter
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Runout Adjustable Flange Adapter

Flange tool holders need to be used in conjunction with flange cutters.

The flange holder can adjust the tool to within 1u jump through the handle screw.

Generally used in the manufacture of high precision machining industries such as automobiles/aerospace

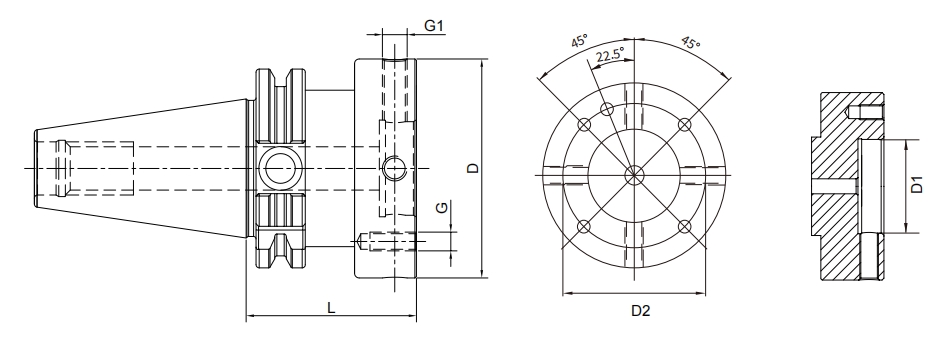

Size D L G G1
SK30-MOD060-050 60 50 M5 M8x1
SK30-MOD070-050 70 50 M6 M8x1
SK40-MOD060-050 60 50 M5 M8x1
SK40-MOD070-050 70 50 M6 M8x1
SK40-MOD080-055 80 55 M6 M8x1
SK40-MOD100-060 100 60 M8 M10x1
SK50-MOD060-050 60 50 M5 M8x1
SK50-MOD070-050 70 50 M6 M8x1
SK50-MOD080-050 80 50 M6 M8x1
SK50-MOD100-060 100 60 M8 M10x1
SK50-MOD117-060 117 60 M8 M10x1
SK50-MOD140-060 140 60 M10 M10x1
