Shrink Fit ER Collet

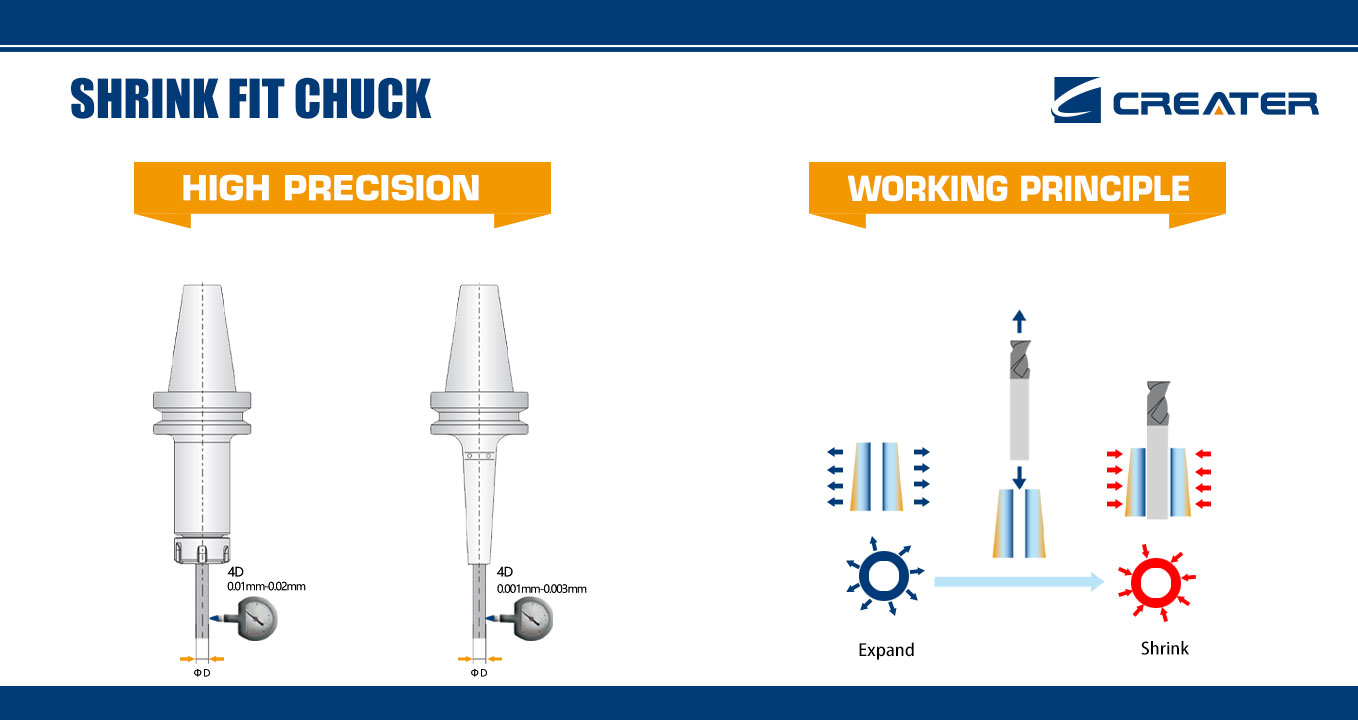

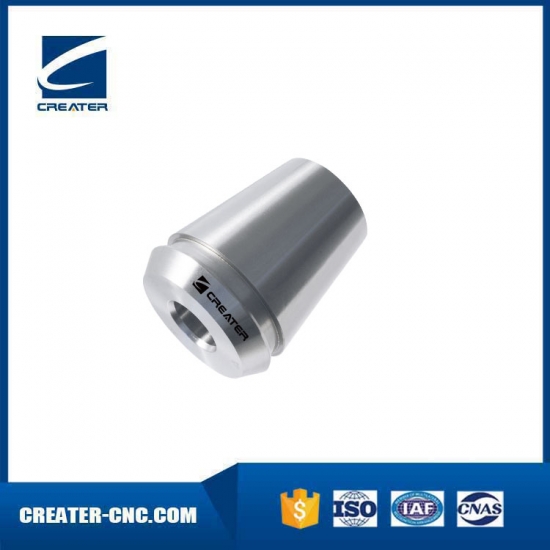

shrink fit collets adapter is used for collet chuck, driven tool holders, direct clamping in the machine spindl. The tool is clamped precisely in the centre of the clamping bore, meaning that it runs true and when shrunk in, it forms a stable unit with the Shrink fit collet. The short and rigid clamping enables high precision at higher cutting speeds and reduces the wear on the cutting tool dramatically.

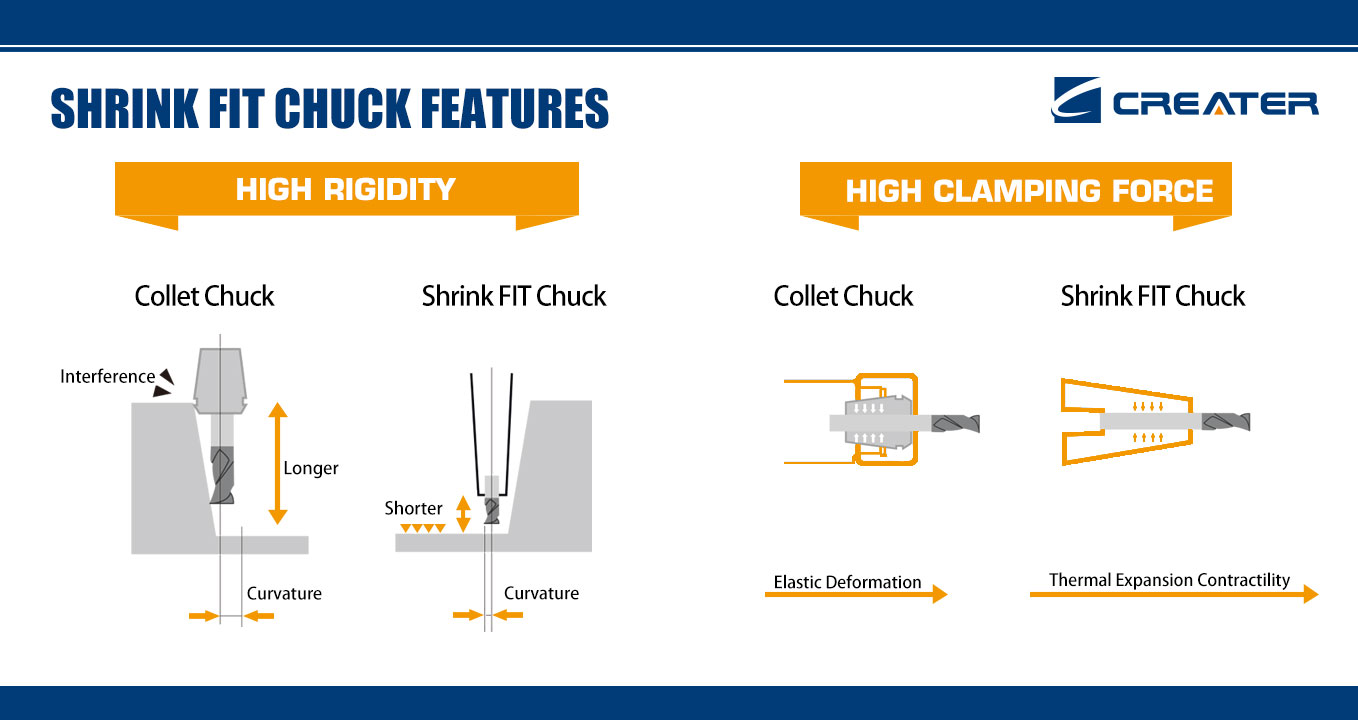

1.very high transmittable torque, Highest possible run-out and repeatability accuracy. 2.Maximum holding forces, Increase in service life of cutting tools up to 300%
3.low-wear monoblock properties

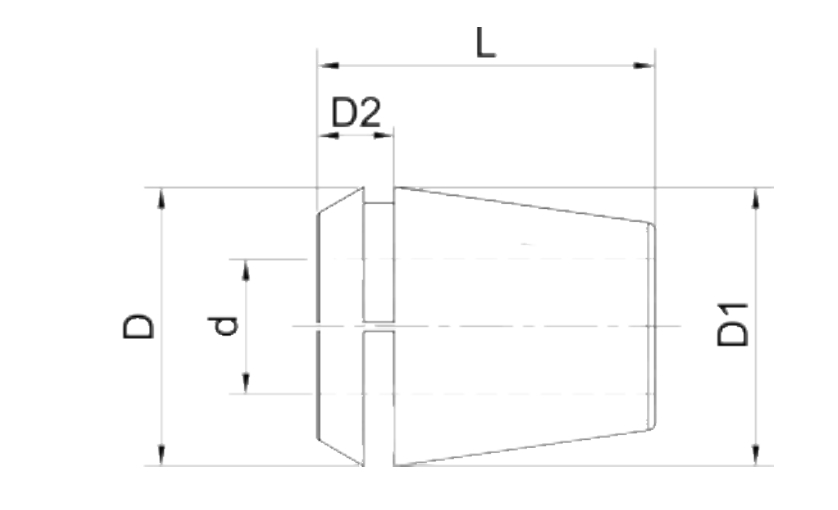

Size | Collet Size | d | D1 | A | L |
ER16-SF03 | ER16 | 3 | 16 | 6.7 | 27.5 |
ER16-SF04 | ER16 | 4 | 16 | 6.7 | 27.5 |
ER16-SF05 | ER16 | 5 | 16 | 6.7 | 27.5 |
ER16-SF06 | ER16 | 6 | 16 | 6.7 | 27.5 |
ER16-SF08 | ER16 | 8 | 16 | 6.7 | 27.5 |
ER16-SF10 | ER16 | 10 | 16 | 6.7 | 27.5 |
ER20-SF03 | ER20 | 3 | 20 | 7.52 | 31.5 |
ER20-SF04 | ER20 | 4 | 20 | 7.52 | 31.5 |
ER20-SF05 | ER20 | 5 | 20 | 7.52 | 31.5 |
ER20-SF06 | ER20 | 6 | 20 | 7.52 | 31.5 |
ER20-SF08 | ER20 | 8 | 20 | 7.52 | 31.5 |
ER20-SF10 | ER20 | 10 | 20 | 7.52 | 31.5 |
ER20-SF12 | ER20 | 12 | 20 | 7.52 | 31.5 |
ER25-SF03 | ER25 | 3 | 25 | 8 | 34 |
ER25-SF04 | ER25 | 4 | 25 | 8 | 34 |
ER25-SF05 | ER25 | 5 | 25 | 8 | 34 |
ER25-SF06 | ER25 | 6 | 25 | 8 | 34 |
ER25-SF08 | ER25 | 8 | 25 | 8 | 34 |
ER25-SF10 | ER25 | 10 | 25 | 8 | 34 |
ER25-SF12 | ER25 | 12 | 25 | 8 | 34 |
ER25-SF14 | ER25 | 14 | 25 | 8 | 34 |
ER25-SF16 | ER25 | 16 | 25 | 8 | 34 |
ER32-SF03 | ER32 | 3 | 32 | 9 | 40 |
ER32-SF04 | ER32 | 4 | 32 | 9 | 40 |
ER32-SF05 | ER32 | 5 | 32 | 9 | 40 |
ER32-SF06 | ER32 | 6 | 32 | 9 | 40 |
ER32-SF08 | ER32 | 8 | 32 | 9 | 40 |
ER32-SF10 | ER32 | 10 | 32 | 9 | 40 |
ER32-SF12 | ER32 | 12 | 32 | 9 | 40 |
ER32-SF14 | ER32 | 14 | 32 | 9 | 40 |
ER32-SF16 | ER32 | 16 | 32 | 9 | 40 |
ER32-SF18 | ER32 | 18 | 32 | 9 | 40 |
ER32-SF20 | ER32 | 20 | 32 | 9 | 40 |
