DIN69871 Hydraulic Chuck,Standard Tool,Suppliers,Manufacturers,Wholesalers

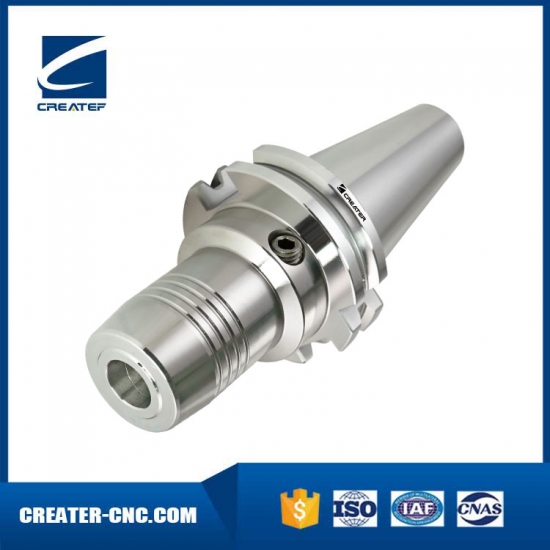

SK Hydraulic chucks are effective for reaming, drilling, threading and light milling with end mills at high spindle speeds. They use oil pressure to compress an internal membrane within the holder body, uniformly applying high pressure to grip 360° around the tool shank. This holds cutting tools with a low and repeatable runout of maximum 3 µm at 3xD (maximum 6µm at 3xD for cylindrical shanks).

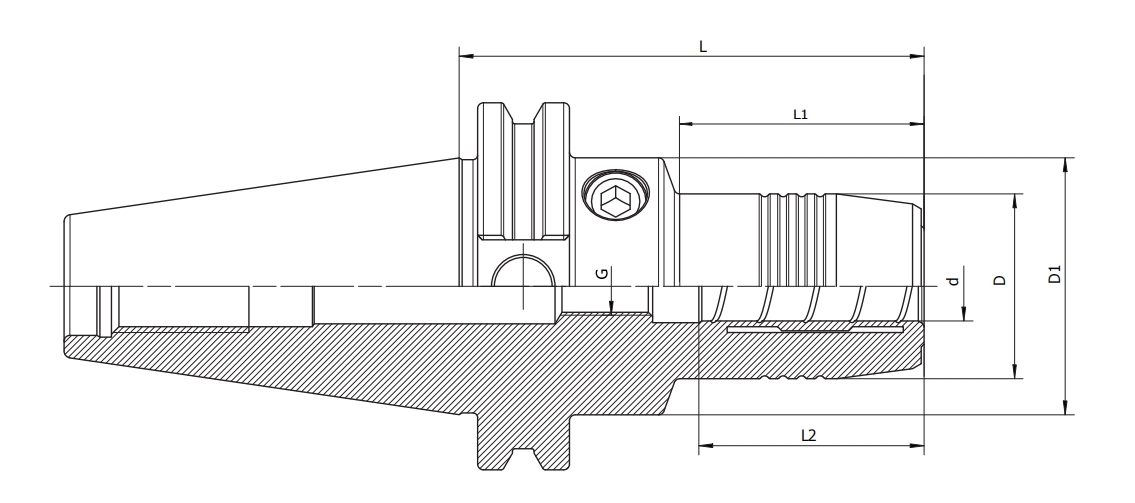

Size	d	D	D1	L	L1	L2	G
SK30-HY06-70	6	26	45	70	20	27	M5
SK30-HY08-70	8	28	45	70	20	27	M6
SK30-HY10-75	10	30	45	75	21	32	M8x1
SK30-HY12-85	12	32	44.5	85	44	39	M10x1
SK30-HY14-85	14	34	45	85	22	37	M10x1
SK30-HY16-90	16	38	45	90	50	42	M6
SK30-HY18-90	18	40	45	90	50	42	M10x1
SK30-HY20-90	20	42	45	90	50	44	M6

SK40-HY06-65	6	26	44.5	65	42	30	M5
SK40-HY08-65	8	28	49.5	65	30	27	M6
SK40-HY10-65	10	30	49.5	65	31	32	M8x1
SK40-HY12-65	12	32	44.5	65	43	39	M10x1
SK40-HY16-65	16	38	49.5	65	33	42	M12x1
SK40-HY20-65	20	42	49	65	44	44	M10x1

SK40-HY06-80.5	6	26	44.5	80.5	42	30	M5
SK40-HY08-80.5	8	28	49.5	80.5	30	27	M6
SK40-HY10-80.5	10	30	49.5	80.5	31	32	M8x1
SK40-HY12-80.5	12	32	44.5	80.5	43	39	M10x1
SK40-HY16-80.5	16	38	49.5	80.5	33	42	M12x1
SK40-HY20-80.5	20	42	49	80.5	44	44	M10x1
SK40-HY25-80.5	25	57	68	80.5	26	50	M16x1
SK40-HY32-80.5	32	64	80	80.5	24	54	M16x1

SK40-HY06-110	6	26	44.5	110	71.5	30	M5
SK40-HY08-110	8	28	44.5	110	71.5	30	M6
SK40-HY10-110	10	30	44.5	110	72	34	M8x1
SK40-HY12-110	12	32	44.5	110	72.5	39	M10x1
SK40-HY16-110	16	38	50	110	72.5	42	M12x1
SK40-HY20-110	20	42	50	110	73	44	M16x1

SK50-HY06-80.5	6	26	50	80.5	39.5	30	M5
SK50-HY08-80.5	8	28	49.5	80.5	30	27	M6
SK50-HY10-80.5	10	30	50	80.5	40	34	M8x1
SK50-HY12-80.5	12	32	49.5	80.5	40.5	39	M10x1
SK50-HY16-80.5	16	38	49.5	80.5	40	42	M12x1
SK50-HY20-80.5	20	42	50	80.5	44	44	M16x1
SK50-HY25-80.5	25	57	70	80.5	43	50	M16x1
SK50-HY32-80.5	32	64	70	80.5	44	54	M16x1

SK50-HY06-110	6	26	49.5	110	30	27	M5
SK50-HY08-110	8	28	49.5	110	30	27	M6
SK50-HY10-110	10	30	49.5	110	32	32	M8x1
SK50-HY12-110	12	32	49.5	110	35	37	M10x1
SK50-HY16-110	16	38	49.5	110	40	42	M12x1
SK50-HY20-110	20	42	50	110	44	44	M16x1

SK50-HY06-150	6	26	49.5	150	30	27	M5
SK50-HY08-150	8	28	49.5	150	30	27	M6
SK50-HY10-150	10	30	49.5	150	32	32	M8x1
SK50-HY12-150	12	32	49.5	150	35	37	M10x1
SK50-HY16-150	16	38	49.5	150	40	42	M12x1
SK50-HY20-150	20	42	50	150	44	44	M16x1

High precision 0.003mm
Better anti-vibration result
High precision machining
