Products
Weldon Holder
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 25 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

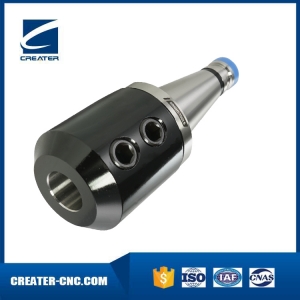

DIN 2080 NT Sidelock End Mill Tool Holder DIN 6359/1835B (Weldon)
Runout: <0.005mm
Taper Torlerabce: <AT3
Surface Treatment: Blackening
Weldon End Mill Hoder Application: WELDON HOLDER is for clamping cutters with straight shank and inclined flat of DIN1835-B and DIN6535-HB.

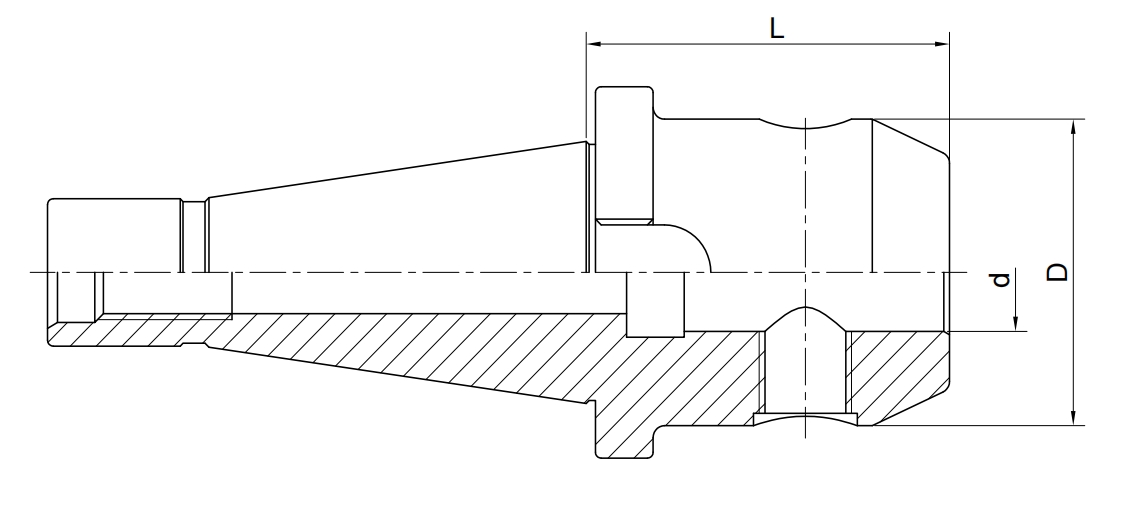

| Size | d | D | L | M | Screw Quantity |
| NT30-SLA06-40 | 6 | 25 | 40 | M6 | 1 |
| NT30-SLA08-40 | 8 | 28 | 40 | M8 | 1 |
| NT30-SLA10-40 | 10 | 35 | 40 | M10 | 1 |
| NT30-SLA12-40 | 12 | 42 | 40 | M12 | 1 |
| NT30-SLA16-50 | 16 | 48 | 50 | M14 | 1 |
| NT30-SLA18-50 | 18 | 50 | 50 | M14 | 1 |
| NT30-SLA20-63 | 20 | 52 | 63 | M16 | 1 |
| NT40-SLA06-50(OTT) | 6 | 25 | 50 | M6 | 1 |
| NT40-SLA08-50(OTT) | 8 | 28 | 50 | M8 | 1 |
| NT40-SLA10-50(OTT) | 10 | 35 | 50 | M10 | 1 |
| NT40-SLA12-50(OTT) | 12 | 42 | 50 | M12 | 1 |
| NT40-SLA14-50(OTT) | 14 | 44 | 50 | M12 | 1 |
| NT40-SLA16-63(OTT) | 16 | 48 | 63 | M14 | 1 |
| NT40-SLA18-63(OTT) | 18 | 50 | 63 | M14 | 1 |
| NT40-SLA20-63(OTT) | 20 | 52 | 63 | M16 | 1 |
| NT40-SLA25-80(OTT) | 25 | 65 | 80 | M18*2 | 2 |
| NT40-SLA32-80(OTT) | 32 | 72 | 80 | M20*2 | 2 |
| NT40-SLA40-90(OTT) | 40 | 80 | 90 | M20*2 | 2 |
| NT50-SLA06-63(OTT) | 6 | 25 | 63 | M6 | 1 |
| NT50-SLA08-63(OTT) | 8 | 28 | 63 | M8 | 1 |
| NT50-SLA10-63(OTT) | 10 | 35 | 63 | M10 | 1 |
| NT50-SLA12-63(OTT) | 12 | 42 | 63 | M12 | 1 |
| NT50-SLA14-63(OTT) | 14 | 44 | 63 | M12 | 1 |
| NT50-SLA16-63(OTT) | 16 | 48 | 63 | M14 | 1 |
| NT50-SLA18-63(OTT) | 18 | 50 | 63 | M14 | 1 |
| NT50-SLA20-63(OTT) | 20 | 52 | 63 | M16 | 1 |
| NT50-SLA25-80(OTT) | 25 | 65 | 80 | M18*2 | 2 |
| NT50-SLA32-80(OTT) | 32 | 72 | 80 | M20*2 | 2 |
| NT50-SLA40-90(OTT) | 40 | 80 | 90 | M20*2 | 2 |
