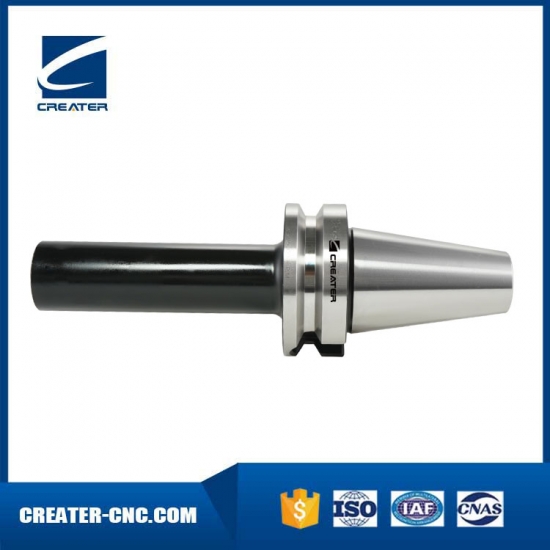

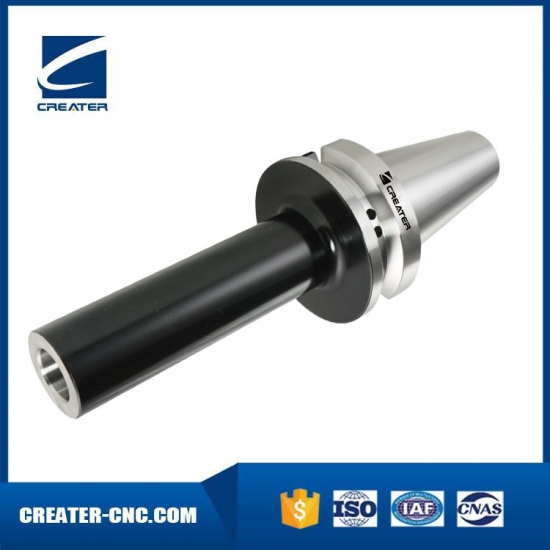

Screw-in Milling Holder
MAS403 BT SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange
1. High precision
2. High rigidity, improving quality and reducing consumption.
3. Improve efficiency.
4. Convenience

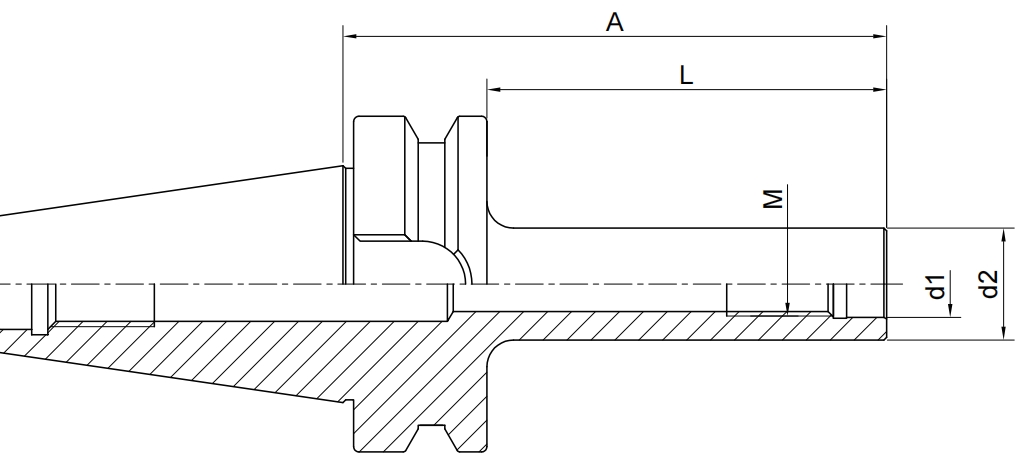

| Size |
M |
d1 |
d2 |
A |
L |
| BT40-M10-102 L=75 |
10 |
10.5 |
18 |
102 |
75 |
| BT40-M10-127 L=100 |
10 |
10.5 |
18 |
127 |
100 |
| BT40-M10-177 L=150 |
10 |
10.5 |
18 |
177 |
150 |
| BT40-M12-102 L=75 |
12 |
12.5 |
21 |
102 |
75 |
| BT40-M12-127 L=100 |
12 |
12.5 |
21 |
127 |
100 |
| BT40-M12-152 L=125 |
12 |
12.5 |
21 |
152 |
125 |
| BT40-M12-177 L=150 |
12 |
12.5 |
21 |
177 |
150 |
| BT40-M16-102 L=75 |
16 |
17 |
29 |
102 |
75 |
| BT40-M16-127 L=100 |
16 |
17 |
29 |
127 |
100 |
| BT40-M16-152 L=125 |
16 |
17 |
29 |
152 |
125 |
| BT40-M16-177 L=150 |
16 |
17 |
29 |
177 |
150 |
|
|
|
|
|
|
| BT50-M10-138 L=100 |
10 |
10.5 |
18 |
138 |
100 |
| BT50-M10-188 L=150 |
10 |
10.5 |
18 |
188 |
150 |
| BT50-M12-138 L=100 |
12 |
12.5 |
21 |
138 |
100 |
| BT50-M12-188 L=150 |
12 |
12.5 |
21 |
188 |
150 |
| BT50-M16-138 L=100 |
16 |
17 |
29 |
138 |
100 |
| BT50-M16-188 L=150 |
16 |
17 |
29 |
188 |
150 |
|
|
|
|
|
|
