Products
APU Drill Chuck Arbor
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | QINGDAO |
| Lead Time: | 20-30days |
| Payment: | TT |
- Specification

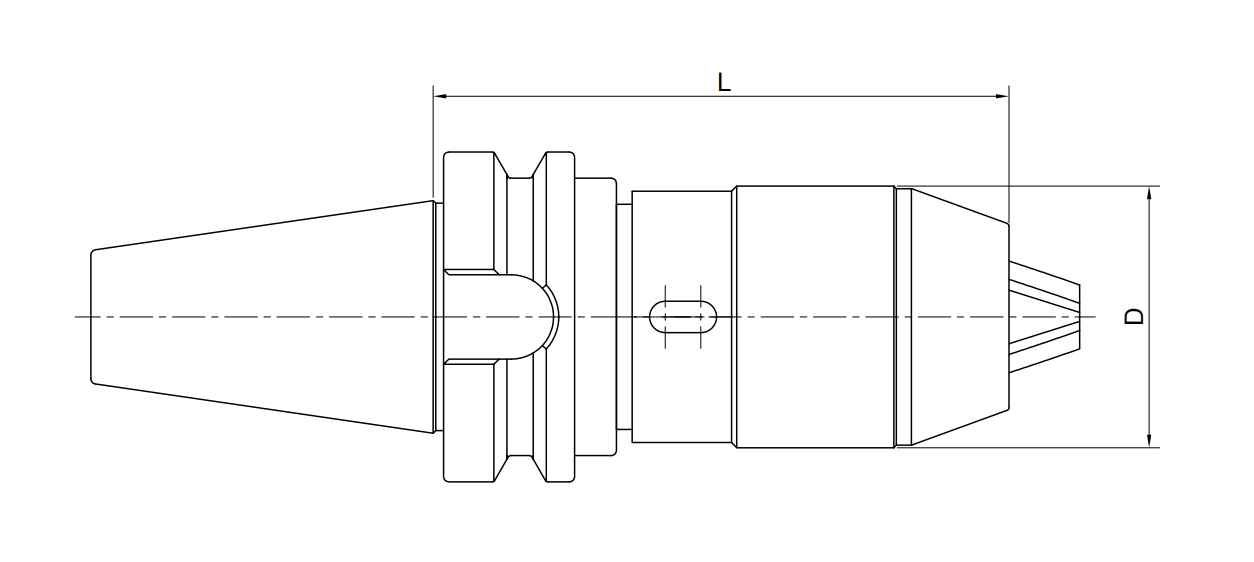

- Simple figure
- Precautions

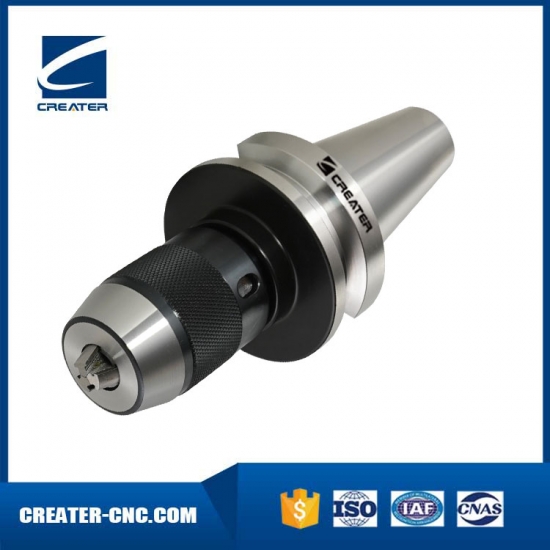

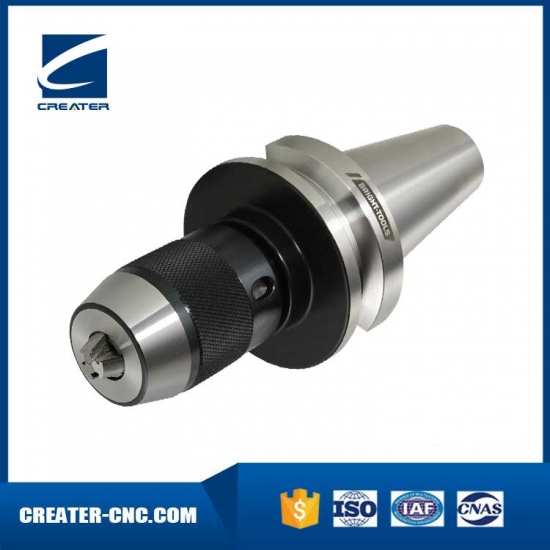

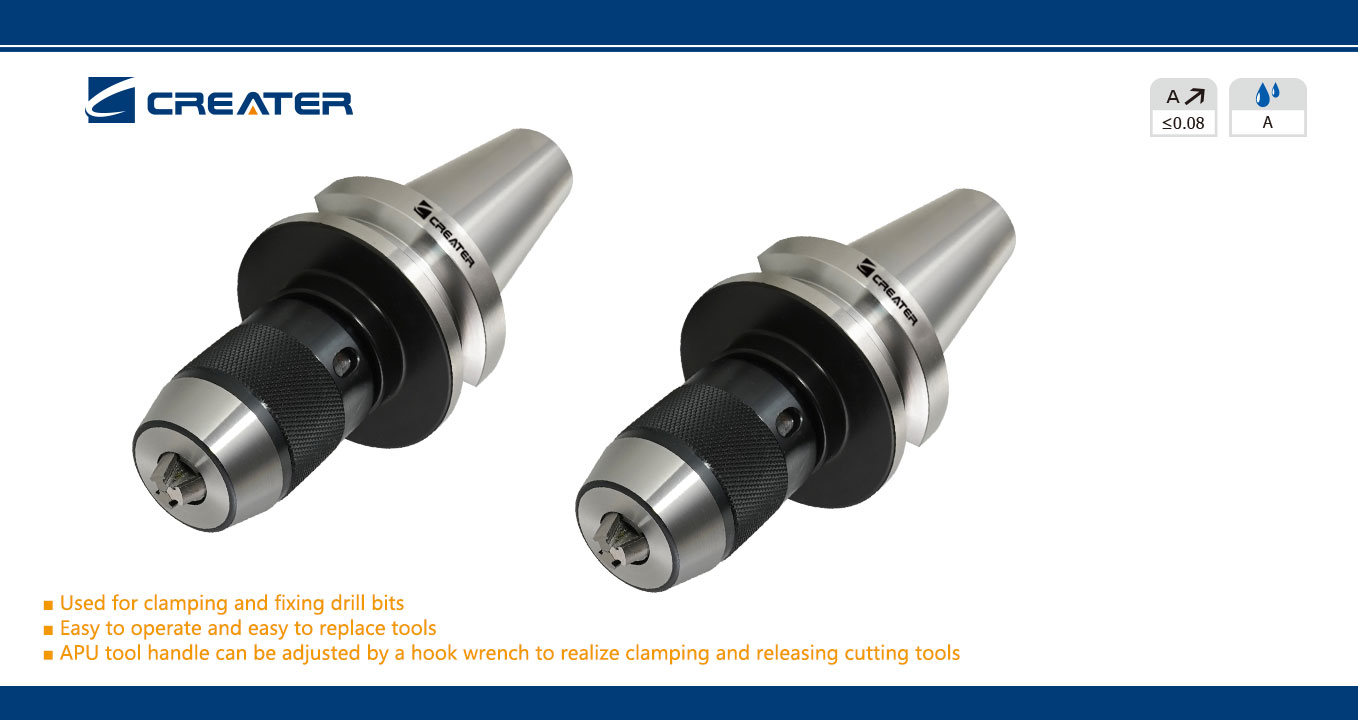

BT APU Drill Chuck Arbor
7/24Taper : AT3

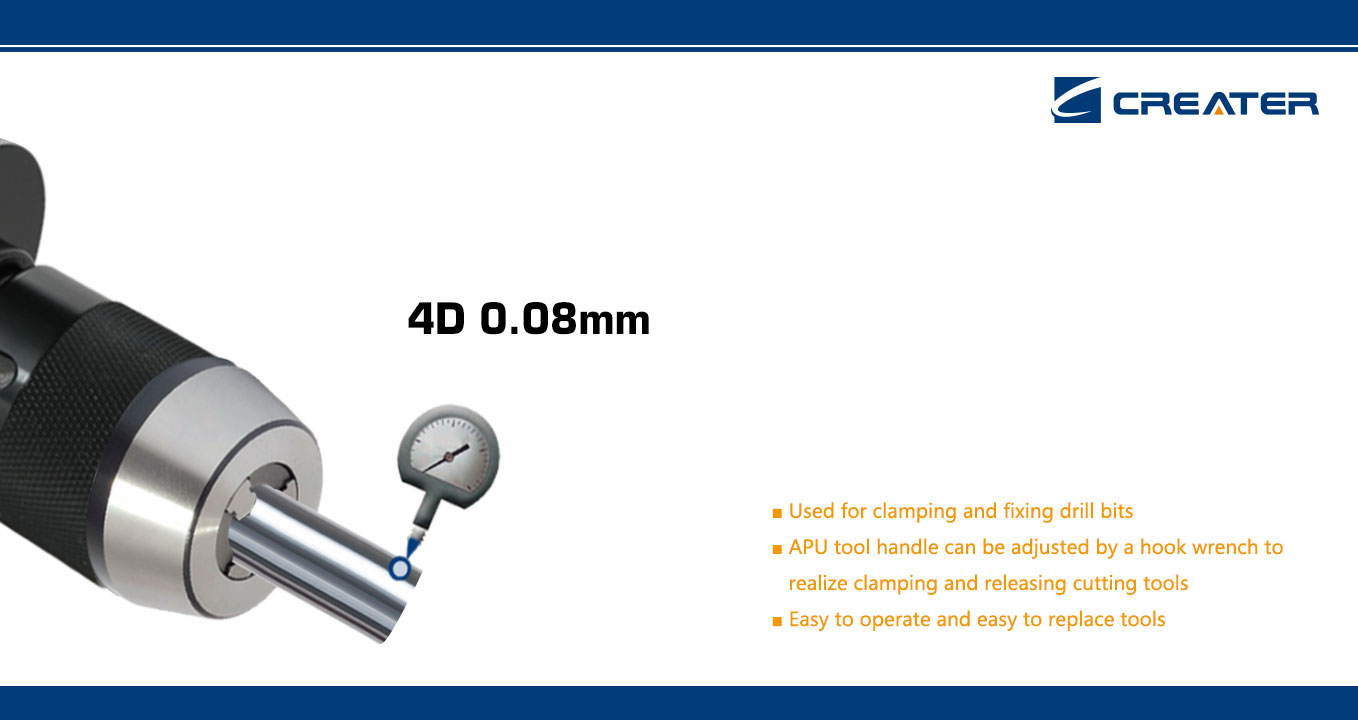

Accuracy: 0.07mm
Standard: MAS403BT, DIN69871, DIN2080, ANSI5.50
Use: For Clamping tools with straight shank
| Size | D | L | Capacity |
| BT30-APU08-80 | 36 | 80 | 1-8 |
| BT30-APU13-110 | 48 | 110 | 1-13 |
| BT40-APU08-85 | 36 | 85 | 1-8 |
| BT40-APU13-105 | 48 | 105 | 1-13 |
| BT40-APU16-110 | 53 | 110 | 3-16 |
| BT50-APU08-90 | 36 | 90 | 1-8 |
| BT50-APU13-105 | 48 | 105 | 1-13 |
| BT50-APU16-115 | 53 | 115 | 3-16 |
Previous :End Mill Holder Weldon
