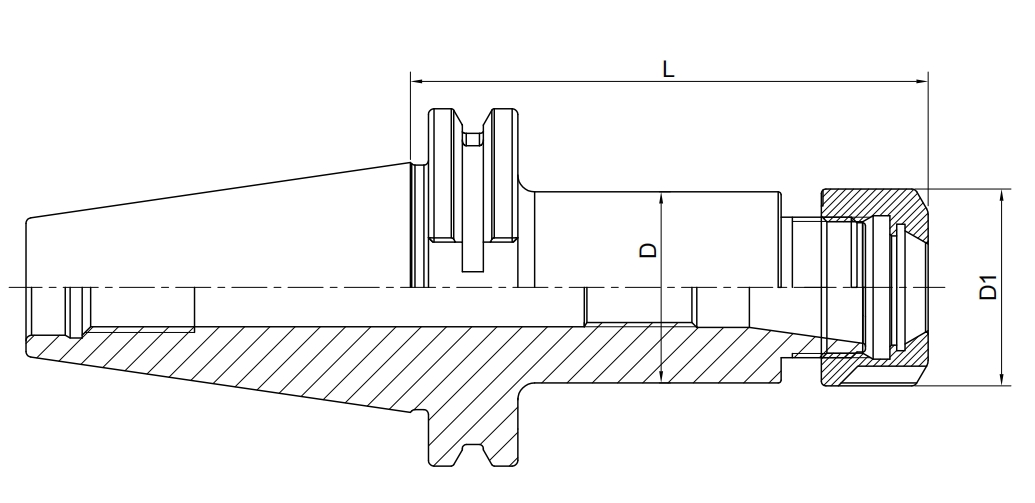

  • Simple figure
  • Precautions

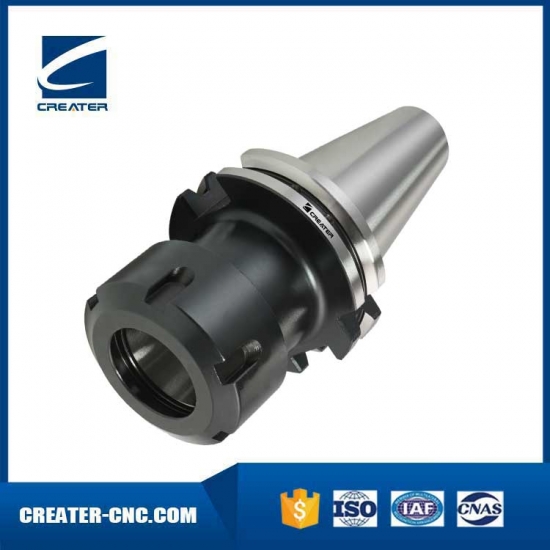

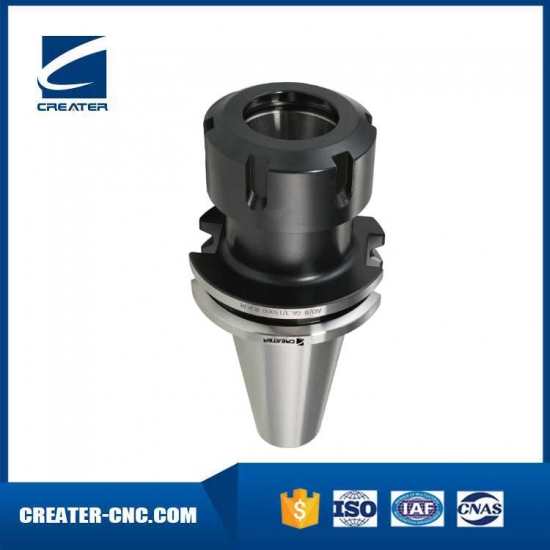

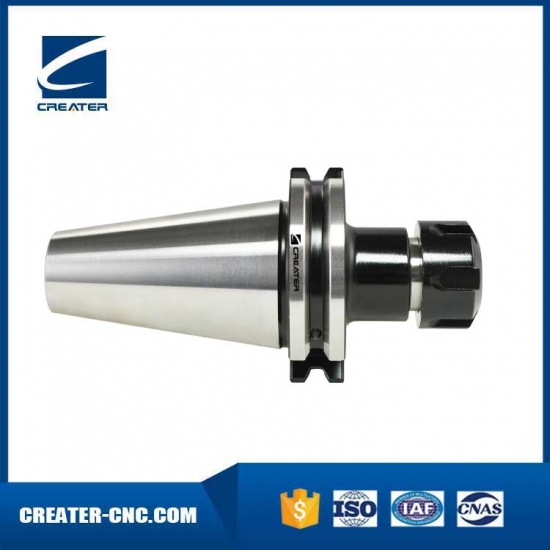

DIN 69871 ER Collet Chuck with UM Nut

SK-ER tool holder is a commonly used tool holder in machine tool processing. It is composed of a tool holder body and an ER collet. It is mainly used to clamp and fix straight-shank cutting tools such as drills and milling cutters machining.

1.Various specifications:  ER11, ER16, ER20, ER25, ER32, ER40

2. Easy to operate

3, Wide applicability



Size D D1 L Capacity
SK30-ER16UM-70 28 32 70 1-10
SK30-ER20UM-70 34 35 70 1-13
SK30-ER25-70 32 42 70 2-16
SK30-ER32-70 40 50 70 2-20
SK30-ER40-70 50 63 70 3-26
SK30-ER16UM-100 28 32 100 1-10
SK30-ER20UM-100 34 35 100 1-13
SK30-ER25-100 42 42 100 2-16
SK30-ER32-100 50 50 100 2-20
SK40-ER16UM-63 28 32 63 1-10
SK40-ER20UM-70 34 35 70 1-13
SK40-ER25-70 42 42 70 2-16
SK40-ER32-70 40 50 70 2-20
SK40-ER40-80 63 63 80 3-26
SK40-ER16UM-100 28 32 100 1-10
SK40-ER20UM-100 34 35 100 1-13
SK40-ER25-100 42 42 100 2-16
SK40-ER32-100 50 50 100 2-20
SK40-ER40-100 63 63 100 3-26
SK40-ER40-120 63 63 120 3-26
SK40-ER16UM-160 28 32 160 1-10
SK40-ER20UM-160 34 35 160 1-13
SK40-ER25-160 42 42 160 2-16
SK40-ER32-160 50 50 160 2-20
SK40-ER40-160 63 63 160 3-26
SK40-ER16UM-200 28 32 200 1-10
SK40-ER20UM-200 34 35 200 1-13
SK40-ER25-200 42 42 200 2-16
SK40-ER32-200 50 50 200 2-20
SK40-ER40-200 50 63 200 3-26
SK50-ER16UM-70 28 32 70 1-10
SK50-ER20UM-70 34 35 70 1-13
SK50-ER25-60 42 42 60 2-16
SK50-ER32-70 50 50 70 2-20
SK50-ER40-80 63 63 80 3-26
SK50-ER50-100 100 78 100 6-34
SK50-ER16UM-100 28 32 100 1-10
SK50-ER20UM-100 34 35 100 1-13
SK50-ER25-100 42 42 100 2-16
SK50-ER32-100 50 50 100 2-20
SK50-ER40-100 63 63 100 3-26
SK50-ER16UM-160 28 32 160 1-10
SK50-ER20UM-160 34 35 160 1-13
SK50-ER25-160 42 42 160 2-16
SK50-ER32-160 50 50 160 2-20
SK50-ER40-160 63 63 160 3-26
SK50-ER16UM-200 28 32 200 1-10
SK50-ER20UM-200 34 35 200 1-13
SK50-ER25-200 42 42 200 2-16
SK50-ER32-200 50 50 200 2-20
SK50-ER40-200 63 63 200 3-26
