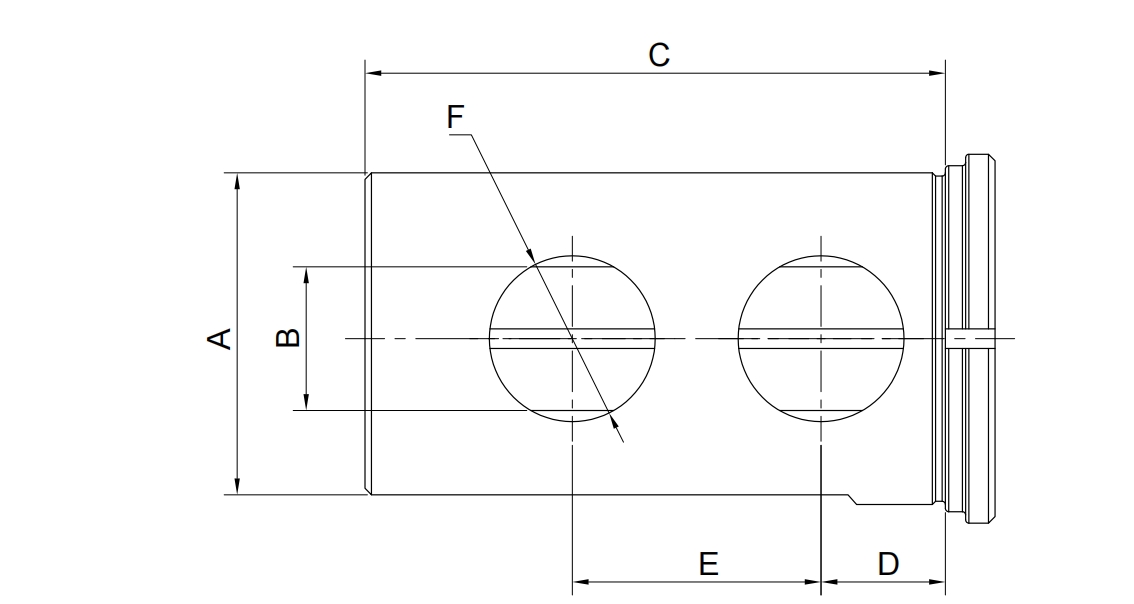

- Simple figure
- Precautions

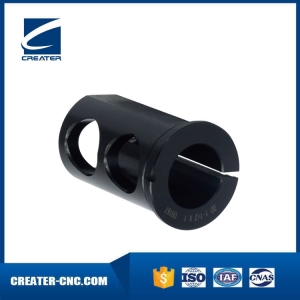

CNC VDI Bushing
DD Type
| Size | A(OD) | C(ID) | B | D | E | F | Screw Size |
| L 3/4-1/4 | 3/4 | 1/4 | 5 | 1-1/2 | 5/16 | 5/8 | 10-32 |
| DD 3/4-5/16 | 3/4 | 5/16 | 5 | 1-1/2 | 5/16 | 5/8 | 10-32 |
| DD 3/4-3/8 | 3/4 | 3/8 | 5 | 1-1/2 | 5/16 | 5/8 | 10-32 |
| DD 3/4-1/2 | 3/4 | 1/2 | 5 | 3 | 5/16 | 5/8 | 10-32 |
| DD 1-5/16 | 1 | 5/16 | 6 | 1-3/4 | 7/16 | 5/8 | 1/4-28 |
| DD 1-3/8 | 1 | 3/8 | 6 | 1-3/4 | 7/16 | 5/8 | 1/4-28 |
| DD 1-1/2 | 1 | 1/2 | 6 | 2 | 7/16 | 5/8 | 1/4-28 |
| DD 1-1/4-3/8 | 1-1/4 | 3/8 | 6-1/2 | 1-1/2 | 5/16 | 5/8 | 1/4-28 |
| DD 1-1/4-1/2 | 1-1/4 | 1/2 | 6-1/2 | 2-1/4 | 7/16 | 5/8 | 1/4-28 |
| DD 1-1/4-5/8 | 1-1/4 | 5/8 | 6-1/2 | 2-1/2 | 7/16 | 3/4 | 1/4-28 |
| DD 1-1/4-3/4 | 1-1/4 | 3/4 | 6-1/2 | 3 | 7/16 | 3/4 | 1/4-28 |
| DD 1-1/4-7/8 | 1-1/4 | 7/8 | 6-1/2 | 4 | 7/16 | 3/4 | 10-32 |
| DD 1-1/4-1 | 1-1/4 | 1 | 6-1/2 | 4 | 7/16 | 3/4 | 10-32 |
| DD 1-1/2-3/8 | 1-1/2 | 3/8 | 7 | 2 | 5/16 | 5/8 | 1/4-28 |
| DD 1-1/2-1/2 | 1-1/2 | 1/2 | 7 | 2-1/4 | 7/16 | 11/16 | 5/16-24 |
| DD 1-1/2-5/8 | 1-1/2 | 5/8 | 7 | 2-1/4 | 7/16 | 3/4 | 5/16-24 |
| DD 1-1/2-3/4 | 1-1/2 | 3/4 | 7 | 2-1/2 | 7/16 | 3/4 | 5/16-24 |
| DD 1-1/2-7/8 | 1-1/2 | 7/8 | 8 | 3 | 7/16 | 3/4 | 1/4-28 |
| DD 1-1/2-1 | 1-1/2 | 1 | 8 | 4 | 7/16 | 7/8 | 1/4-28 |
| DD 1-3/4-1/2 | 1-3/4 | 1/2 | 8 | 2-1/2 | 5/16 | 5/8 | 5/16-24 |
| DD 1-3/4-5/8 | 1-3/4 | 5/8 | 8 | 2-1/2 | 7/16 | 1 | 5/16-24 |
| DD 1-3/4-3/4 | 1-3/4 | 3/4 | 8 | 2-1/2 | 7/16 | 1 | 3/8-24 |
| DD 1-3/4-7/8 | 1-3/4 | 7/8 | 8 | 2-1/2 | 7/16 | 1 | 3/8-24 |
| DD 1-3/4-1 | 1-3/4 | 1 | 8 | 2-1/2 | 7/16 | 1 | 3/8-24 |
| Size | A(OD) | C(ID) | B | D | E | F | Screw Size |
| DD 2-5/8 | 2 | 5/8 | 9 | 2 | 7/16 | 1 | 7/16-20 |
| DD 2-3/4 | 2 | 3/4 | 9 | 2-3/4 | 7/16 | 1 | 7/16-20 |
| DD 2-7/8 | 2 | 7/8 | 9 | 2 | 7/16 | 1 | 7/16-20 |
| DD 2-1 | 2 | 1 | 9 | 3-1/2 | 7/16 | 1 | 1/2-20 |
| DD 2-1-1/4 | 2 | 1-1/4 | 9 | 3 | 5/8 | 1 | 1/2-20 |
| DD 2-1/2-5/8 | 2-1/2 | 5/8 | 10 | 3-1/2 | 7/16 | 1 | 1/2-20 |
| DD 2-1/2-3/4 | 2-1/2 | 3/4 | 10 | 3-1/2 | 7/16 | 1 | 1/2-20 |
| DD 2-1/2-1 | 2-1/2 | 1 | 10 | 4 | 7/16 | 1 | 1/2-20 |
| DD 2-1/2-1-1/4 | 2-1/2 | 1-1/4 | 10 | 4 | 5/8 | 1 | 1/2-20 |
| DD 2-1/2-1-1/2 | 2-1/2 | 1-1/2 | 10 | 3-1/2 | 1/2 | 1 | 1/2-20 |
| DD 3-1 | 3 | 1 | 11-1/2 | 4 | 1/2 | 1 | 1/2-20 |
| DD 3-1-1/4 | 3 | 1-1/4 | 11-1/2 | 3-1/2 | 1/2 | 1 | 1/2-20 |
| DD 3-1-1/2 | 3 | 1-1/2 | 11-1/2 | 4-1/2 | 1/2 | 1 | 1/2-20 |
| DD 3-1-3/4 | 3 | 1-3/4 | 11-1/2 | 3-3/4 | 5/8 | 1-1/4 | 1/2-20 |
| DD 3-2 | 3 | 2 | 11-1/2 | 4-1/2 | 1/2 | 1 | 1/2-20 |
| DD 4-1-1/2 | 4 | 1-1/2 | 14 | 3-3/4 | 19/32 | 1-7/8 | 5/8-18 |
| DD 4-1-3/4 | 4 | 1-3/4 | 14 | 3-3/4 | 5/8 | 1-7/8 | 5/8-18 |
| DD 4-2 | 4 | 2 | 14 | 3-3/4 | 19/32 | 1-3/4 | 5/8-18 |
| DD 4-2-1/2 | 4 | 2-1/2 | 14 | 4 | 5/8 | 2 | 5/8-18 |
| DD 4-3 | 4 | 3 | 14 | 4 | 3/4 | 1-1/4 | 5/8-18 |
