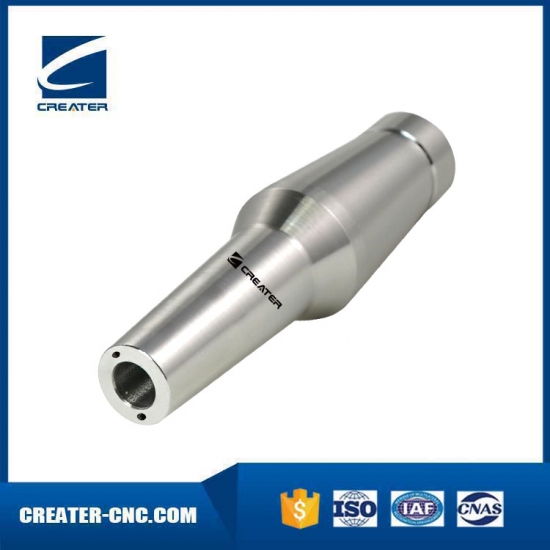

Shrink Chuck Extension,Slim
Product Origin: China
Brand: creater
contact now
  • Specification

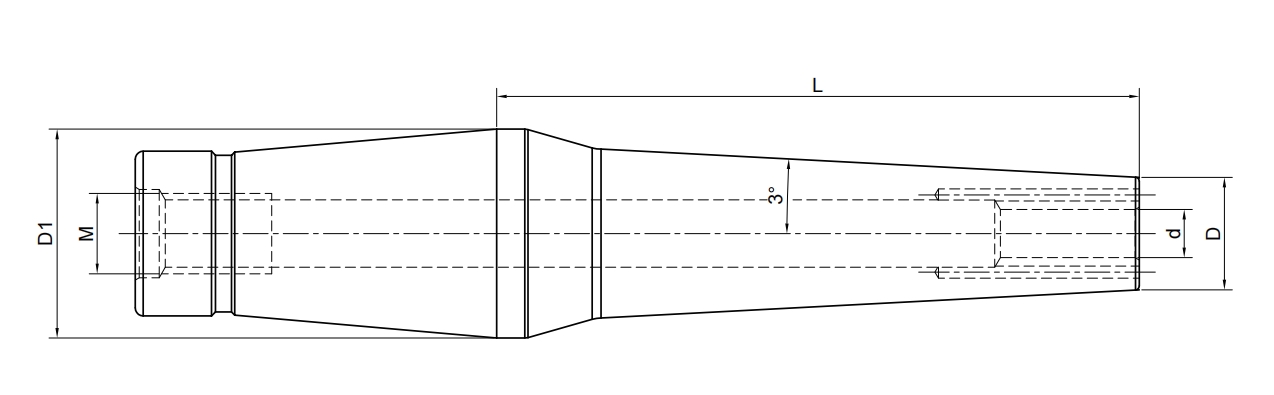

  • Simple figure
  • Precautions









Size d D D1 L M
12-SF3-35K 3 9.5 26 35 M10
12-SF3-55K 3 9.5 26 55 M10
12-SF3-80K 3 9.5 26 80 M10
12-SF4-35K 4 12 26 35 M10
12-SF4-55K 4 12 26 55 M10
12-SF4-80K 4 12 26 80 M10
12-SF6-35K 6 14 26 35 M10
12-SF6-55K 6 14 26 55 M10
12-SF6-80K 6 14 26 80 M10
12-SF8-35K 8 16 26 35 M10
12-SF8-55K 8 16 26 55 M10
12-SF8-80K 8 16 26 80 M10
12-SF10-35K 10 18 26 35 M10
12-SF10-55K 10 18 26 55 M10
12-SF10-80K 10 18 26 80 M10
12-SF12-35K 12 20 26 35 M10
12-SF12-55K 12 20 26 55 M10
12-SF12-80K 12 20 26 80 M10
