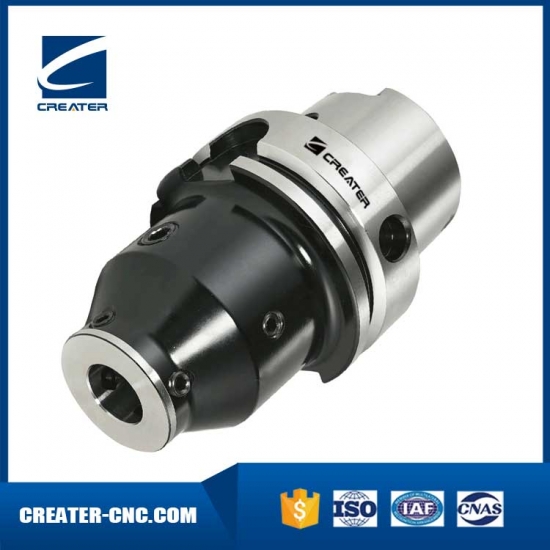

UM Adjustable Tool Holder DIN69893
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
Creater HSK Factory Supply High Quality UM Adjustable Tool Holder

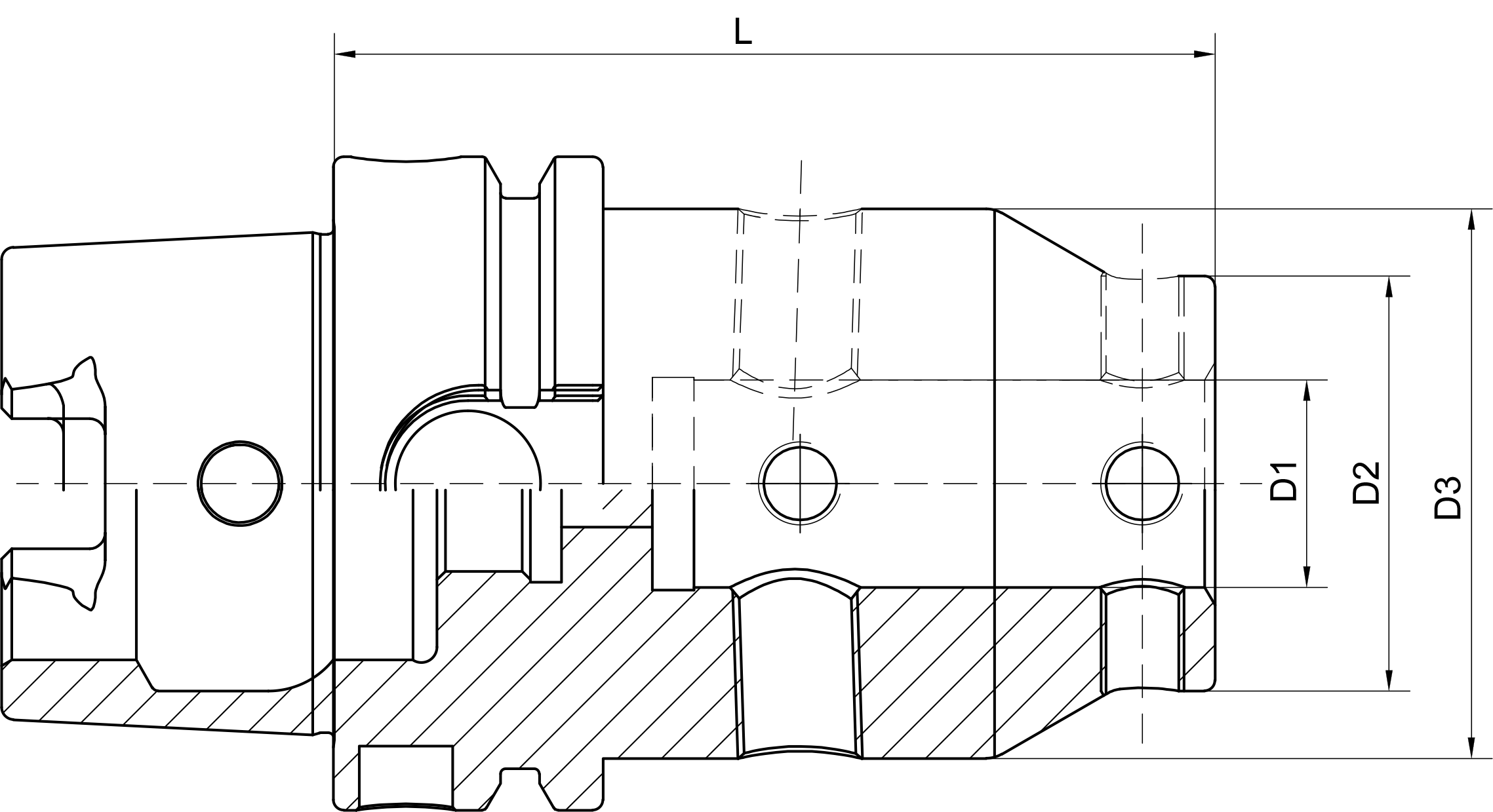

| Size | D1 | D2 | D3 | L |
| HSK50A-UM12-85 | 12 | 28 | 44.5 | 85 |
| HSK50A-UM16-85 | 16 | 32 | 48 | 85 |
| HSK50A-UM20-95 | 20 | 40 | 53 | 95 |
| HSK50A-UM25-105 | 25 | 48 | 63 | 105 |
| HSK50A-UM32-110 | 32 | 52 | 63 | 110 |
| HSK63A-UM12-75 | 12 | 28 | 44.5 | 75 |
| HSK63A-UM16-75 | 16 | 32 | 48 | 75 |
| HSK63A-UM20-85 | 20 | 40 | 53 | 85 |
| HSK63A-UM25-105 | 25 | 48 | 63 | 105 |
| HSK63A-UM32-110 | 32 | 52 | 63 | 110 |
| HSK100A-UM12-80 | 12 | 28 | 44.5 | 80 |
| HSK100A-UM16-80 | 16 | 32 | 48 | 80 |
| HSK100A-UM20-95 | 20 | 40 | 53 | 95 |
| HSK100A-UM25-110 | 25 | 48 | 63 | 110 |
| HSK100A-UM32-115 | 32 | 52 | 63 | 115 |
