Combi Shell Mill Holder DIN6358
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Port |
| Color: | Blackening |
| Lead Time: | 3-45 Days |
| Payment: | TT Payment in Advance |
- Specification

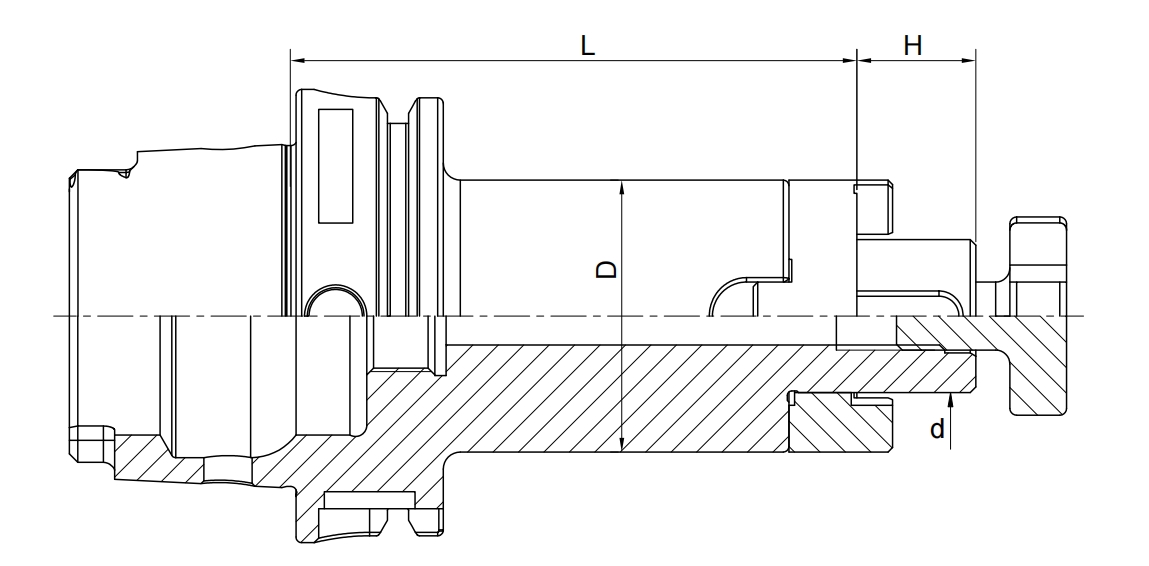

- Simple figure
- Precautions

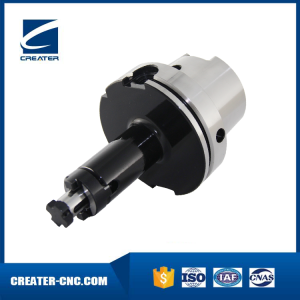

Combi Shell Mill Holder DIN6358
Taper: AT3
Taper Standard: DIN69893
Accuracy: 0.005mm
Balancing : G2.5/25000RPM
Coolant: A Type inner coolant
| Size | d | D | L | H |
| HSK50A-SEMC16-50 | 16 | 32 | 50 | 17 |
| HSK50A-SEMC22-50 | 22 | 40 | 50 | 19 |
| HSK50A-SEMC27-65 | 27 | 48 | 65 | 21 |
| HSK50A-SEMC32-65 | 32 | 58 | 65 | 24 |
| HSK63A-SEMC16-60 | 16 | 32 | 60 | 17 |
| HSK63A-SEMC22-60 | 22 | 40 | 60 | 19 |
| HSK63A-SEMC27-60 | 27 | 48 | 60 | 21 |
| HSK63A-SEMC32-60 | 32 | 58 | 60 | 24 |
| HSK63A-SEMC40-70 | 40 | 70 | 70 | 27 |
| HSK63A-SEMC16-100 | 16 | 32 | 100 | 17 |
| HSK63A-SEMC22-100 | 22 | 40 | 100 | 19 |
| HSK63A-SEMC27-100 | 27 | 48 | 100 | 21 |
| HSK63A-SEMC32-100 | 32 | 58 | 100 | 24 |
| Size | d | D | L | L1 |
| HSK80A-SEMC16-60 | 16 | 32 | 60 | 17 |
| HSK80A-SEMC22-60 | 22 | 40 | 60 | 19 |
| HSK80A-SEMC27-60 | 27 | 48 | 60 | 21 |
| HSK80A-SEMC32-60 | 32 | 58 | 60 | 24 |
| HSK80A-SEMC40-70 | 40 | 70 | 70 | 27 |
| HSK100A-SEMC16-60 | 16 | 32 | 60 | 17 |
| HSK100A-SEMC22-60 | 22 | 40 | 60 | 19 |
| HSK100A-SEMC27-60 | 27 | 48 | 60 | 21 |
| HSK100A-SEMC32-60 | 32 | 58 | 60 | 24 |
| HSK100A-SEMC40-70 | 40 | 70 | 70 | 27 |
