DIN 69871 SK Boring Bar Blank
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

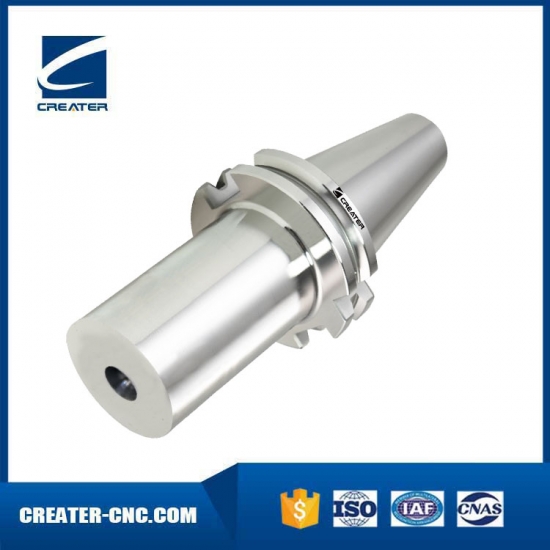

Boring Bar Blank

Tool holder blanks is widely used for secondary processing

Taper with collar, hardened and ground, Hardness 50-55HRC.

Soft shank for further machining, Hardness 35-45HRC

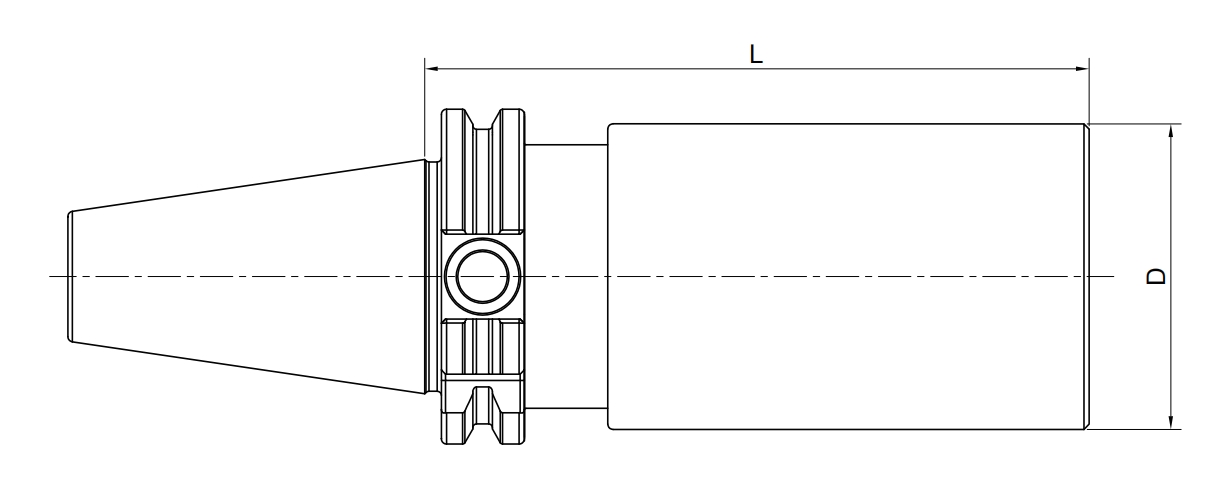

Size D L
SK30-D50-200 50 200
SK40-D50-200 50 200
SK40-D50-250 50 250
SK40-D63-250 63 250
SK50-D100-160 100 160
SK50-D100-250 100 250
