HSK-T Turning Tool SDJCR | SDJCL 93°/55°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

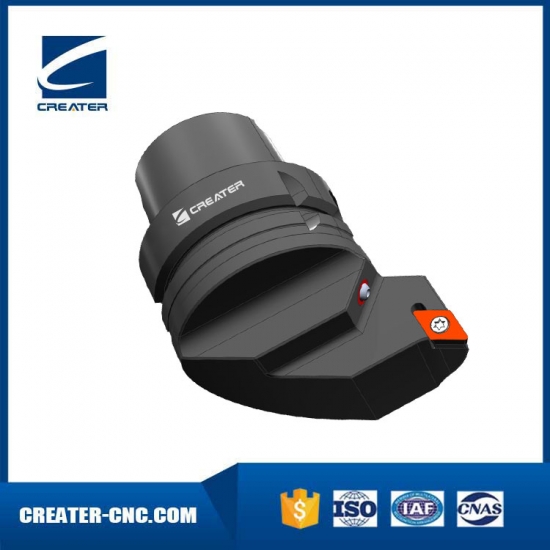

HSK63T and HSK100T External Turning Tool Holder for DC Style Positive Inserts
Screw clamping
Suitable for DC..11T3 inserts
Insert clamping system: S
Insert shape code: D
Tool cutting edge angle code: J
Insert clearance angle: C
Direction of cutting code: R and L
Tool cutting edge angle: 93 deg.

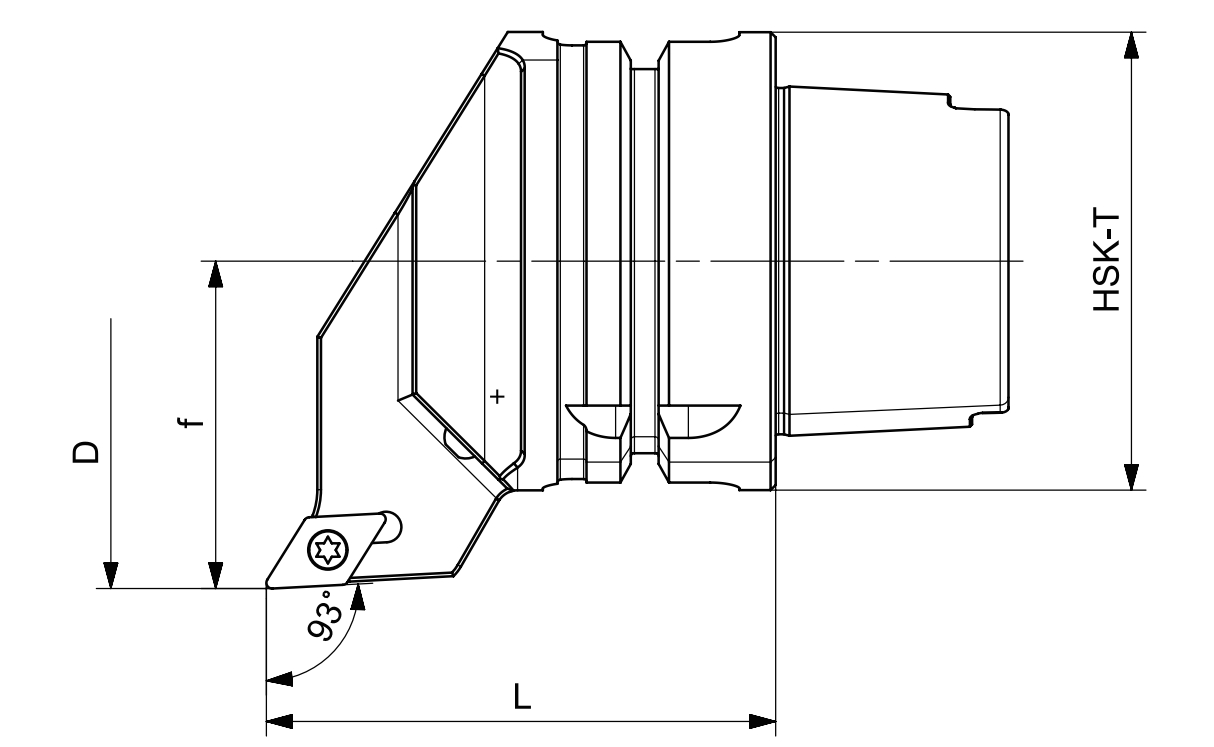

Size
f
D
L
Direction
Inserts N.
HSK63T-SDJCR-45070-11
45
80
70
R
DC..11T3..
HSK63T-SDJCL-45070-11
45
80
70
L
DC..11T3..
HSK100T-SDJCR-63100-11
63
120
100
R
DC..11T3..
HSK100T-SDJCL-63100-11
63
120
100
L
DC..11T3..
