Morse Taper VDI Holder Type F Tool,Suppliers,Manufacturers,Wholesalers

VDI Tool Holder is a Quick Change Tool holding System, it provides a fast and accurate way of affixing tools to the Turret;Tool Changes are performed in seconds. Boring Bar Holders can be Preset.

Metric sizes can be ordered directly, Inch sizes can be make by request.

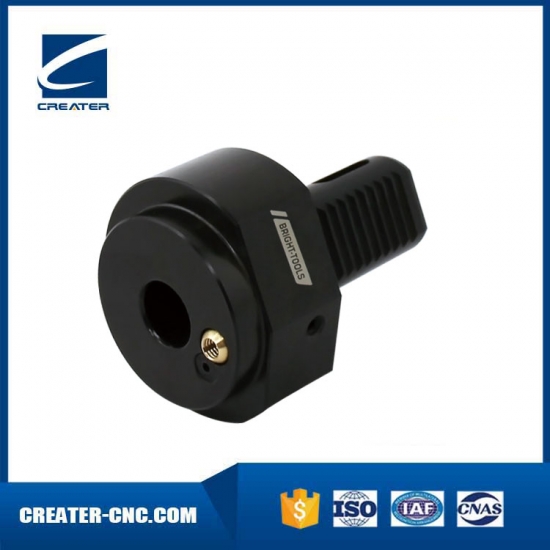

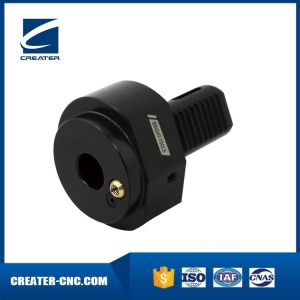

Morse Taper VDI Holder is manufactured by DIN 69880 standard. F Type VDI Static Holders are working with DIN 228 Shank in VDI20, VDI30, VDI40, VDI50, VDI60.

VDI20, VDI30, VDI40, VDI50, VDI60

Size	d1	d2	d3	MK	d4	h1	l1	l2
F-30xMT1	30	-	68	1	12.065	28	27	-
F-30xMT2	30	55	68	2	17.78	28	36	27
F-30xMT3	30	55	68	3	23.825	28	66	41

F-40xMT1	40	55	83	1	12.065	32.5	23	22
F-40xMT2	40	55	83	2	17.78	32.5	36	22
F-40xMT3	40	58	83	3	23.825	32.5	36	22
F-40xMT4	40	68	83	4	31.267	32.5	80	22

F-50xMT2	50	55	98	2	17.78	35	36	30
F-50xMT3	50	58	98	3	23.825	35	45	30
F-50xMT4	50	68	98	4	31.267	35	55	30
F-50xMT5	50	75	98	5	44.399	35	72	-

F-60xMT2	60	55	123	2	17.78	42.5	35	30
F-60xMT3	60	58	123	3	23.825	42.5	45	30
F-60xMT4	60	68	123	4	31.267	42.5	55	30
F-60xMT5	60	98	123	5	44.399	42.5	64	30
