VDI Tool Holder is a Quick Change Toolholding System, which provides a fast and accurate way of affixing tools to the Turret, Tool Changes are performed in seconds.

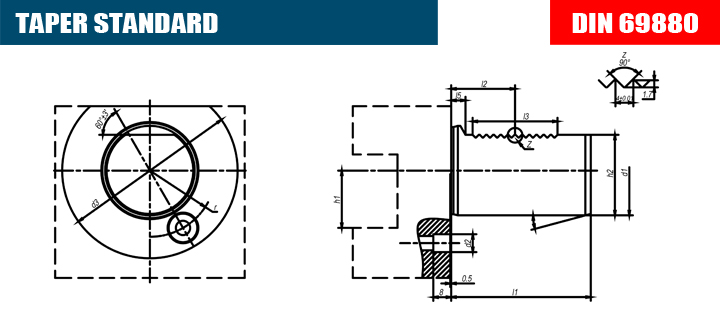

DIN69880 VDI Lathe Tool Holders

d1	h1	d2	d3	h2	r	l1	l2	l3	l4	l5
h6	max	d2	d3	±0.1	±0.02	max	±0.05	min	max	l5
16	12	8	40	15.0	14.5	32	12.7	16	2	3.5
20	16	10	50	18.0	18.0	40	21.7	24	2	7.0
25	16	10	58	23.5	21.0	48	21.7	24	2	7.0
30	20	14	68	27.0	25.0	55	29.7	40	2	7.0
40	25	14	83	36.0	32.0	63	29.7	40	3	7.0
50	32	16	98	45.0	37.0	78	35.7	48	3	8.0
60	32	16	123	55	48	94	43.7	56	4	10
80	40	20	158	72	65	124	49.7	80	4	10

Radial Holder Form B1
DIN69880 VDI Radial Tool Holders Form B1 Right, Short
VDI Tool Holder Form B2
VDI Tool Holders Form B2 Left Hand Short Turning Tool Holder
VDI Tool Holders Form B3
VDI Tool Holders Form B3 Right Hand Short Inverted Turning Tool Holder
VDI Tool Holder Type B4
VDI Tool Holder Form B4 Left Hand Short Inverted Turning Tool Holder
VDI Radial Tool Holder B5
Radial VDI Tool Holders Static B5 Type, Right-Hand Long Turning Tool Holder.
VDI Tool Holders B6 Type
VDI Tool Holder Form Turret Face Mounting Type B6 Left Hand LongTurning Tool Holder
VDI Tool Holders Form B7
VDI Tool Holders Form B7 Right Hand Long Inverted Turning Tool Holder
VDI Tool Holder Type B8
VDI Tool Holder Form B8 Left Hand Long Inverted Turning Tool Holder
VDI Tool Holder Form C1
VDI Tool Holders Form C1 Square Tool Right-Hand Facing Tool Holder
VDI Axial Tool Holder C2
- VDI Form C2 Square Tool Left-Hand Facing Tool Holder
