VDI Tool Holder Form D2
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-40 Days |
- Specification
- Simple figure
- Precautions

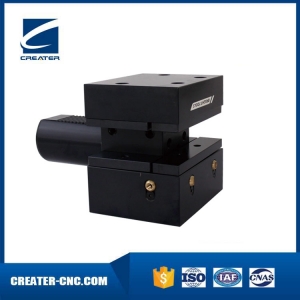

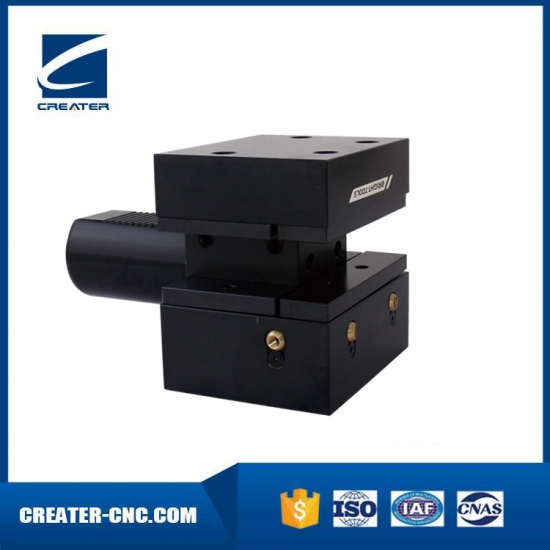

Rectangular Holder VDI Form D2 Inverted Square Turning Tool Holder with Multiple Seats
VDI provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds. Toolholders can be Preset.
Metric sizes can be ordered directly, Inch sizes can be make by request.

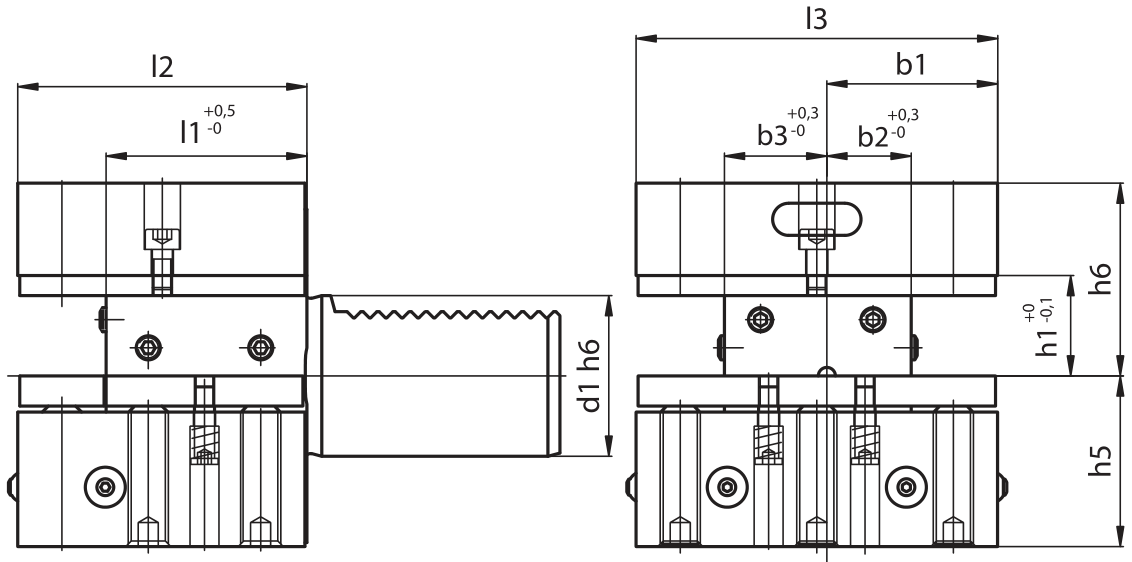

| Metric | ||||||||||
| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 | l3 |
| D2-25x16x48 | 25 | 33 | 19 | 19 | 16/12 | 25 | 30 | 34 | 48 | 66 |
| D2-30x20x60 | 30 | 35 | 17 | 23 | 20/16 | 35 | 38 | 42 | 60 | 76 |
| D2-40x25x72 | 40 | 42.5 | 21 | 25.5 | 25/20 | 42.5 | 48 | 50 | 72 | 90 |
| D2-50x32x85 | 50 | 50 | 26 | 30.5 | 32/25 | 50 | 60 | 60 | 85 | 105 |
| D2-60x32x110 | 60 | 57.5 | 33 | 33 | 32/25 | 62.5 | 62.5 | 85 | 110 | 115 |
| D2-80x40x140 | 80 | 76 | 42 | 42 | 40/32 | 80 | 80 | 105 | 140 | 152 |
| Inch | ||||||||||
| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 | l3 |
| D2-30x3/4"x60 | 30 | 35 | 17 | 23 | 3/4" | 35 | 38 | 42 | 60 | 76 |
| D2-40x1"x72 | 40 | 42.5 | 21 | 25.5 | 1" | 42.5 | 48 | 50 | 72 | 90 |
| D2-50x1-1/4" x85 | 50 | 50 | 26 | 30.5 | 1-1/4" | 50 | 60 | 60 | 85 | 105 |
| D2-60x1-1/4" x110 | 60 | 57.5 | 33 | 33 | 1-1/4" | 62.5 | 62.5 | 85 | 110 | 115 |
