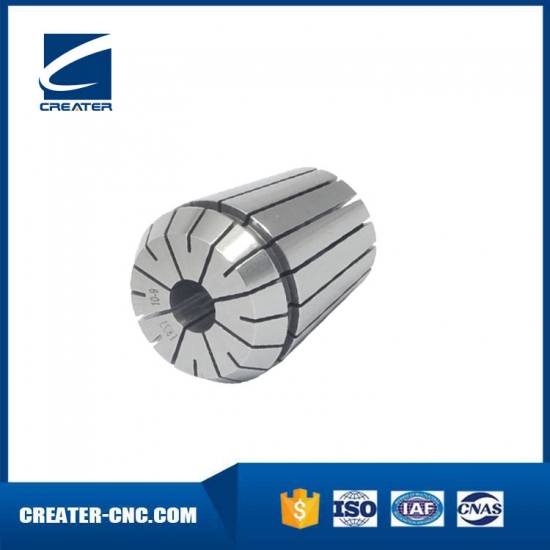

ER Collet DIN6499B Tool,Suppliers,Manufacturers,Wholesalers

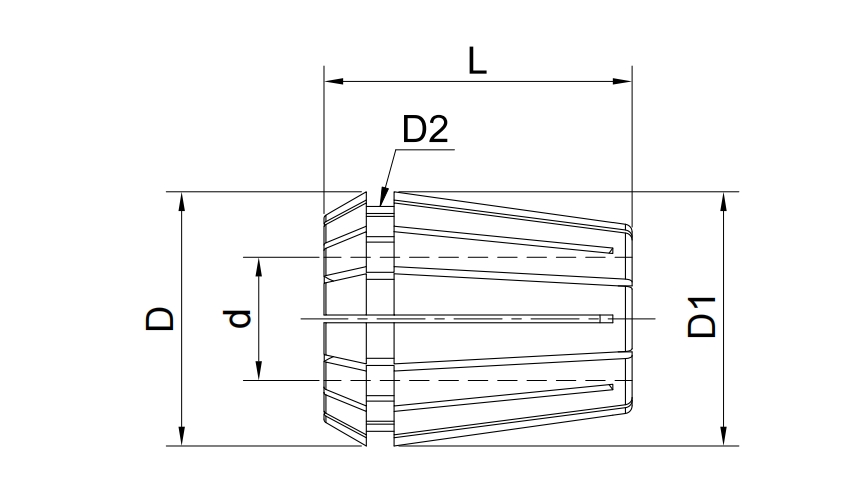

Size	d	D1	D	D2	L	Capacity
ER8-01	1-0.5	8	8.45	6.5	13.5	0.5
ER8-01.5	1.5-1	8	8.45	6.5	13.5	0.5
ER8-02	2-1.5	8	8.45	6.5	13.5	0.5
ER8-02.5	2.5-2	8	8.45	6.5	13.5	0.5
ER8-03	3-2.5	8	8.45	6.5	13.5	0.5
ER8-03.5	3.5-3	8	8.45	6.5	13.5	0.5
ER8-04	4-3.5	8	8.45	6.5	13.5	0.5
ER8-04.5	4.5-4	8	8.45	6.5	13.5	0.5
ER8-05	5-4.5	8	8.45	6.5	13.5	0.5

ER11-01	1-0.5	11	11.5	9.5	18	0.5
ER11-01.5	1.5-1	11	11.5	9.5	18	0.5
ER11-02	2-1.5	11	11.5	9.5	18	0.5
ER11-02.5	2.5-2	11	11.5	9.5	18	0.5
ER11-03	3-2.5	11	11.5	9.5	18	0.5
ER11-03.5	3.5-3	11	11.5	9.5	18	0.5
ER11-04	4-3.5	11	11.5	9.5	18	0.5
ER11-04.5	4.5-4	11	11.5	9.5	18	0.5
ER11-05	5-4.5	11	11.5	9.5	18	0.5
ER11-05.5	5.5-5	11	11.5	9.5	18	0.5
ER11-06	6-5.5	11	11.5	9.5	18	0.5
ER11-06.5	6.5-6	11	11.5	9.5	18	0.5
ER11-07	7-6.5	11	11.5	9.5	18	0.5

ER16-01	1-0.5	16	17	13.8	27.5	1
ER16-02	2-1	16	17	13.8	27.5	1
ER16-03	3-2	16	17	13.8	27.5	1
ER16-04	4-3	16	17	13.8	27.5	1
ER16-05	5-4	16	17	13.8	27.5	1
ER16-06	6-5	16	17	13.8	27.5	1
ER16-07	7-6	16	17	13.8	27.5	1
ER16-08	8-7	16	17	13.8	27.5	1
ER16-09	9-8	16	17	13.8	27.5	1
ER16-10	10-9	16	17	13.8	27.5	1

ER20-01	1-0.5	20	21	17.4	31.5	1
ER20-02	2-1	20	21	17.4	31.5	1
ER20-03	3-2	20	21	17.4	31.5	1
ER20-04	4-3	20	21	17.4	31.5	1
ER20-05	5-4	20	21	17.4	31.5	1
ER20-06	6-5	20	21	17.4	31.5	1
ER20-07	7-6	20	21	17.4	31.5	1
ER20-08	8-7	20	21	17.4	31.5	1
ER20-09	9-8	20	21	17.4	31.5	1
ER20-10	10-9	20	21	17.4	31.5	1
ER20-11	11-10	20	21	17.4	31.5	1
ER20-12	12-11	20	21	17.4	31.5	1
ER20-13	13-12	20	21	17.4	31.5	1

ER25-01	1-0.5	25	26	22	34	1
ER25-02	2-1	25	26	22	34	1
ER25-03	3-2	25	26	22	34	1
ER25-04	4-3	25	26	22	34	1
ER25-05	5-4	25	26	22	34	1
ER25-06	6-5	25	26	22	34	1
ER25-07	7-6	25	26	22	34	1
ER25-08	8-7	25	26	22	34	1
ER25-09	9-8	25	26	22	34	1
ER25-10	10-9	25	26	22	34	1
ER25-11	11-10	25	26	22	34	1
ER25-12	12-11	25	26	22	34	1
ER25-13	13-12	25	26	22	34	1
ER25-14	14-13	25	26	22	34	1
ER25-15	15-14	25	26	22	34	1
ER25-16	16-15	25	26	22	34	1

ER32-02	2-1	32	33	29.2	40	1
ER32-03	3-2	32	33	29.2	40	1
ER32-04	4-3	32	33	29.2	40	1
ER32-05	5-4	32	33	29.2	40	1
ER32-06	6-5	32	33	29.2	40	1
ER32-07	7-6	32	33	29.2	40	1
ER32-08	8-7	32	33	29.2	40	1
ER32-09	9-8	32	33	29.2	40	1
ER32-10	10-9	32	33	29.2	40	1
ER32-11	11-10	32	33	29.2	40	1
ER32-12	12-11	32	33	29.2	40	1
ER32-13	13-12	32	33	29.2	40	1
ER32-14	14-13	32	33	29.2	40	1
ER32-15	15-14	32	33	29.2	40	1
ER32-16	16-15	32	33	29.2	40	1
ER32-17	17-16	32	33	29.2	40	1
ER32-18	18-17	32	33	29.2	40	1
ER32-19	19-18	32	33	29.2	40	1
ER32-20	20-19	32	33	29.2	40	1

ER40-03	3-2	40	41	36.2	46	1
ER40-04	4-3	40	41	36.2	46	1
ER40-05	5-4	40	41	36.2	46	1
ER40-06	6-5	40	41	36.2	46	1
ER40-07	7-6	40	41	36.2	46	1
ER40-08	8-7	40	41	36.2	46	1
ER40-09	9-8	40	41	36.2	46	1
ER40-10	10-9	40	41	36.2	46	1
ER40-11	11-10	40	41	36.2	46	1
ER40-12	12-11	40	41	36.2	46	1
ER40-13	13-12	40	41	36.2	46	1
ER40-14	14-13	40	41	36.2	46	1
ER40-15	15-14	40	41	36.2	46	1
ER40-16	16-15	40	41	36.2	46	1
ER40-17	17-16	40	41	36.2	46	1
ER40-18	18-17	40	41	36.2	46	1
ER40-19	19-18	40	41	36.2	46	1
ER40-20	20-19	40	41	36.2	46	1
ER40-21	21-20	40	41	36.2	46	1
ER40-22	22-21	40	41	36.2	46	1
ER40-23	23-22	40	41	36.2	46	1
ER40-24	24-23	40	41	36.2	46	1
ER40-25	25-24	40	41	36.2	46	1
ER40-26	26-25	40	41	36.2	46	1

ER50-06	6-4	50	52	46	60	2
ER50-08	8-6	50	52	46	60	2
ER50-10	10-8	50	52	46	60	2
ER50-12	12-10	50	52	46	60	2
ER50-14	14-12	50	52	46	60	2
ER50-16	16-14	50	52	46	60	2
ER50-18	18-16	50	52	46	60	2
ER50-20	20-18	50	52	46	60	2
ER50-22	22-20	50	52	46	60	2
ER50-24	24-22	50	52	46	60	2
ER50-26	26-24	50	52	46	60	2
ER50-28	28-26	50	52	46	60	2
ER50-30	30-28	50	52	46	60	2
ER50-32	32-30	50	52	46	60	2
ER50-34	34-32	50	52	46	60	2
