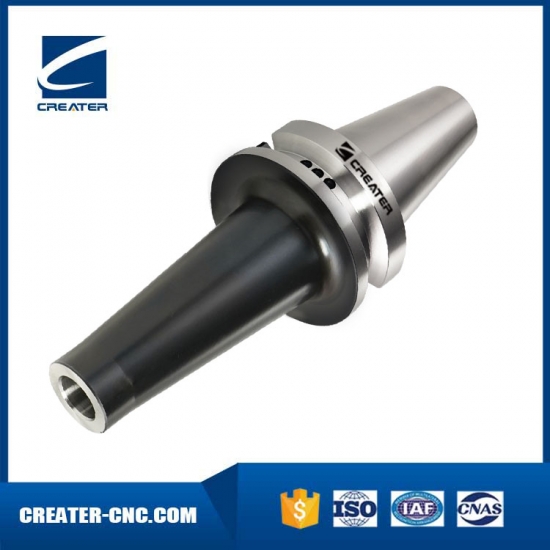

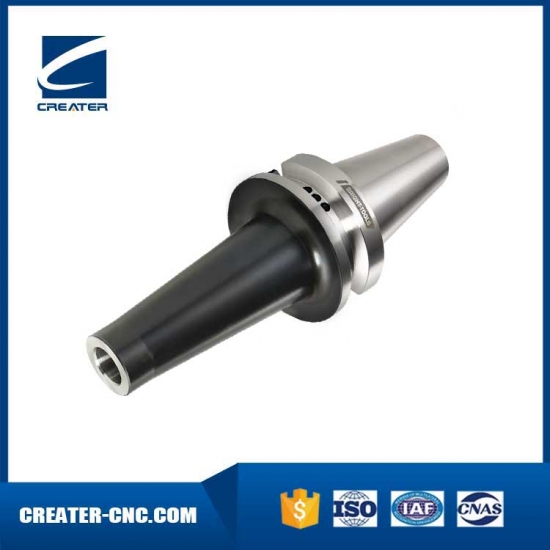

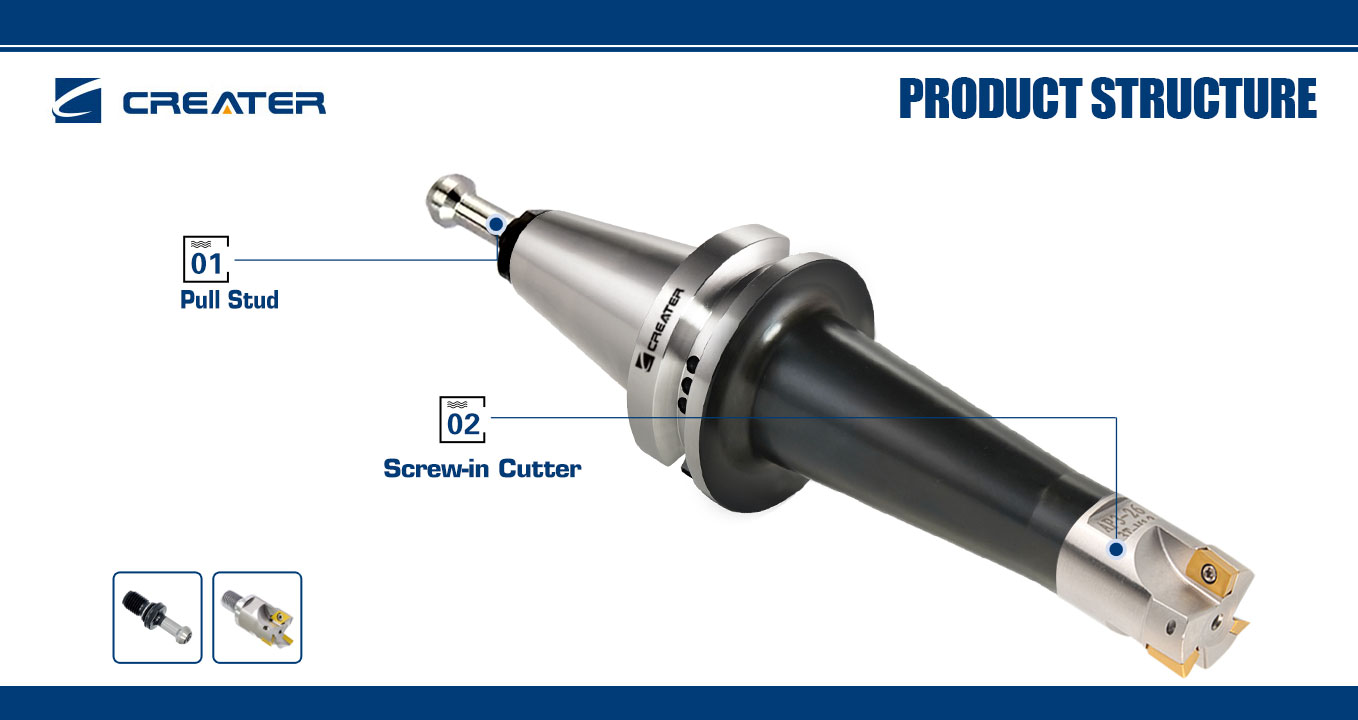

SOM Thread Contact holder
7:24 Taper:AT3

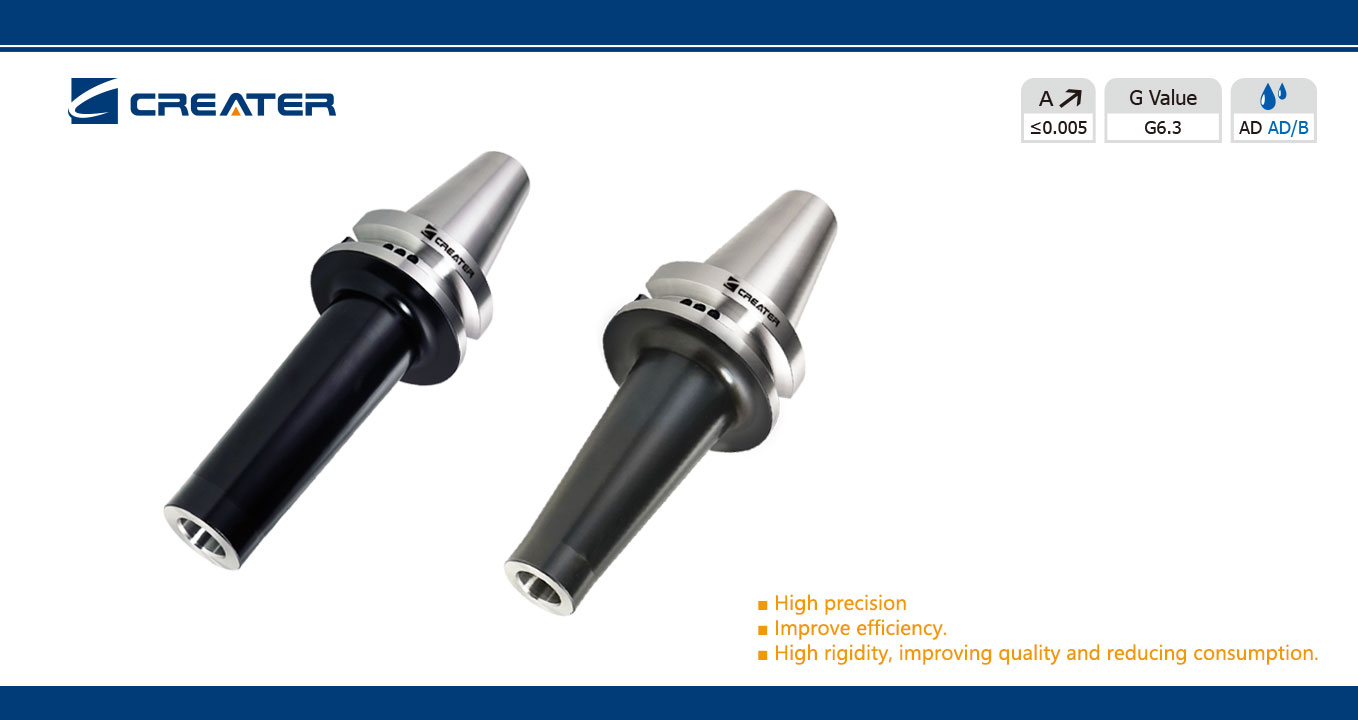

Accuracy: 0.005mm
Coolant: AD, ADB

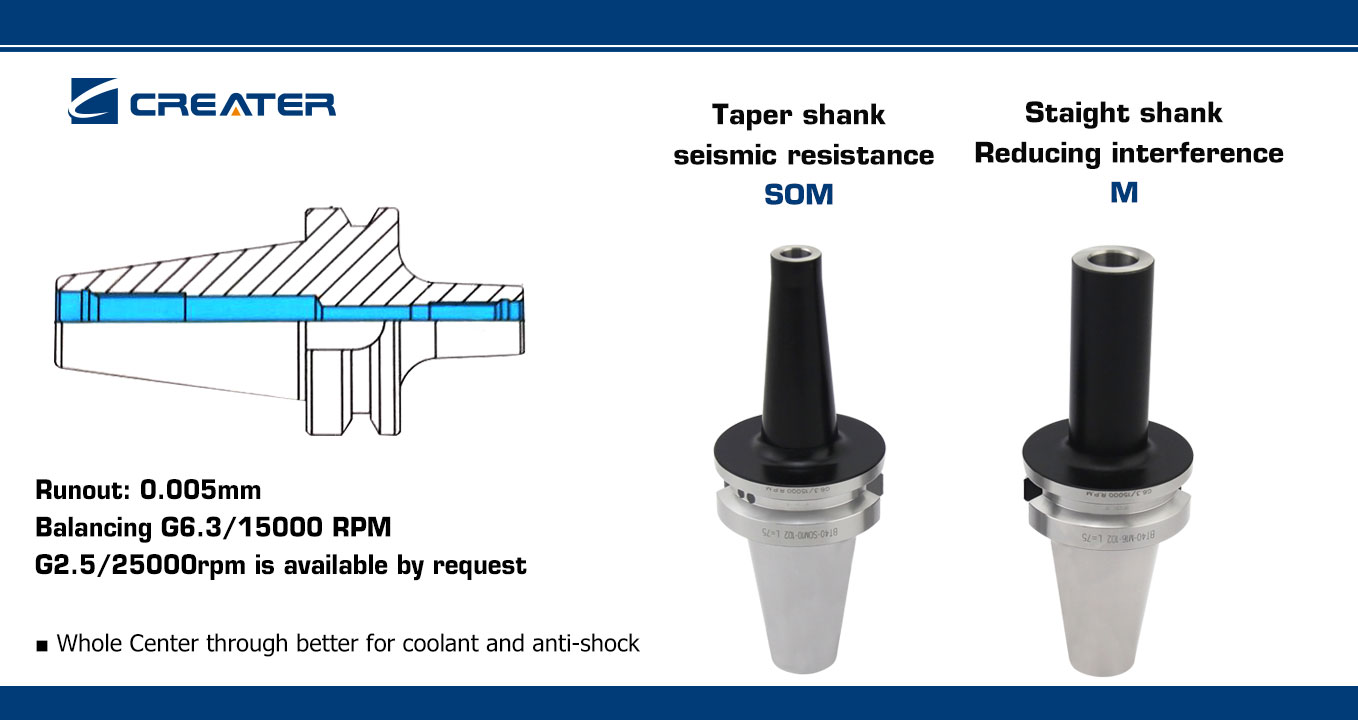

Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893

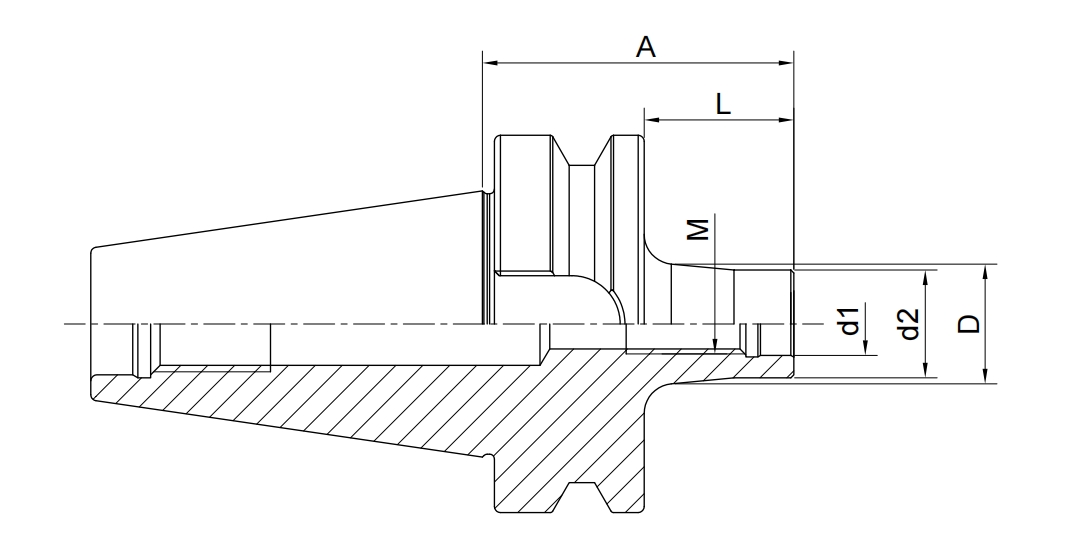

| Size | M | d1 | d2 | A | L | D |
| BT40-SOM08-52 L=25 | 8 | 8.5 | 14.5 | 52 | 25 | 15 |
| BT40-SOM08-77 L=50 | 8 | 8.5 | 14.5 | 77 | 50 | 23 |
| BT40-SOM08-102 L=75 | 8 | 8.5 | 14.5 | 102 | 75 | 23 |
| BT40-SOM08-127 L=100 | 8 | 8.5 | 14.5 | 127 | 100 | 25 |
| BT40-SOM10-32 L=5 | 10 | 10.5 | 18 | 32 | 5 | 18 |
| BT40-SOM10-52 L=25 | 10 | 10.5 | 18 | 52 | 25 | 20 |
| BT40-SOM10-77 L-50 | 10 | 10.5 | 18 | 77 | 50 | 23 |
| BT40-SOM10-102 L=75 | 10 | 10.5 | 18 | 102 | 75 | 28 |
| BT40-SOM10-127 L=100 | 10 | 10.5 | 18 | 127 | 100 | 32 |
| BT40-SOM10-177 L=150 | 10 | 10.5 | 18 | 177 | 150 | 36.5 |
| BT40-SOM12-32 L=5 | 12 | 12.5 | 21 | 32 | 5 | 21 |
| BT40-SOM12-52 L=25 | 12 | 12.5 | 21 | 52 | 25 | 24 |
| BT40-SOM12-77 L=50 | 12 | 12.5 | 21 | 77 | 50 | 24 |
| BT40-SOM12-102 L=75 | 12 | 12.5 | 21 | 102 | 75 | 31 |
| BT40-SOM12-127 L=100 | 12 | 12.5 | 21 | 127 | 100 | 31 |
| BT40-SOM12-152 L=125 | 12 | 12.5 | 21 | 152 | 125 | 36 |
| BT40-SOM12-177 L=150 | 12 | 12.5 | 21 | 177 | 150 | 38 |
| BT40-SOM16-32 L=5 | 16 | 17 | 29 | 32 | 5 | 29 |
| BT40-SOM16-52 L=25 | 16 | 17 | 29 | 52 | 25 | 29 |
| BT40-SOM16-77 L=50 | 16 | 17 | 29 | 77 | 50 | 34 |
| BT40-SOM16-102 L=75 | 16 | 17 | 29 | 102 | 75 | 34 |
| BT40-SOM16-127 L=100 | 16 | 17 | 29 | 127 | 100 | 36 |
| BT40-SOM16-152 L=125 | 16 | 17 | 29 | 152 | 125 | 40 |
| BT40-SOM16-177 L=150 | 16 | 17 | 29 | 177 | 150 | 42.5 |
| Size | M | d1 | d2 | A | L | D |
| BT50-SOM08-88 L=50 | 8 | 8.5 | 14.5 | 88 | 50 | 23 |
| BT50-SOM08-138 L=100 | 8 | 8.5 | 14.5 | 138 | 100 | 25 |
| BT50-SOM08-188 L=150 | 8 | 8.5 | 14.5 | 188 | 150 | 30 |
| BT50-SOM10-88 L=50 | 10 | 10.5 | 18 | 88 | 50 | 23 |
| BT50-SOM10-138 L=100 | 10 | 10.5 | 18 | 138 | 100 | 32 |
| BT50-SOM10-188 L=150 | 10 | 10.5 | 18 | 188 | 150 | 36.5 |
| BT50-SOM12-88 L=50 | 12 | 12.5 | 21 | 88 | 50 | 24 |
| BT50-SOM12-138 L=100 | 12 | 12.5 | 21 | 138 | 100 | 33 |
| BT50-SOM12-188 L=150 | 12 | 12.5 | 21 | 188 | 150 | 40 |
| BT50-SOM16-88 L=50 | 16 | 17 | 29 | 88 | 50 | 34 |
| BT50-SOM16-138 L=100 | 16 | 17 | 29 | 138 | 100 | 36 |
| BT50-SOM16-188 L=150 | 16 | 17 | 29 | 188 | 150 | 42.5 |
