Products
Quick Change Tapping Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-45 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

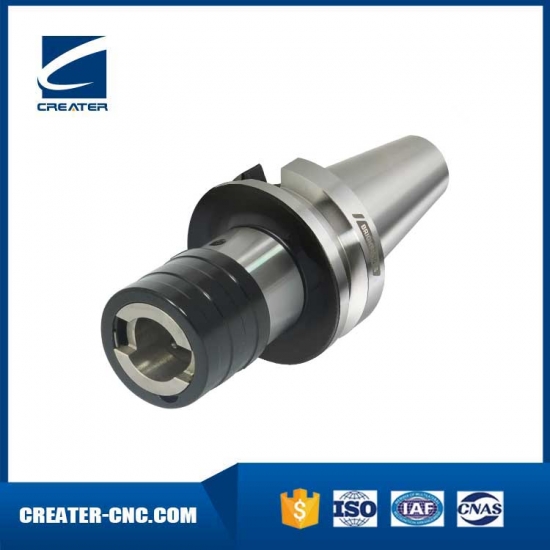

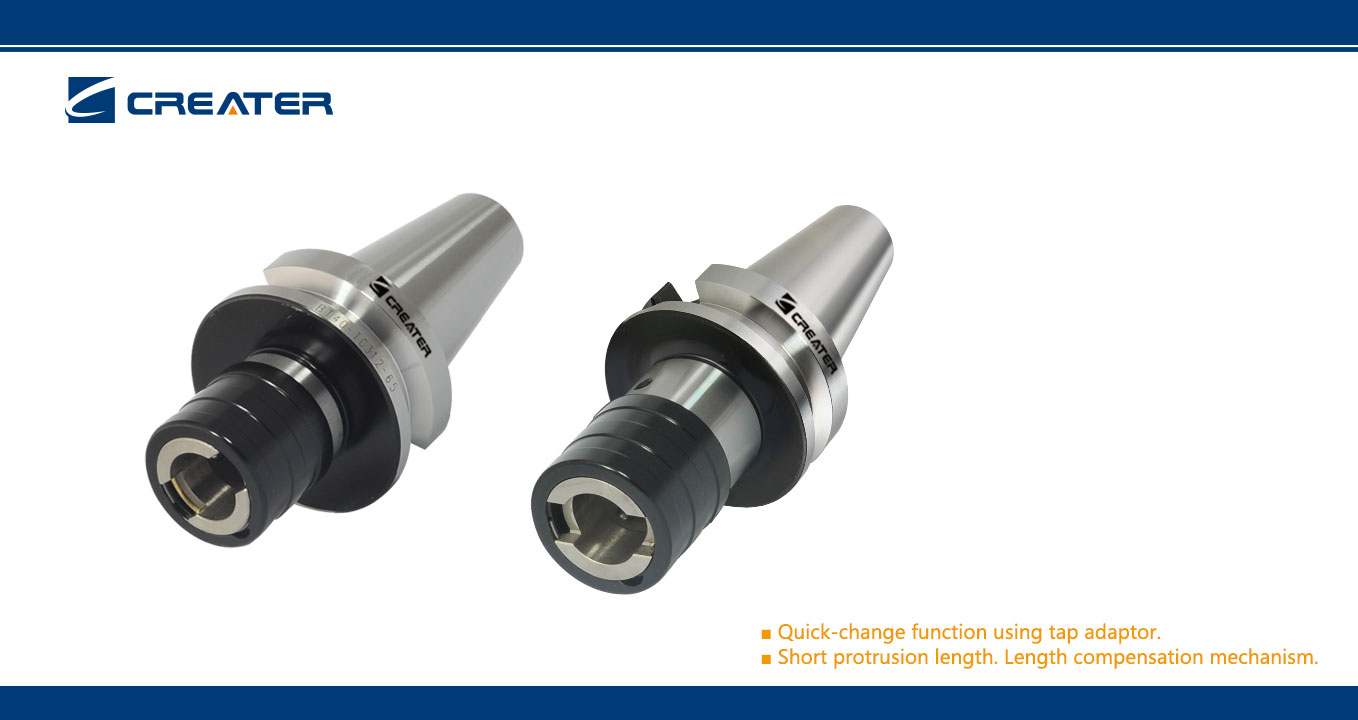

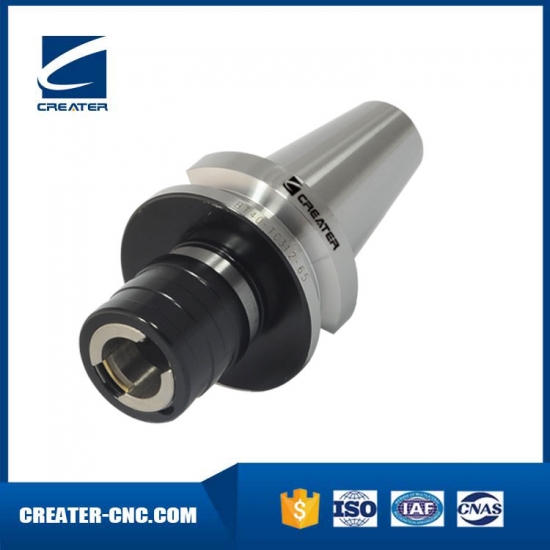

Quick Change Tapping Chuck with length Compensatiion
Taper standard: AT3
Surface: Blackening sand blasting
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893
We also provide quality Tapping Chuck and Holder, please visit us!

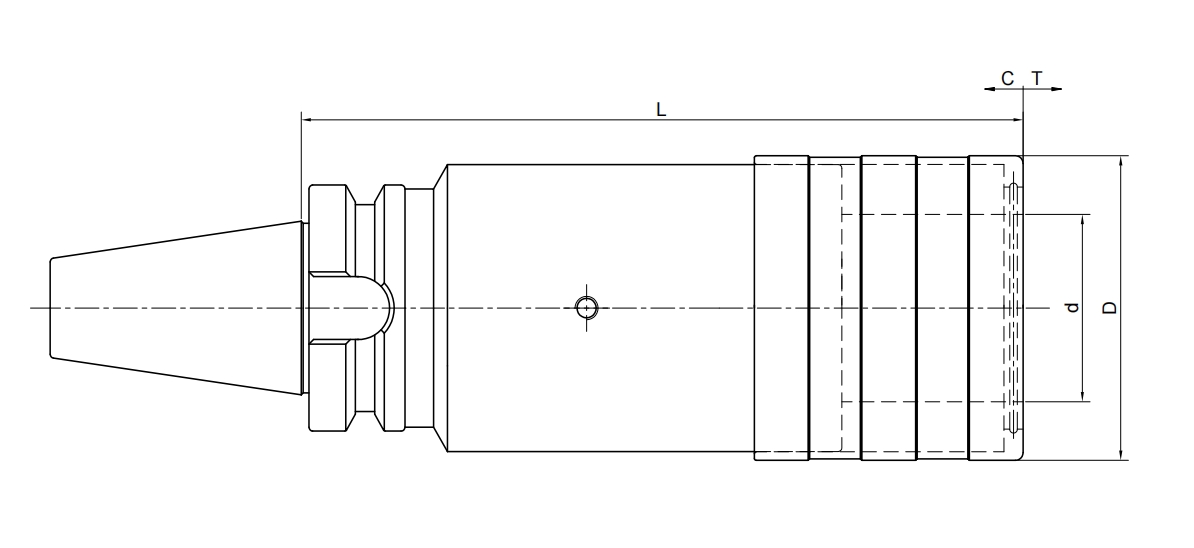

| Size | d | D | L | T | C |
| BT30-TC312-70 | 19 | 38 | 70 | 7.5 | 7.5 |
| BT30-TC820-95 | 31 | 54 | 95 | 12.5 | 12.5 |
| BT40-TC312-65 | 19 | 38 | 65 | 7.5 | 7.5 |
| BT40-TC820-93 | 31 | 53 | 93 | 12.5 | 12.5 |
| BT40-TC1433-166 | 48 | 78 | 166 | 22 | 22 |
| BT50-TC312-100 | 19 | 38 | 100 | 7.5 | 7.5 |
| BT50-TC820-100 | 31 | 53 | 100 | 12.5 | 12.5 |
| BT50-TC1433-142 | 48 | 78 | 142 | 22 | 22 |
