VDI Tool Holder Type B8
contact now
| Product Origin: | Dezhou, China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | New Blackening Surface Treatment |
| Lead Time: | 5-45 Days |
| Payment: | TT in Advance |
- Specification

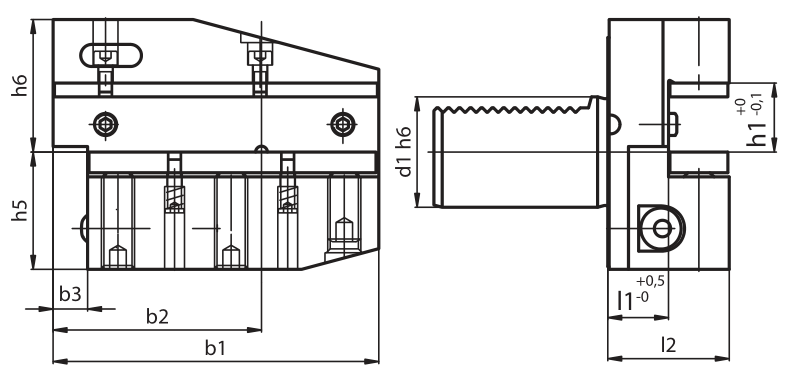

- Simple figure
- Precautions

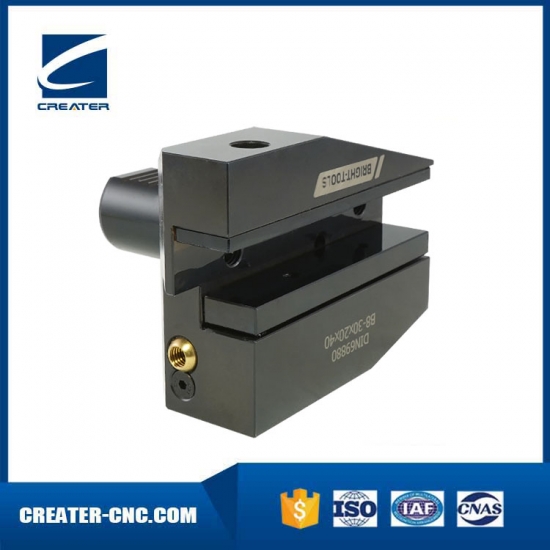

VDI Tool Holder Form B8 Left Hand Long Inverted Turning Tool Holder
VDI Tool Holders Static (DIN69880) Turret Face Mounting Types B8
Radial VDI Tool Holders Static B8 Type (Left-Hand) are available in metric sizes, tools in inch sizes can be made by request.
Our Radial VDI Tool Holders Static B8 Type is cut from alloyed steel, hardened up to HRC 55-60, and then precisely grind to the highest accuracy standards.
| Metric | |||||||||
| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
| B8-16x12x24 | 16 | 58 | 39 | 5 | 12 | 20 | 22 | 13 | 24 |
| B8-16x12x34 | 16 | 58 | 39 | 5 | 12 | 20 | 22 | 23 | 34 |
| B8-20x16x30 | 20 | 75 | 50 | 7 | 16/12 | 25 | 30 | 16 | 30 |
| B8-20x16x40 | 20 | 75 | 50 | 7 | 16/12 | 25 | 30 | 26 | 40 |
| B8-25x16x30 | 25 | 75 | 50 | 7 | 16/12 | 25 | 30 | 16 | 30 |
| B8-25x16x40 | 25 | 75 | 50 | 7 | 16/12 | 25 | 30 | 26 | 40 |
| B8-30x20x40 | 30 | 100 | 65 | 10 | 20/16 | 35 | 38 | 22 | 40 |
| B8-30x20x60 | 30 | 100 | 65 | 10 | 20/16 | 35 | 38 | 42 | 60 |
| B8-40x25x44 | 40 | 118 | 75.5 | 12.5 | 25/20 | 42.5 | 48 | 22 | 44 |
| B8-50x32x55 | 50 | 130 | 80 | 16 | 32/25 | 50 | 60 | 30 | 55 |
| B8-60x32x60 | 60 | 145 | 82.5 | 16 | 32/25 | 62.5 | 62.5 | 30 | 60 |
| B8-80x40x75 | 80 | 190 | 110 | 20 | 40/32 | 80 | 80 | 40 | 75 |
| Inch | |||||||||
| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
| B8-20x5/8"x30 | 20 | 75 | 50 | 7 | 5/8" | 25 | 30 | 16 | 30 |
| B8-30x3/4"x40 | 30 | 100 | 65 | 10 | 3/4" | 35 | 38 | 22 | 40 |
| B8-40x1"x44 | 40 | 118 | 75.5 | 12.5 | 1" | 42.5 | 48 | 22 | 44 |
| B8-50x1-1/4" x55 | 50 | 130 | 80 | 16 | 1-1/4" | 50 | 60 | 30 | 55 |
| B8-60x1-1/4" x60 | 60 | 145 | 82.5 | 16 | 1-1/4" | 62.5 | 62.5 | 30 | 60 |
