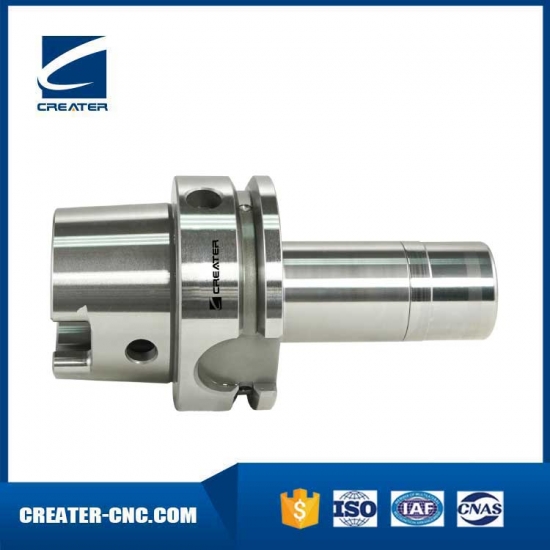

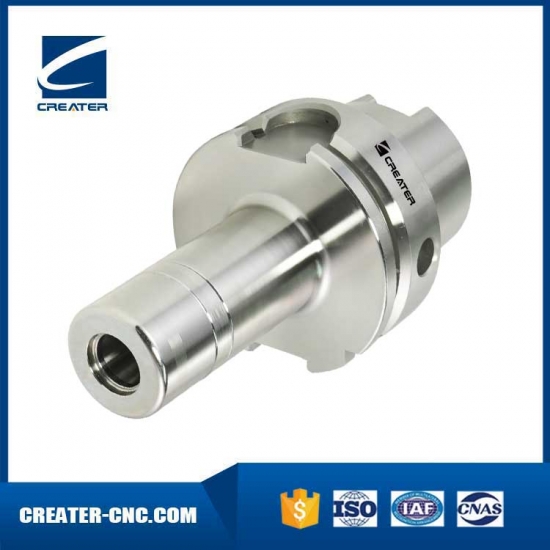

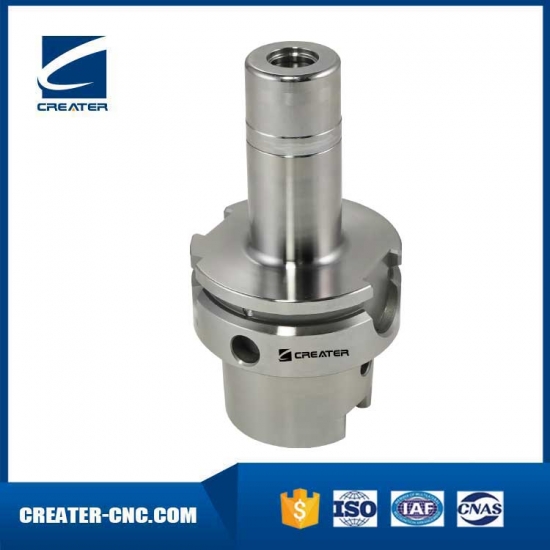

SKS Collet Chuck
HSK-SKS Collet Chuck is very good at for high speed processing especially for electronic workpiece processing
1, The nut is designed in a full round, with small wind resistance and low noise, G2.5/25000 RPM ensure stable high-speed processing
2, The collet adopts a unilateral 4° design, which bring higher repeat clamping accuracy.
3, Slim body compared with ER collets, has stronger air avoidance.

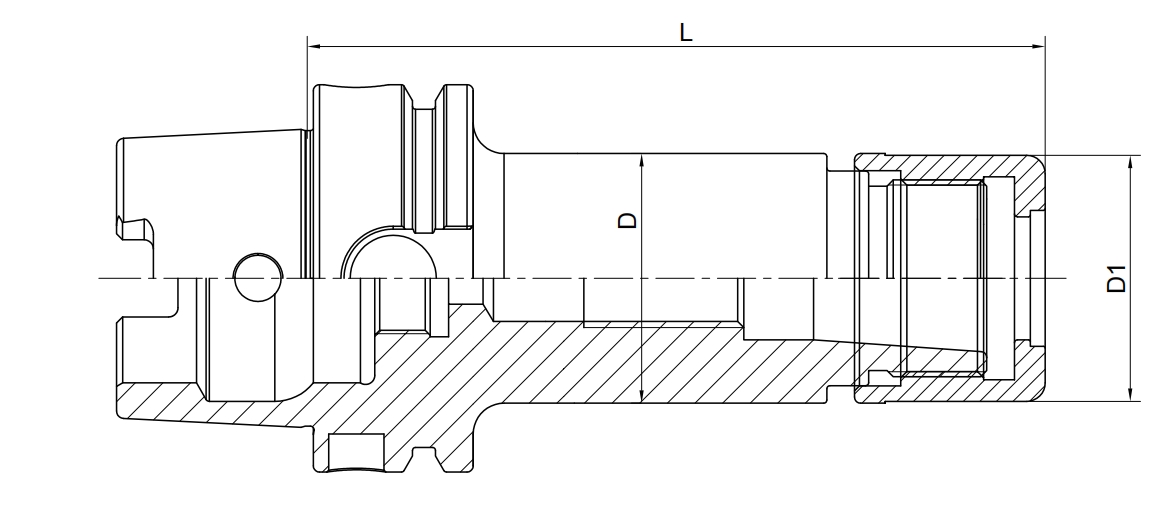

Size
D
D1
L
Capacity
M
HSK63A-SKS10-90
27.5
27.1
90
2-10
M21.5*1
HSK63A-SKS16-90
40.6
40
90
3-16
M32*1.5
HSK63A-SKS10-120
27.5
27.1
120
2-10
M21.5*1
HSK63A-SKS16-120
40.6
40
120
3-16
M32*1.5
HSK100A-SKS10-90
27.5
27.1
90
2-10
M21.5*1
HSK100A-SKS16-90
40.6
40
90
3-16
M32*1.5
HSK100A-SKS10-120
27.5
27.1
120
2-10
M21.5*1
HSK100A-SKS16-120
40.6
40
120
3-16
M32*1.5
