B1B4A Radial, Short, Coolant
Product Origin: China
Brand: creater
Shipping Port: Qingdao, Tianjin
Color: Blackening
Lead Time: 40 Days
Payment: TT in Advance
contact now
  • Specification
  • Simple figure
  • Precautions

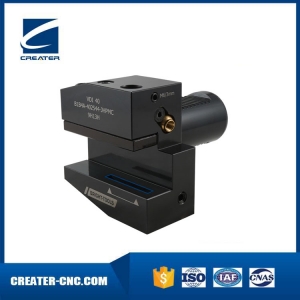

B1B4A Radial, Short, Coolant



The new system consists of specially designed long coolant outlet slot that enables adjusting the tool's protrusion.

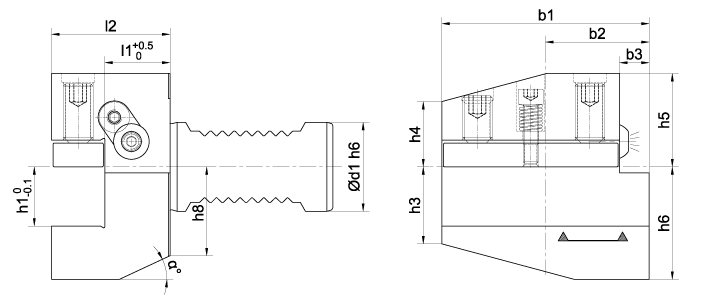

Size b1 b2 b3 l1 h3 h4 h5 h6 h8 α
B1B4A-302040 70 35 10 22 26 22 31.5 38 30 25˚
B1B4A-402544 85 42.5 12.5 22 35 30 38 48 43 30˚
B1B4A-502544 85 42.5 12.5 22 43 30 43 48 43 30˚
