B4A Radial, Short, Coolant
The new system consists of specially designed long coolant outlet slot that enables adjusting the tool's protrusion.

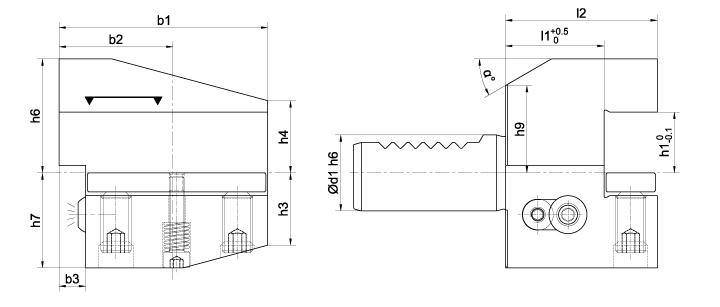

| Size | b1 | b2 | b3 | l1 | h3 | h4 | h6 | h7 | h9 | α |
| B4A-161234 | 42 | 23 | 5 | 23 | 15 | 15 | 22 | 20 | 19 | 30˚ |
| B4A-201640 | 55 | 30 | 7 | 26 | 19 | 19 | 30 | 25 | 23 | 30˚ |
| B4A-302040 | 70 | 35 | 10 | 22 | 26 | 22 | 38 | 35 | 28 | 25˚ |
| B4A-402544 | 85 | 42.5 | 12.5 | 22 | 35 | 30 | 48 | 42.5 | 43 | 30˚ |
| B4A-502544 | 85 | 42.5 | 12.5 | 22 | 35 | 30 | 48 | 42.5 | 43 | 30˚ |
