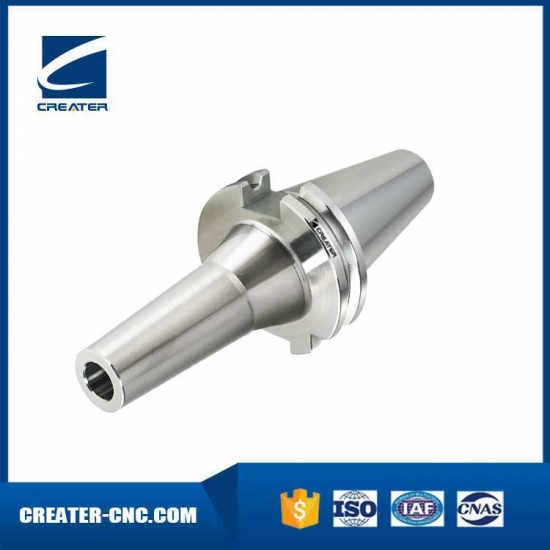

DIN 69871 SK Power Milling Chuck
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions



Pull Back Collet Chuck

Built-in collet design

More suitable for high speed machining

Reduced interference when machining without nuts

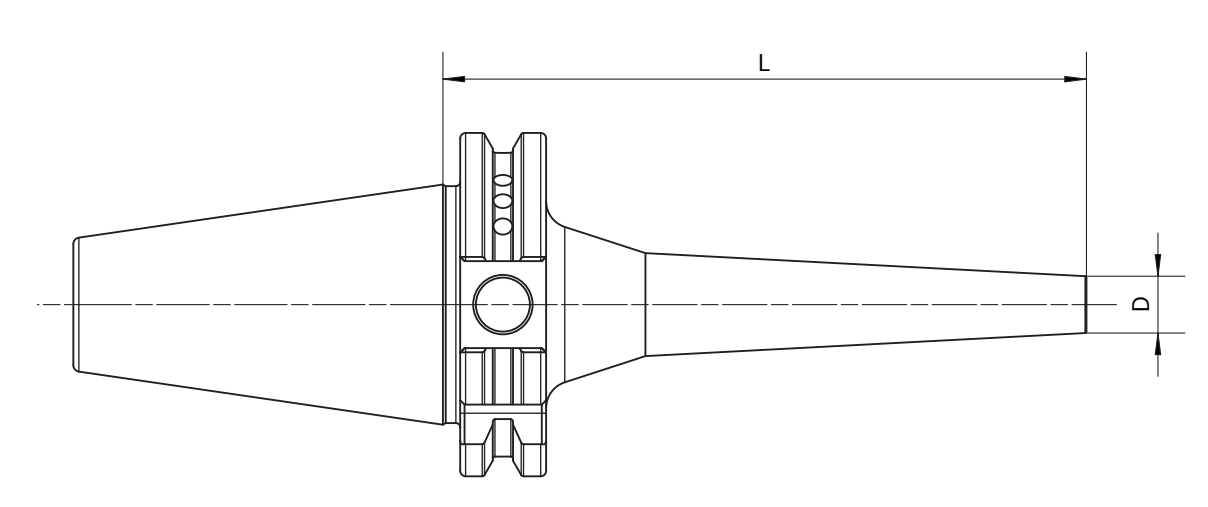

Size D L Capacity
SK30-DC06-60 14 60 1-6
SK30-DC06-90 14 90 1-6
SK30-DC06-120 14 120 1-6
SK30-DC08-60 22 60 1-10
SK30-DC08-90 22 90 1-10
SK30-DC08-120 22 120 1-10
SK30-DC12-80 34 80 1-12
SK40-DC06-60 14 60 1-6
SK40-DC06-90 14 90 1-6
SK40-DC06-120 14 120 1-6
SK40-DC06-150 14 150 1-6
SK40-DC08-60 22 60 1-10
SK40-DC08-90 22 90 1-10
SK40-DC08-120 22 120 1-10
SK40-DC08-150 22 150 1-10
SK40-DC08-200 22 200 1-10
SK40-DC12-90 34 90 1-12
SK40-DC12-120 34 120 1-12
SK40-DC12-150 34 150 1-12
SK40-DC12-200 34 200 1-12
SK50-DC06-110 14 110 1-6
SK50-DC06-150 14 150 1-6
SK50-DC08-110 22 110 1-10
SK50-DC08-150 22 150 1-10
SK50-DC08-200 22 200 1-10
SK50-DC12-120 34 120 1-12
SK50-DC12-150 34 150 1-12
SK50-DC12-200 34 200 1-12
