Morse Taper Adapter DIN6364
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification

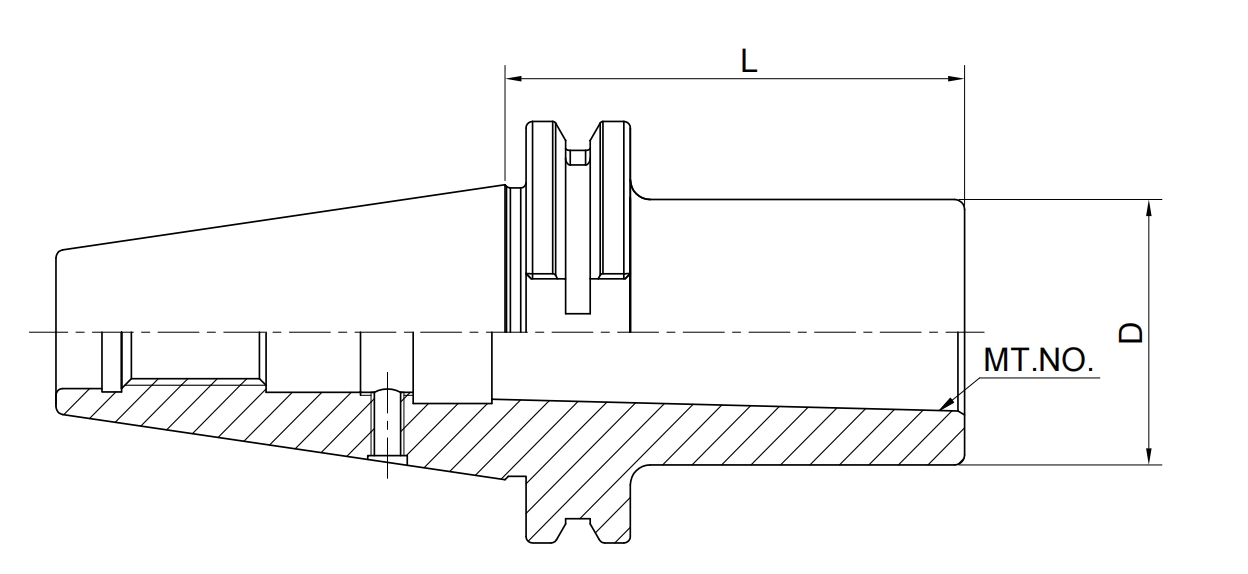

- Simple figure
- Precautions

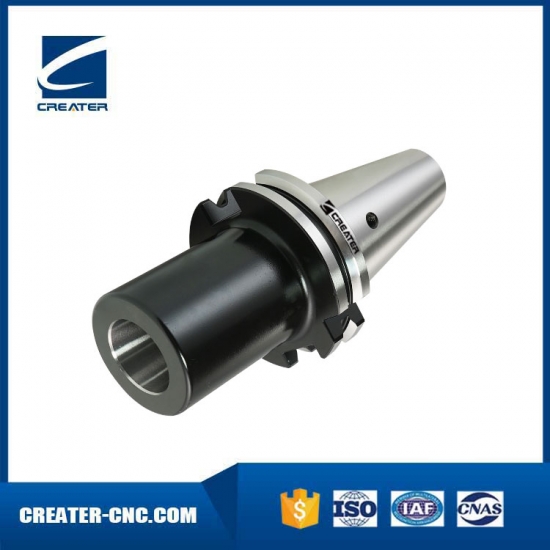

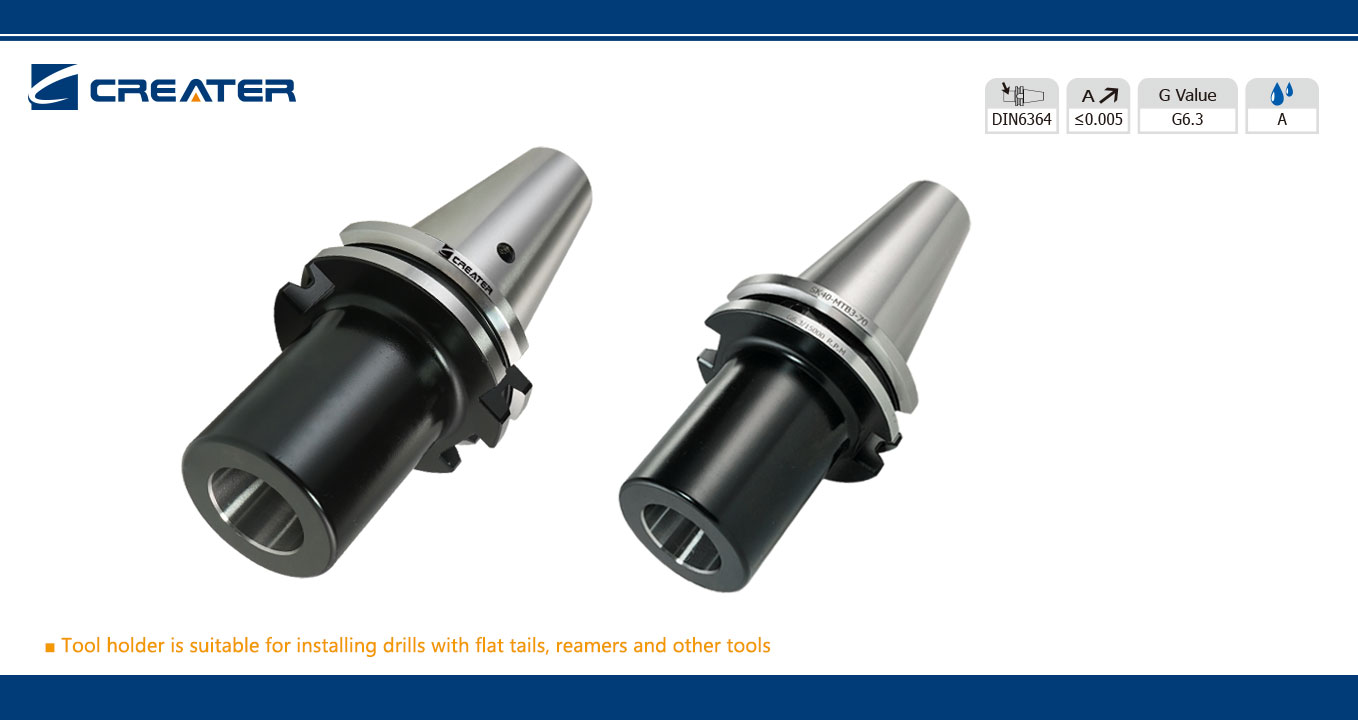

DIN 69871 MTB Morse Taper Adapter with Drawbar DIN6364
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: DIN69871 MORSE TAPER ADAPTER with DRAWBAR is for holding tools with morse tapers and tang according to DIN 228-1 form B.
| Size | MT. NO. | D | L |
| SK40-MTB1-50 | 1 | 25 | 50 |
| SK40-MTB2-50 | 2 | 32 | 50 |
| SK40-MTB3-70 | 3 | 40 | 70 |
| SK40-MTB4-95 | 4 | 48 | 95 |
| SK50-MTB1-45 | 1 | 25 | 45 |
| SK50-MTB2-60 | 2 | 32 | 60 |
| SK50-MTB3-65 | 3 | 40 | 65 |
| SK50-MTB4-70 | 4 | 48 | 70 |
| SK50-MTB5-100 | 5 | 63 | 100 |
