Products

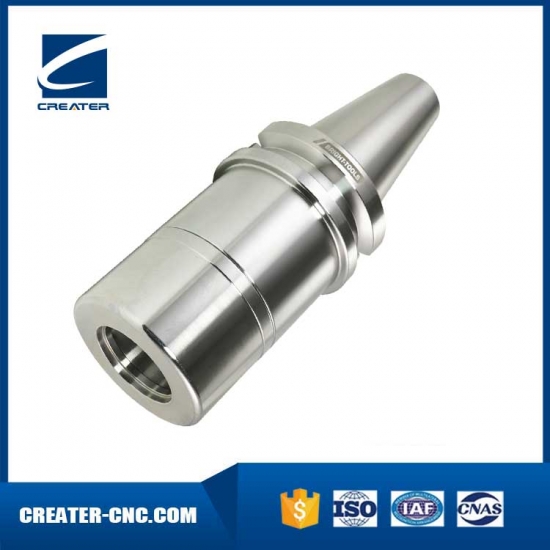

High Speed SKS Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdap |
| Lead Time: | 20-30 |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

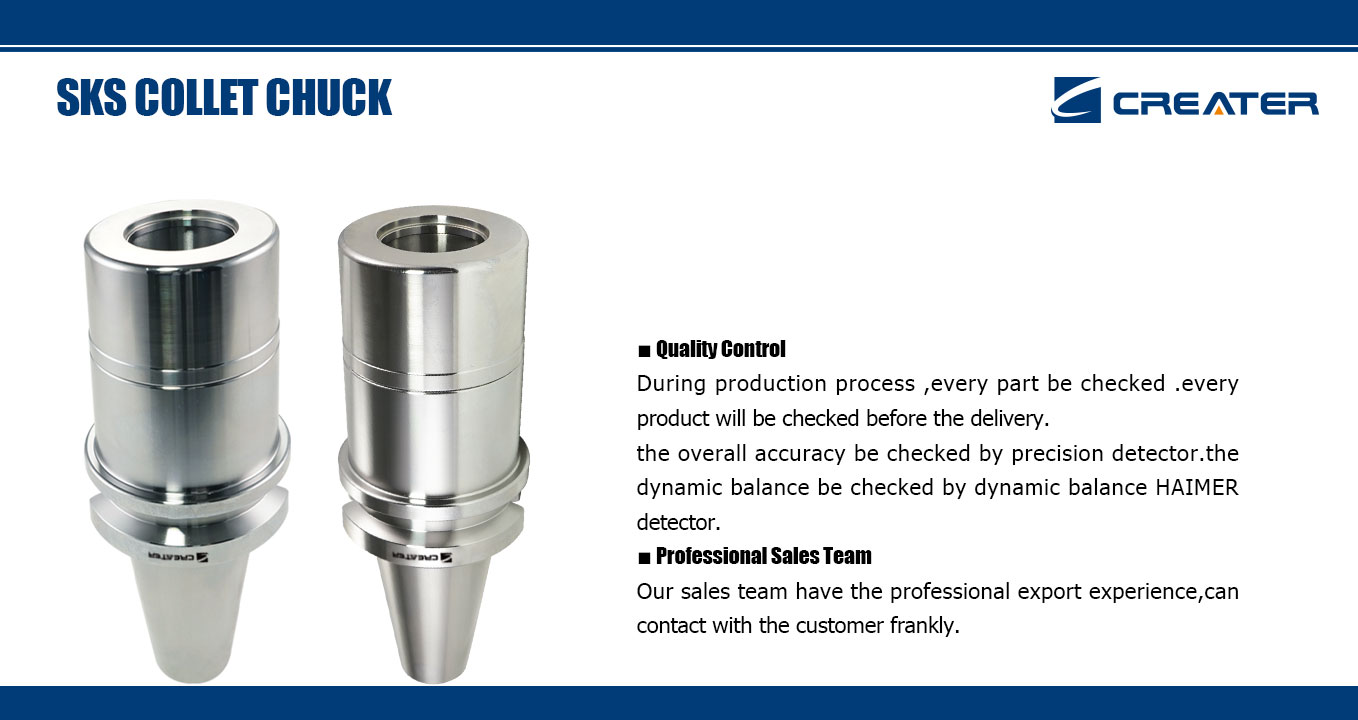

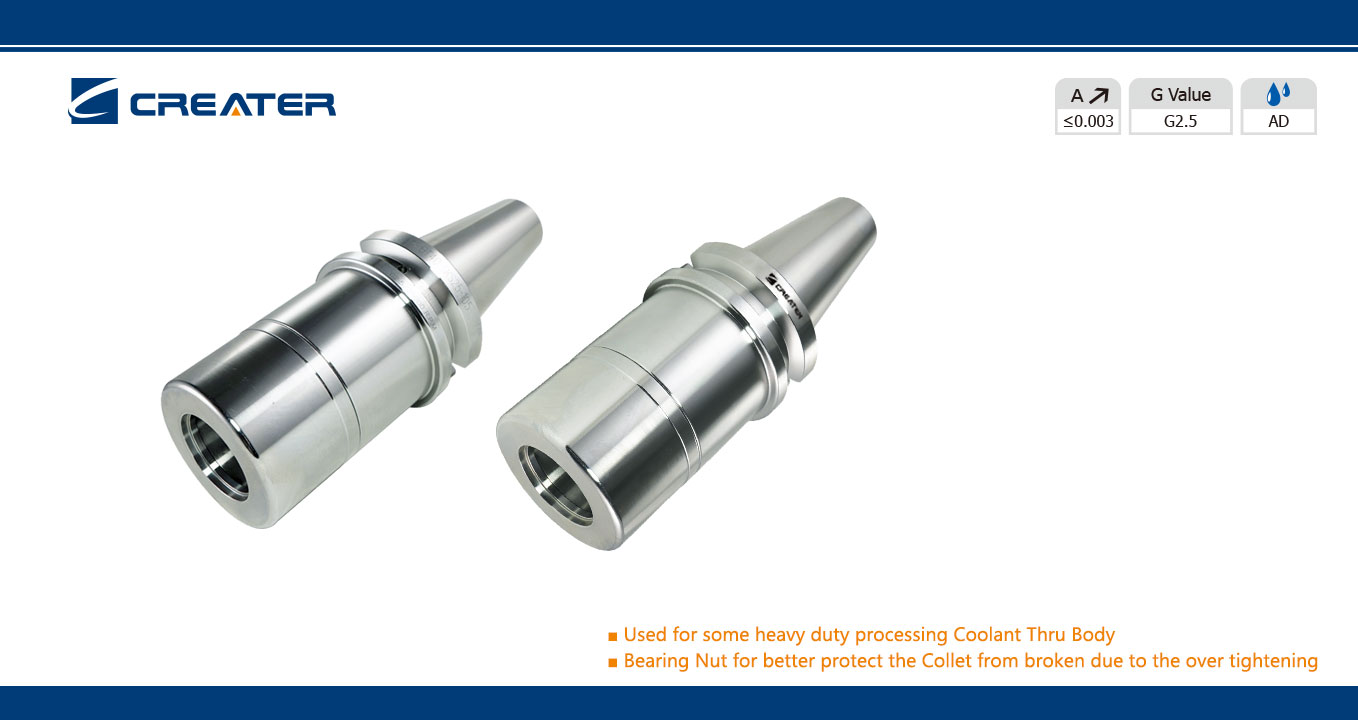

High Speed SKS Collet Chuck
7/24 Taper : AT3
Accuracy: 0.003mm
Balancing speed:G2.5/ 25000rp
Surface: sand blasting, plating
Use: For High speed working especially electric working

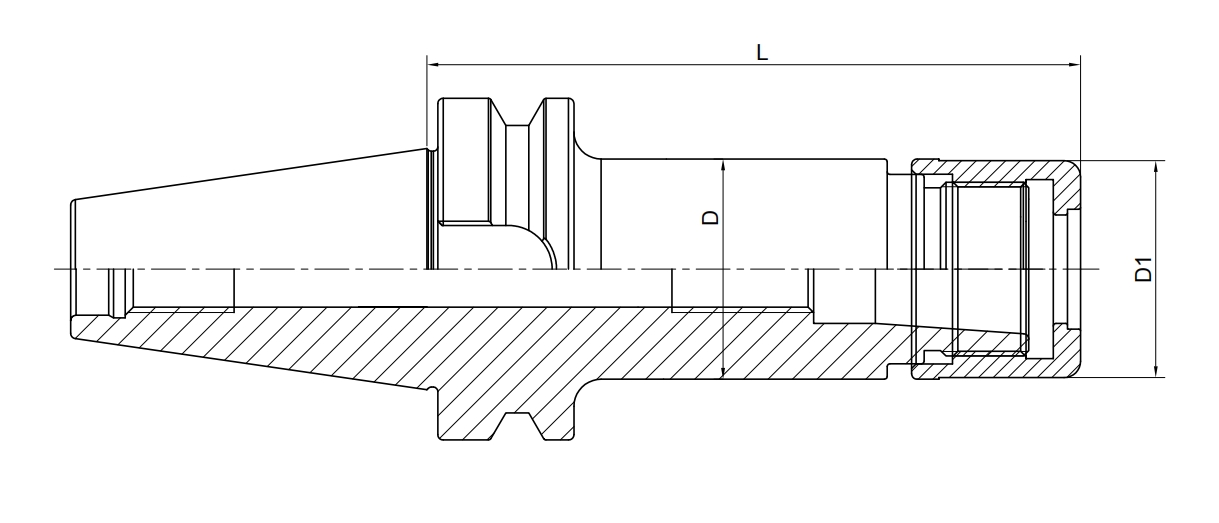

| Size | D | D1 | L | Capacity | M |
| BT30-SKS10-60 | 27.5 | 27.1 | 60 | 2-10 | M21.5*1 |
| BT30-SKS16-60 | 40.6 | 40 | 60 | 3-16 | M32*1.5 |
| BT30-SKS10-90 | 27.5 | 27.1 | 90 | 2-10 | M21.5*1 |
| BT30-SKS16-90 | 40.6 | 40 | 90 | 3-16 | M32*1.5 |
| BT40-SKS10-60 | 27.5 | 27.1 | 60 | 2-10 | M21.5*1 |
| BT40-SKS16-70 | 40.6 | 40 | 70 | 3-16 | M32*1.5 |
| BT40-SKS10-90 | 27.5 | 27.1 | 90 | 2-10 | M21.5*1 |
| BT40-SKS16-90 | 40.6 | 40 | 90 | 3-16 | M32*1.5 |
| BT40-SKS20-90 | 48.5 | 48 | 90 | 2-20 | M40*1 |
| BT40-SKS25-90 | 55.6 | 55 | 90 | 6-25 | M45*1.5 |
| BT40-SKS10-120 | 27.5 | 27.1 | 120 | 2-10 | M21.5*1 |
| BT40-SKS16-120 | 40.6 | 40 | 120 | 3-16 | M32*1.5 |
| BT40-SKS20-120 | 48.5 | 48 | 120 | 2-20 | M40*1 |
| BT40-SKS25-120 | 55.6 | 55 | 120 | 6-25 | M45*1.5 |
| BT50-SK10-100 | 27.5 | 27.1 | 100 | 2-10 | M21.5*1 |
| BT50-SK16-100 | 40.6 | 40 | 100 | 3-16 | M32*1.5 |
| BT50-SKS10-120 | 27.5 | 27.1 | 120 | 2-10 | M21.5*1 |
| BT50-SKS16-120 | 40.6 | 40 | 120 | 3-16 | M32*1.5 |
| BT50-SKS10-165 | 27.5 | 27.1 | 165 | 2-10 | M21.5*1 |
| BT50-SKS16-165 | 40.6 | 40 | 165 | 3-16 | M32*1.5 |
