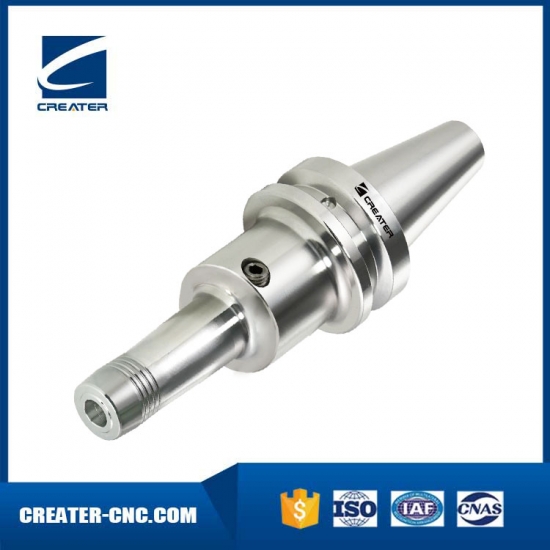

MAS403 BT Hydraulic Chuck,for Mould Tool,Suppliers,Manufacturers,Wholesalers

BT type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

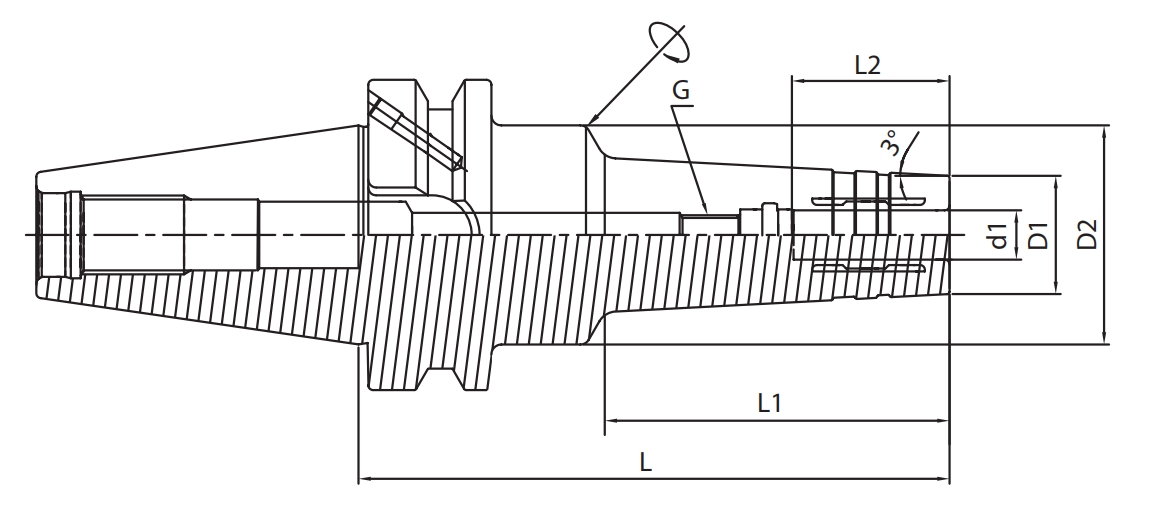

Size	d1	D1	D2	L	L1	L2	G
BT40-HYM6-120	6	20	44.5	120	70	27	M5
BT40-HYM6-150	6	20	44.5	150	100	27	M5
BT40-HYM8-120	8	22	44.5	120	70	27	M6
BT40-HYM8-150	8	22	44.5	150	100	27	M6
BT40-HYM10-120	10	24	44.5	120	70	32	M8×1
BT40-HYM10-150	10	24	44.5	150	100	32	M8×1
BT40-HYM12-120	12	25	44.5	120	70	37	M10×1
BT40-HYM12-150	12	25	44.5	150	100	37	M10×1
BT40-HYM16-120	16	32	44.5	120	70	42	M12×1
BT40-HYM16-150	16	32	44.5	150	100	42	M12×1
BT40-HYM20-120	20	34	43.8	120	93	42	M16×1
BT40-HYM20-150	20	34	46.9	150	123	42	M16×1

BT50-HYM6-150	6	20	50	150	90	27	M5
BT50-HYM8-150	8	22	50	150	90	27	M6
BT50-HYM10-150	10	24	50	150	90	32	M8×1
BT50-HYM12-150	12	25	50	150	90	37	M10×1
BT50-HYM16-150	16	32	50	150	90	42	M12×1
BT50-HYM20-150	20	34	50	150	90	42	M16×1

High precision 0.003mm
Better anti-vibration result
High precision machining
