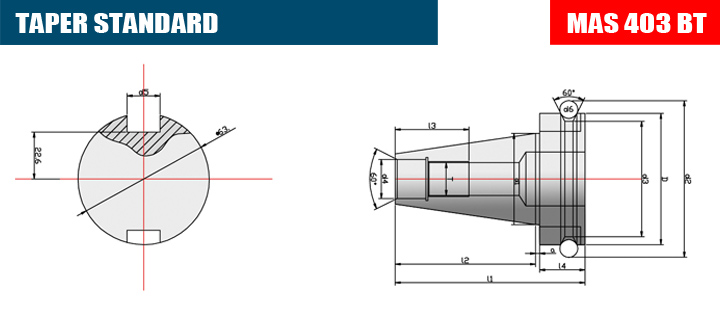

Model	D	d1	d2	d3	d4	d5	d6	l1	l2	l3	l4	a	T
BT30	46	31.75	56.14	38	12.5	16.1	8	70.4	48.4	24	20	2	M12×1.75
BT40	63	44.45	75.679	53	17	16.1	10	92.4	65.4	30	25	2	M16×2.0
BT50	100	69.85	119.02	83	25	25.7	15	139.8	101.8	45	35	3	M24×3.0

BT20, BT30, BT40, BT50 Tool Holders

Tool Holder critical surface are precision ground, manufactured from alloy steel with good core strength and long wear life.

Big Plus Dual Contact BBT40 Tool Holders can be made by request.

MAS403 BT Alignment Tool For ATC Arm
Alignment Tool For ATC Arm

ATC Arm Alignment tools is used to correct the Arm position, Long-term use of the Arm will cause different degrees of wear and deformation, so that the tool cannot be effectively clamped, stored in the tool warehouse, and the Alignment tool can effectively adjust the Arm position to solve this problem
MAS403 BT Test Arbor
Test Arbor

Used for detecting the concentricity of the spindle.

Wooden box packing, store vertically to prevent the detection rod from being deformed and losing accuracy due to horizontal storage.

Accuracy: <0.003mm
MAS403 BT Boring Bar Blank
Boring Bar Blank

Tool holder blanks is widely used for secondary processing

Taper with collar, hardened and ground, Hardness 50-55HRC.

Soft shank for further machining, Hardness 35-45HRC
MAS403 BT Runout Adjustable Flange Adapter
MAS 403 BT Runout Adjustable Flange Adapter

Flange tool holders need to be used in conjunction with flange cutters.

The flange holder can adjust the tool to within 1u jump through the handle screw.

Generally used in the manufacture of high precision machining industries such as automobiles/aerospace
MAS 403 BT Screw-in Milling Cutter Holder

MAS 403 BT SOM tool holder is connected the tools directly, this improve processing accuracy, rigidity and easy to make tools exchange

1. High precision

2. High rigidity, improving quality and reducing consumption.

3. Improve efficiency.

4. Convenience
MAS 403 BT End Mill Holder Whistle Notch
Easy to use for clamping tools and disassemble tools.

This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet.
MAS 403 BT End Mill Holder with Coolant Channels

BT End mill holders hold cutting tools with more rigidity than collets.

Available in Weldon type for using tools with Weldon flats. Easy to use for clamping tools and disassemble tools. This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet
MAS 403 Pull Back Collet Chuck
Pull Back Collet Chuck

Built-in collet design

More suitable for high speed machining

Reduced interference when machining without nuts
MAS 403 TG Collet Chuck
BT-TG Collet chuck, Nut with steel ball increase the holding power by 75%, can be used for heavy-duty processing
JIS B 6339 BT Tool Holder Adatper Sleeve
It realize the exchange between BT30& BT40, BT40&BT50
