High Speed GER Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Lead Time: | 20-30days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

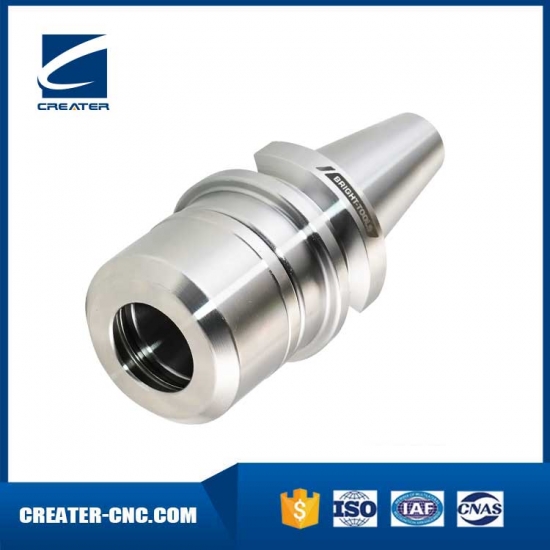

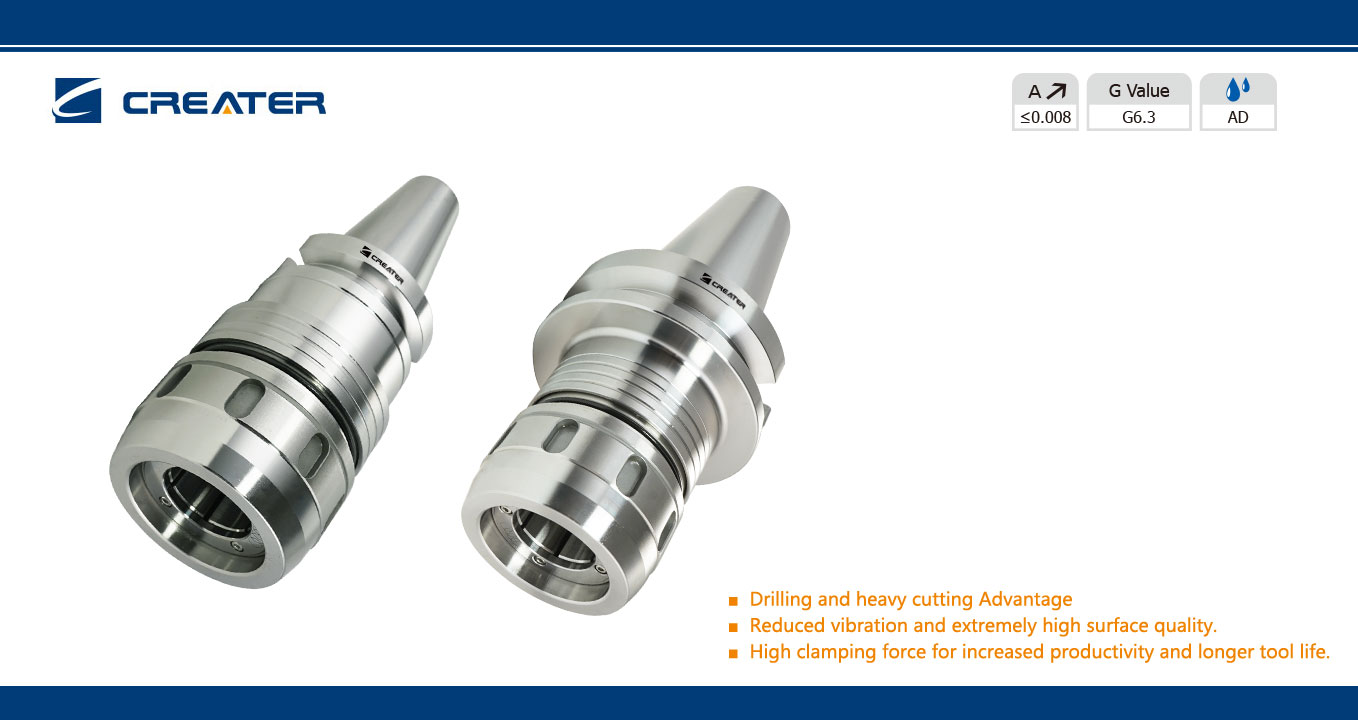

High Speed GER Collet Chuck
Feature: High speed GER nut without any slots
Surface: Blackening plating sand blasting
Balancing: G6.3/150000rpm
7/24 Taper: AT3

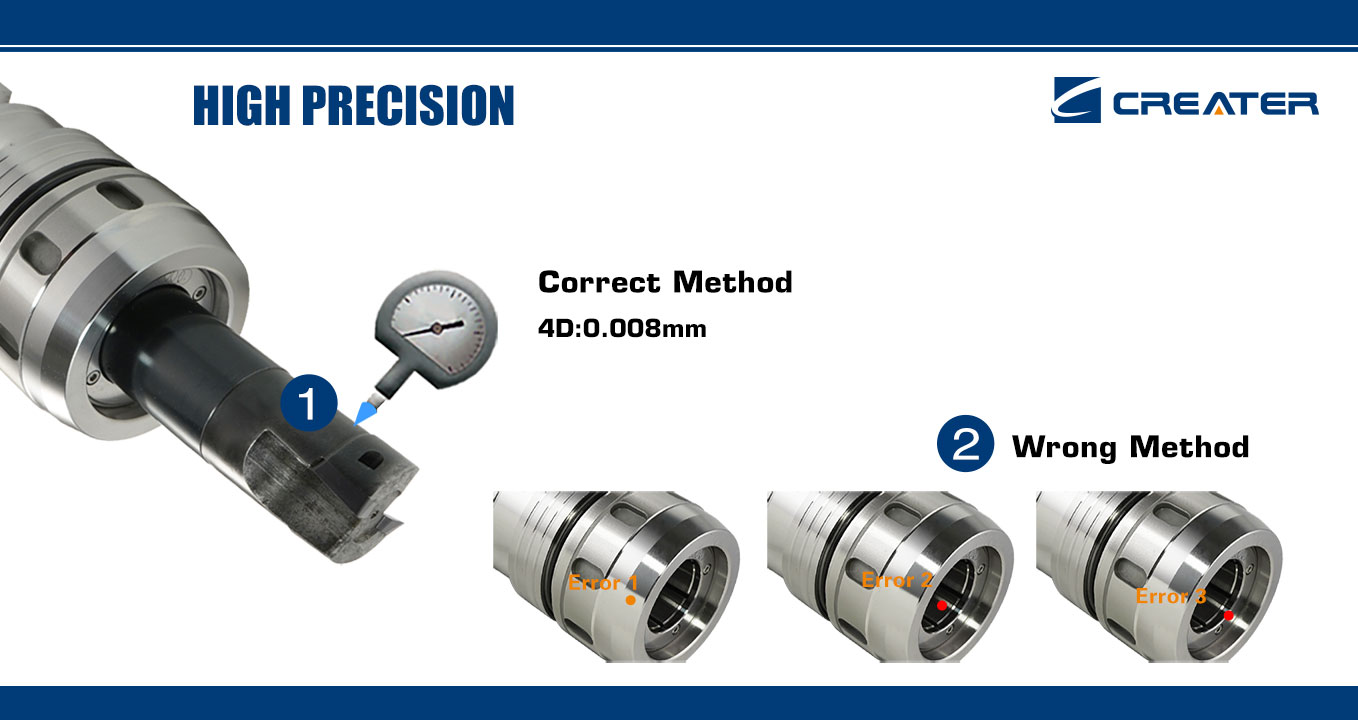

Accuracy: 0.005mm

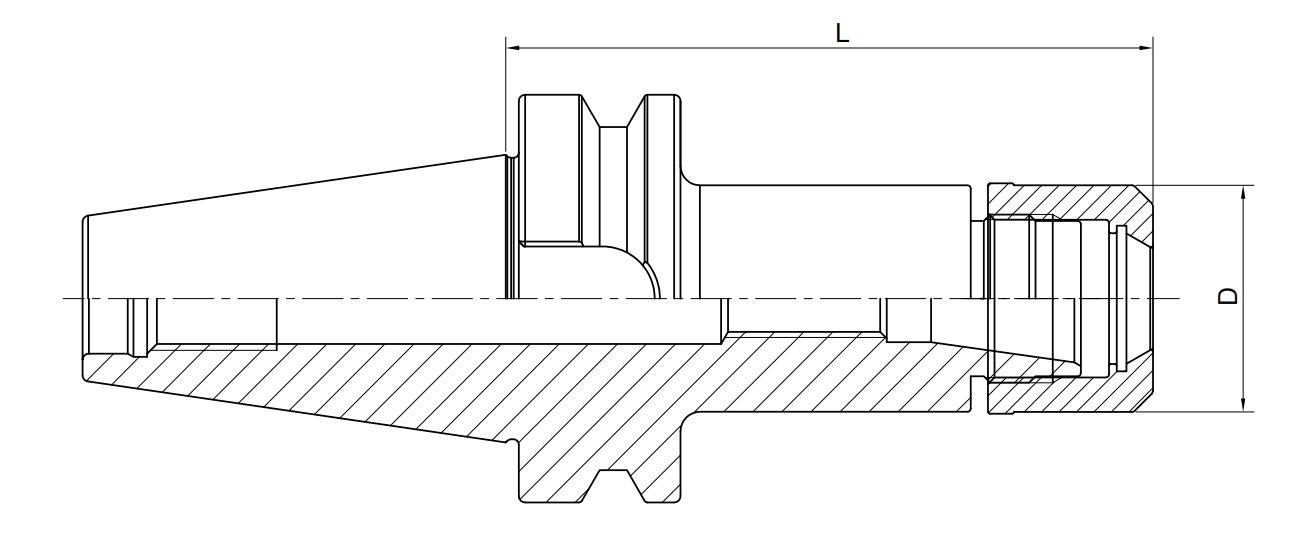

| Size | D1 | L | Capacity |
| BT30-GER16-70 | 27 | 70 | 1-10 |
| BT30-GER20-70 | 30 | 70 | 1-13 |
| BT30-GER25-70 | 40 | 70 | 2-16 |
| BT30-GER32-70 | 48 | 70 | 2-20 |
| BT40-GER16-70 | 27 | 70 | 1-10 |
| BT40-GER20-70 | 30 | 70 | 1-13 |
| BT40-GER25-70 | 40 | 70 | 2-16 |
| BT40-GER32-70 | 48 | 70 | 2-20 |
| BT40-GER16-100 | 27 | 100 | 1-10 |
| BT40-GER20-100 | 30 | 100 | 1-13 |
| BT40-GER25-100 | 40 | 100 | 2-16 |
| BT40-GER32-100 | 48 | 100 | 2-20 |
| BT50-GER16-100 | 27 | 100 | 1-10 |
| BT50-GER20-100 | 30 | 100 | 1-13 |
| BT50-GER25-100 | 40 | 100 | 2-16 |
| BT50-GER32-100 | 48 | 100 | 2-20 |
