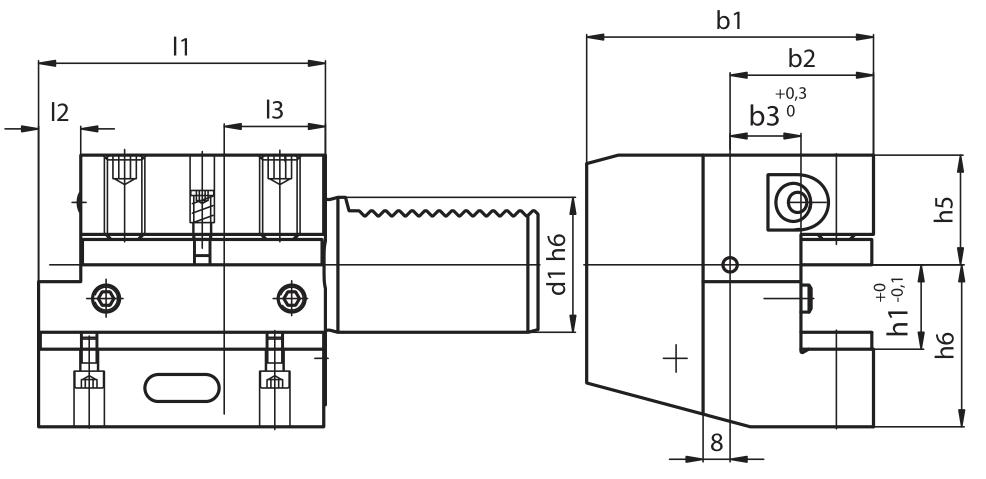

- Simple figure
- Precautions

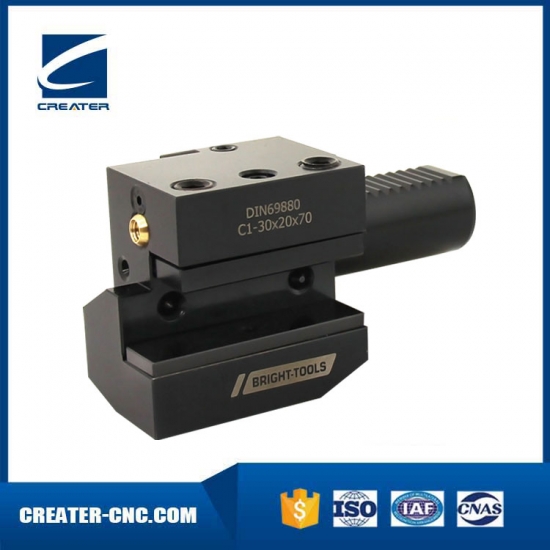

VDI Tool Holders Form C1 Square Tool Right-Hand Facing Tool Holder
Applicable Machines: CNC Lathes
Delivery: with adjustable spray nozzle and shim
Usage: mainly for external face machining.
Metric
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C1-16x12x44
16
43
24
13
12
20
22
44
5
20
C1-20x16x50
20
65
40
26
16/12
25
30
50
-
30
C1-20x16x55
20
52
27
13
16/12
25
30
55
7
30
C1-25x16x55
25
58
33
19
16/12
25
30
55
7
20
C1-30x20x70
30
70
35
17
20/16
28
38
70
10
30
C1-40x25x85
40
85
42.5
21
25/20
32.5
48
85
12.5
30
C1-50x32x100
50
100
50
26
32/25
35
60
100
16
40
C1-60x32x125
60
125
62.5
33
32/25
42.5
62.5
125
16
40
C1-80x40x160
80
160
80
42
40/32
55
80
160
20
40
Inch
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
l3
C1-20x5/8"x50
20
65
40
26
5/8"
25
30
50
-
30
C1-30x3/4"x70
30
70
35
17
3/4"
28
38
70
10
30
C1-40x1"x85
40
85
42.5
21
1"
32.5
48
85
12.5
30
C1-50x1-1/4" x100
50
100
50
26
1-1/4"
35
60
100
16
40
C1-60x1-1/4" x125
60
125
62.5
33
1-1/4"
42.5
62.5
125
16
40
