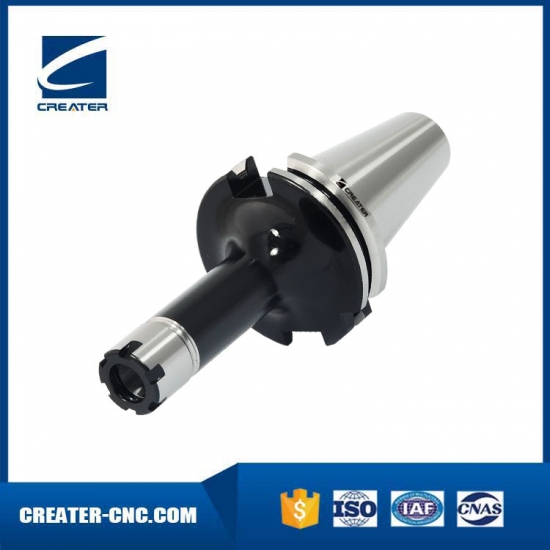

ER Collet Chuck with Mini Nut
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening, Sandblasting, Plating |
| Lead Time: | 25 days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

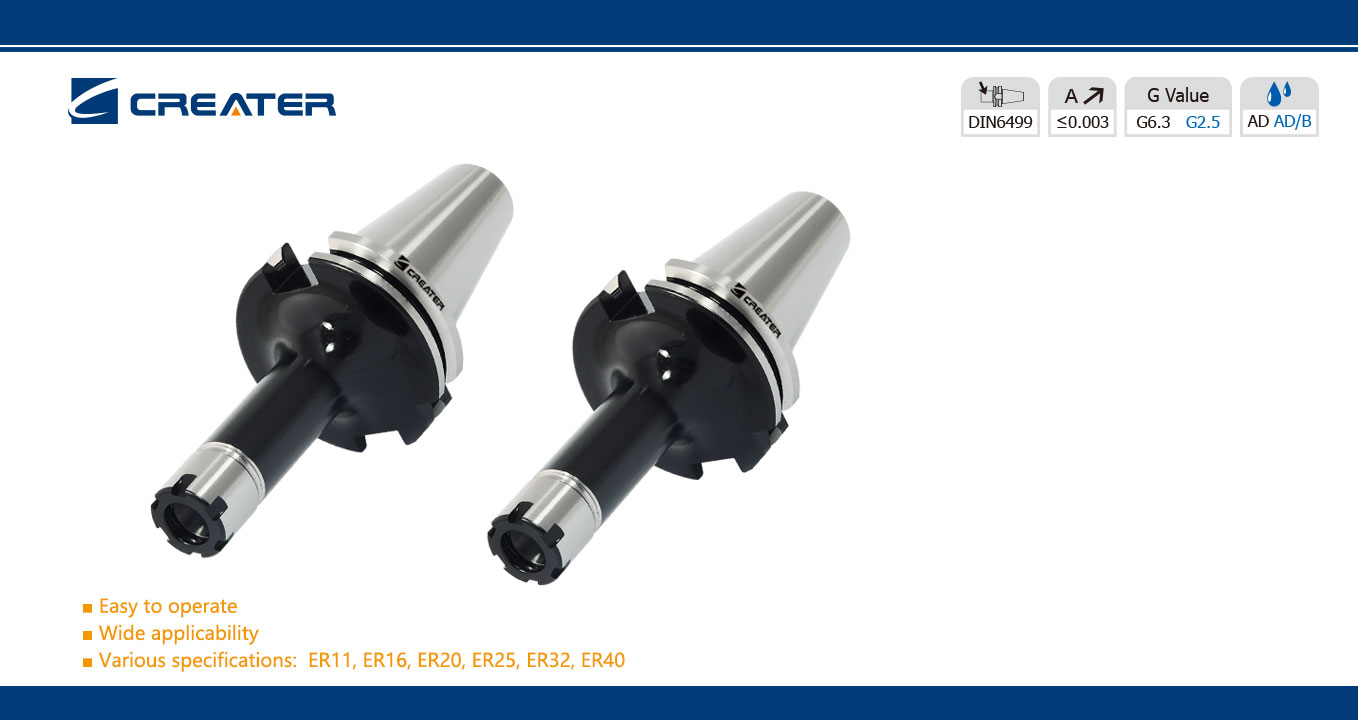

DIN 69871 SK ER Collet Chuck with Mini Nut DIN6499
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000; G2.5/25000
Surface Treatment: Blackening

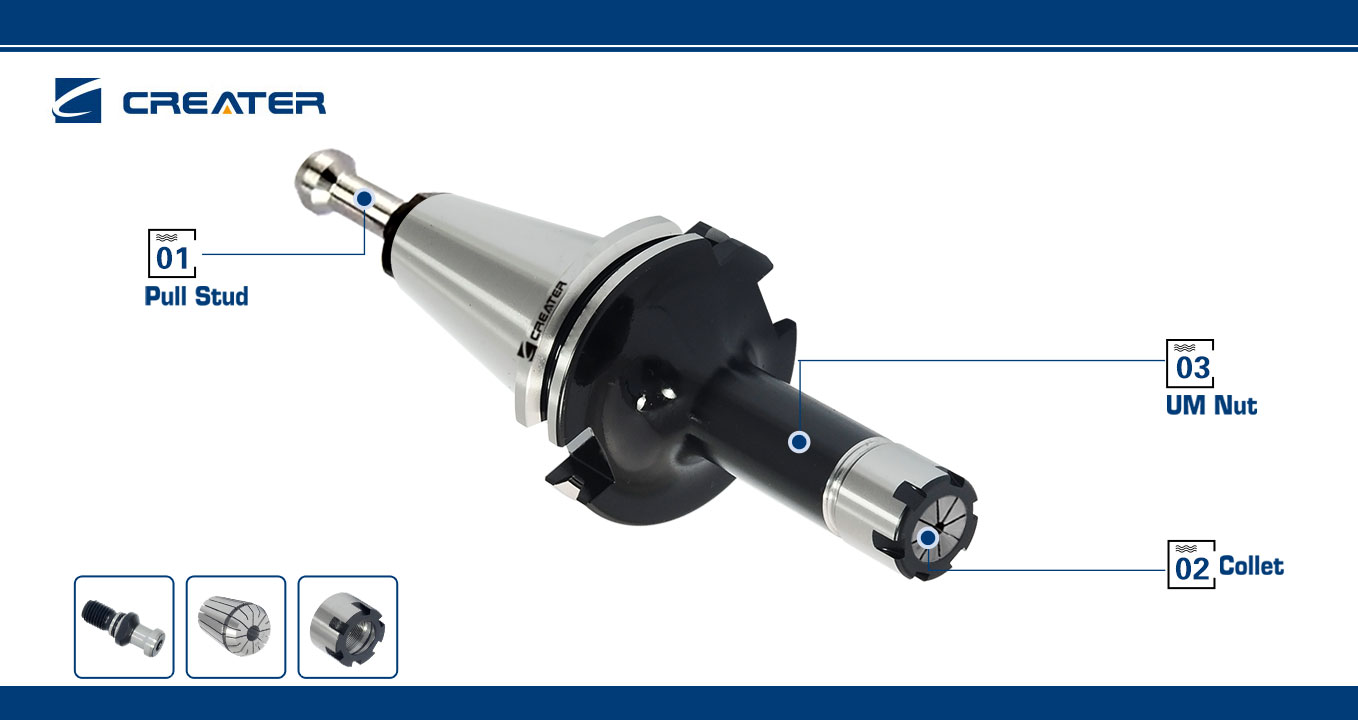

Application: DIN69871 SK Collet Chucks with Mini Nuts are for mounting straight shank tools in collets DIN6499.

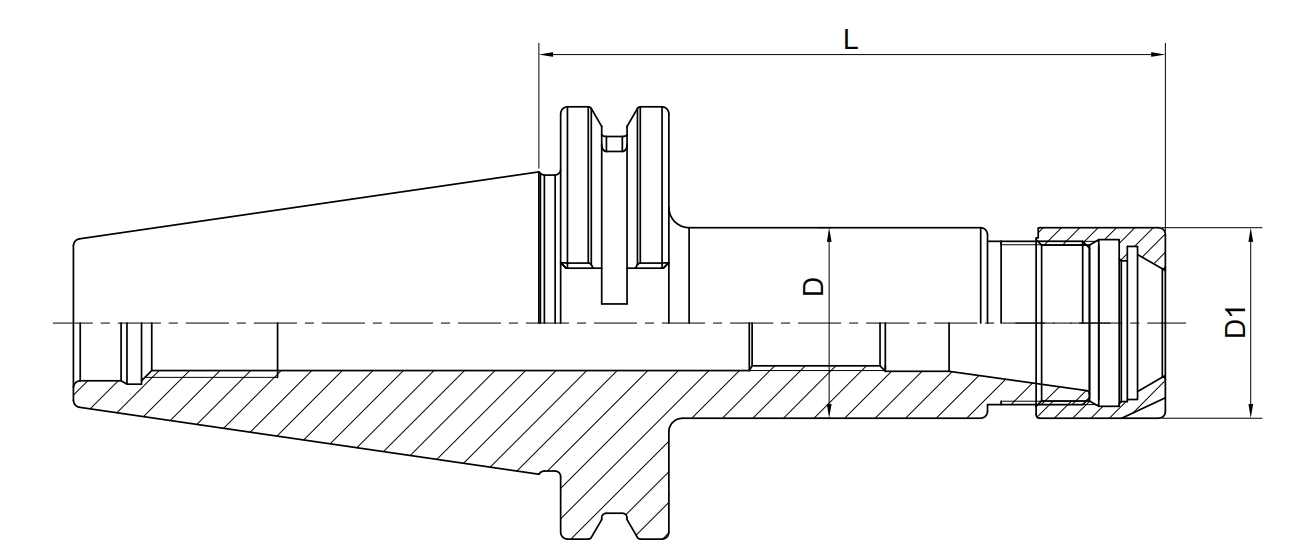

| Size | D | D1 | L | Capacity |
| SK40-ER11M-70 | 16 | 16 | 70 | 1-7 |
| SK40-ER16M-70 | 22 | 22 | 70 | 1-10 |
| SK40-ER20M-70 | 28 | 28 | 70 | 1-13 |
| SK40-ER25M-70 | 35 | 35 | 70 | 2-16 |
| SK40-ER11M-100 | 16 | 16 | 100 | 1-7 |
| SK40-ER16M-100 | 22 | 22 | 100 | 1-10 |
| SK40-ER20M-100 | 28 | 28 | 100 | 1-13 |
| SK40-ER25M-100 | 35 | 35 | 100 | 2-16 |
| SK40-ER11M-160T | 16 | 16 | 160 | 1-7 |
| SK40-ER16M-160T | 22 | 22 | 160 | 1-10 |
| SK40-ER20M-160 | 28 | 28 | 160 | 1-13 |
| SK40-ER25M-160 | 35 | 35 | 160 | 2-16 |
| SK50-ER16M-70 | 22 | 22 | 70 | 1-10 |
| SK50-ER20M-70 | 28 | 28 | 70 | 1-13 |
| SK50-ER25M-70 | 35 | 35 | 70 | 2-16 |
| SK50-ER16M-100 | 22 | 22 | 100 | 1-10 |
| SK50-ER20M-100 | 28 | 28 | 100 | 1-13 |
| SK50-ER25M-100 | 35 | 35 | 100 | 2-16 |
| SK50-ER16M-160T | 22 | 22 | 160 | 1-10 |
| SK50-ER20M-160 | 28 | 28 | 160 | 1-13 |
| SK50-ER25M-160 | 35 | 35 | 160 | 2-16 |
