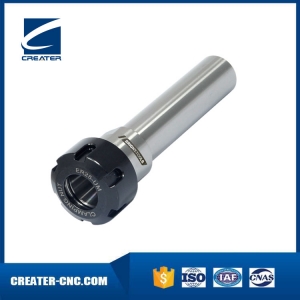

Straight Shank Collet Holders
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 2-20 Days |
| Payment: | TT Payment in Advance |
- Specification
- Simple figure
- Precautions

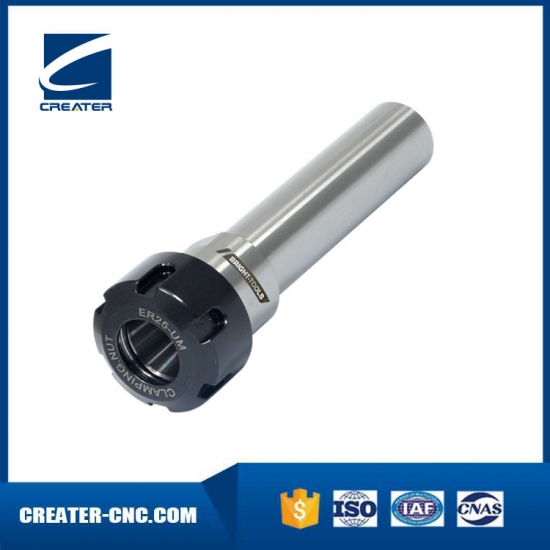

Straight Shank Collet Holders with UM Nuts
Straight shank Collet Chucks are used for clamping cutting tools in ER Collets DIN6499
Collet Chuck Runout: 0.005mm
Related Accessories: ER Collets, ER Nuts UM Type

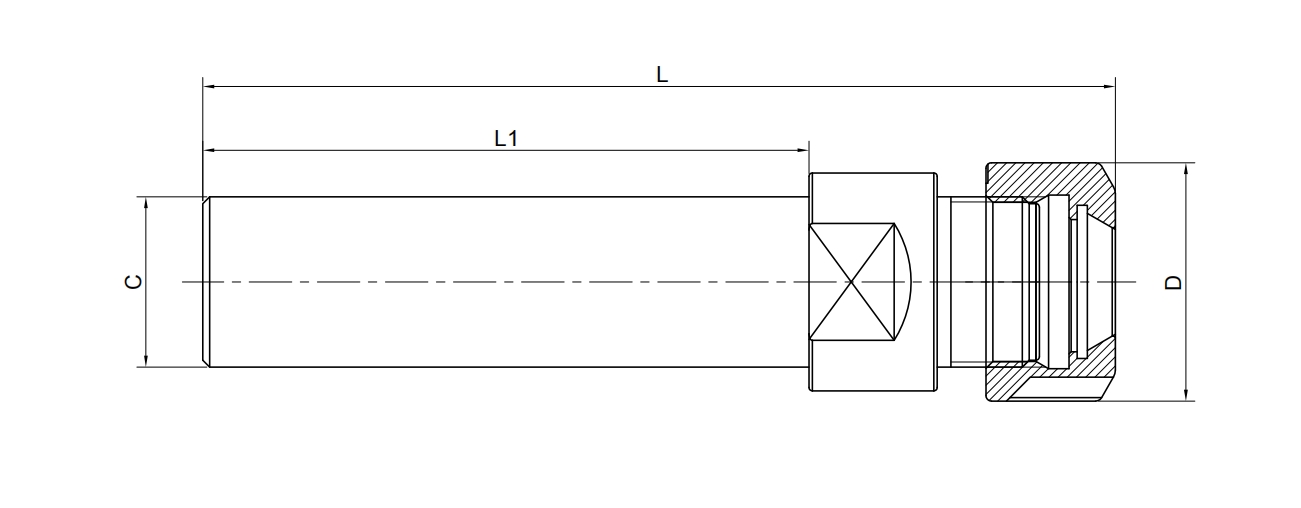

| Size | C | D | L1 | L |
| C20-ER25UM-100 | 20 | 42 | 100 | 144 |
| C25-ER25UM-100 | 25 | 42 | 100 | 144 |
| C25-ER25UM-150 | 25 | 42 | 150 | 194 |
| C25-ER25UM-200 | 25 | 42 | 200 | 244 |
| C25-ER32UM-100 | 25 | 50 | 100 | 148 |
| C32-ER25UM-100 | 32 | 42 | 100 | 144 |
| C32-ER25UM-150 | 32 | 42 | 150 | 194 |
| C32-ER32UM-100 | 32 | 50 | 100 | 148 |
| C32-ER32UM-150 | 32 | 50 | 150 | 198 |
| C32-ER32UM-200 | 32 | 50 | 200 | 248 |
| C32-ER40UM-100 | 32 | 63 | 100 | 151 |
| C40-ER32UM-100 | 40 | 50 | 100 | 148 |
| C40-ER40UM-100 | 40 | 63 | 100 | 151 |
| C40-ER40UM-150 | 40 | 63 | 150 | 201 |
