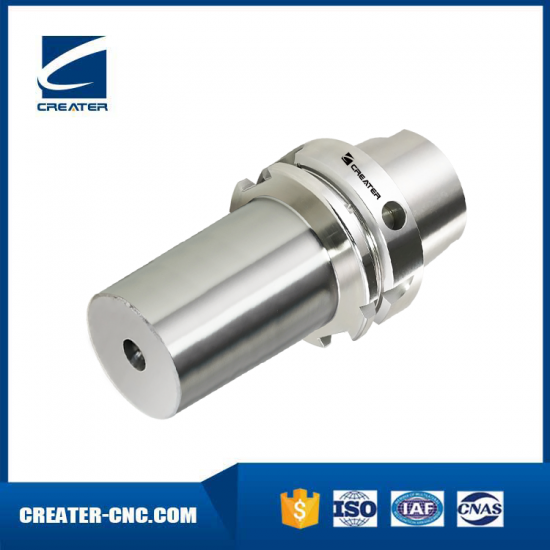

Boring Bar Blank
HSKA Tool holder blanks is widely used for secondary processing
Taper with collar, hardened and ground, Hardness 50-55HRC.
Soft shank for further machining, Hardness 35-45HRC

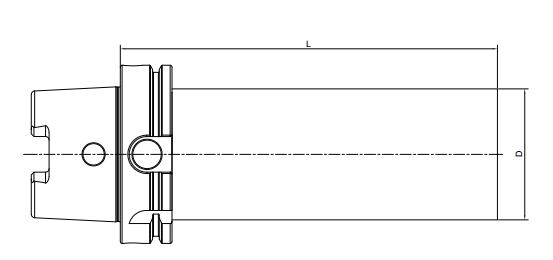

Size
D
L
HSK50A-D050-160
50
160
HSK50A-D065-200
65
200
HSK63A-D065-160
65
160
HSK63A-D065-210
65
210
HSK63A-D065-250
65
250
HSK63A-D065-300
65
300
HSK63A-D080-160
80
160
HSK63A-D080-210
80
210
HSK63A-D080-250
80
250
HSK63A-D080-300
80
300
HSK63A-D100-160
100
160
HSK63A-D100-210
100
210
HSK63A-D100-250
100
250
HSK63A-D100-300
100
300
HSK63A-D120-160
120
160
HSK63A-D120-210
120
210
HSK63A-D120-250
120
250
HSK63A-D120-300
120
300
HSK100A-D080-160
80
160
HSK100A-D080-210
80
210
HSK100A-D080-250
80
250
HSK100A-D080-300
80
300
HSK100A-D100-160
100
160
HSK100A-D100-210
100
210
HSK100A-D100-250
100
250
HSK100A-D100-300
100
300
HSK100A-D120-160
120
160
HSK100A-D120-210
120
210
HSK100A-D120-250
120
250
HSK100A-D120-300
120
300
