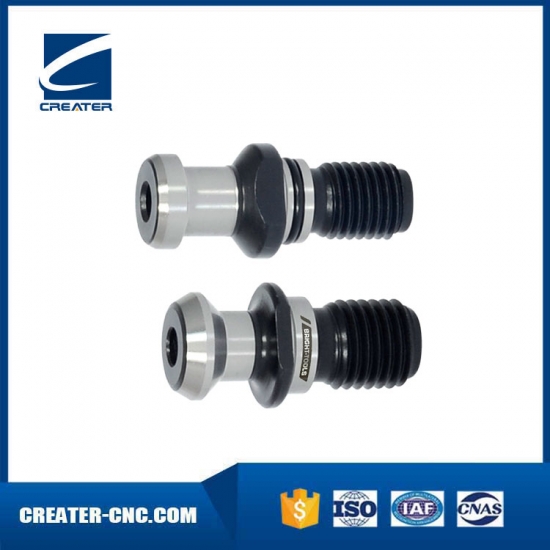

Mazak Pull Stud
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 15 Days |
- Specification

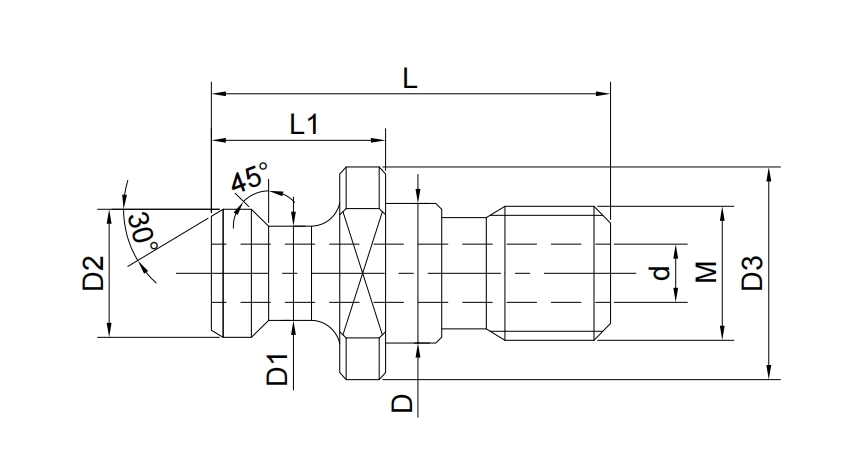

- Simple figure
- Precautions
Mazak Pull Stud
| Size | L | L1 | D2 | D1 | D3 | D | d | M |
| Mazak-BT40 C | 44.1 | 19.1 | 18.8 | 12.45 | 22 | 17 | 7 | M16 |
| Mazak-BT50 C | 65.2 | 25.2 | 29 | 20.83 | 37 | 25 | 10 | M24 |
| Mazak-BT40 CO | 44.1 | 19.1 | 18.8 | 12.45 | 22 | 17 | 7 | M16 |
| Mazak-BT50 CO | 65.2 | 25.2 | 29 | 20.83 | 37 | 25 | 10 | M24 |
| Size | D | D1 | D2 | D3 | L | L1 | L2 | M |
| Mazak-CAT40 C | 22 | 17 | 18.79 | 12.5 | 41.25 | 16.25 | 11.17 | M16 |
| Mazak-CAT50 C | 35.6 | 25 | 28.95 | 20.82 | 65.4 | 25.4 | 17.78 | M24 |
| Mazak-CAT40 CO | 22 | 17 | 18.79 | 12.5 | 41.25 | 16.25 | 11.17 | M16 |
| Mazak-CAT50 CO | 35.6 | 25 | 28.95 | 20.82 | 65.4 | 25.4 | 17.78 | M24 |
| Size | L | L1 | D2 | D1 | D3 | D | d | M |
| Mitsui-BT40 C | 44.1 | 19.1 | 15 | 10 | 23 | 17 | - | M16 |
| Mitsui-BT50 C | 65.2 | 25.2 | 24 | 18 | 26 | 25 | - | M24 |
| Mitsui-BT40 CO | 44.1 | 19.1 | 15 | 10 | 23 | 17 | - | M16 |
| Mitsui-BT50 CO | 65.2 | 25.2 | 24 | 18 | 26 | 25 | - | M24 |
