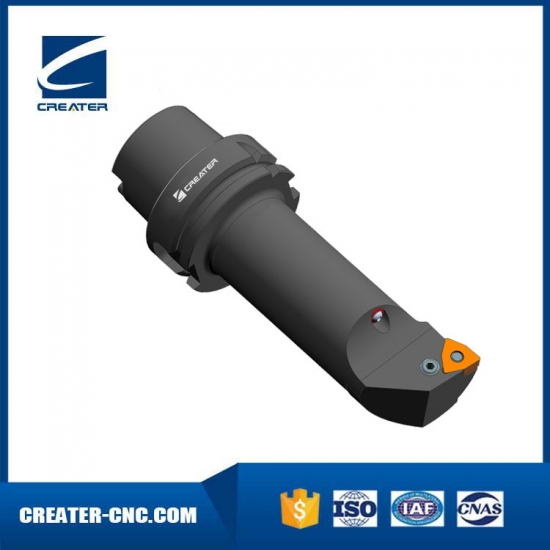

HSK63T and HSK100T Holder for CN Type Negative Inserts
For general external turning operations
Permits use of the obtuse edge of a standard CNMG insert
Pin Lock clamping
Suitable for CN..1204, CN.1606 and CN.1906 inserts
Insert clamping system: P
Insert shape code: C
Tool cutting edge angle code: L
Insert clearance angle: N
Direction of cutting: Both R and L are available
Tool cutting edge angle: 95 deg.

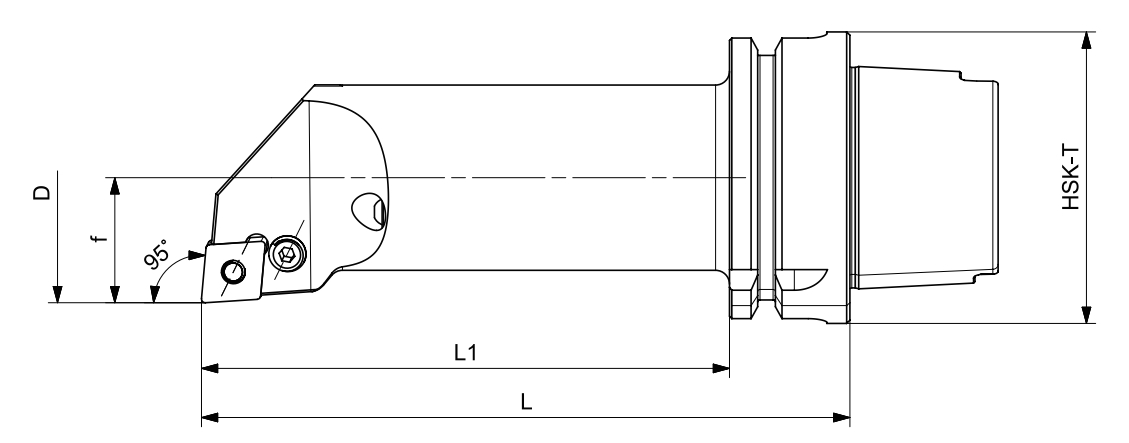

Size
f
D
L
L1
Direction
Inserts N.
HSK63T-PCLNR-27140-12
27
50
140
114
R
CN..1204..
HSK63T-PCLNL-27140-12
27
50
140
114
L
CN..1204..
HSK63T-PCLNR-27180-12
27
50
180
154
R
CN..1204..
HSK63T-PCLNL-27180-12
27
50
180
154
L
CN..1204..
HSK100T-PCLNR-27150-12
27
50
150
121
R
CN..1204..
HSK100T-PCLNL-27150-12
27
50
150
121
L
CN..1204..
HSK100T-PCLNR-27200-12
27
50
200
171
R
CN..1204..
HSK100T-PCLNL-27200-12
27
50
200
171
L
CN..1204..
HSK100T-PCLNR-35150-12
35
63
150
121
R
CN..1204..
HSK100T-PCLNL-35150-12
35
63
150
121
L
CN..1204..
HSK100T-PCLNR-35200-12
35
63
200
171
R
CN..1204..
HSK100T-PCLNL-35200-12
35
63
200
171
L
CN..1204..
-
