- Specification

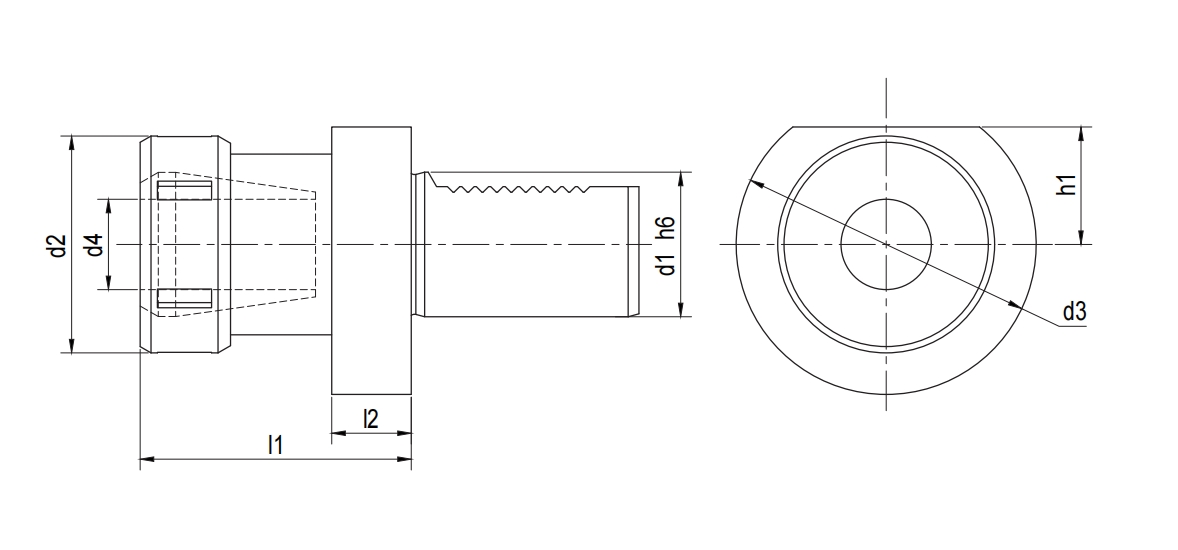

- Simple figure
- Precautions

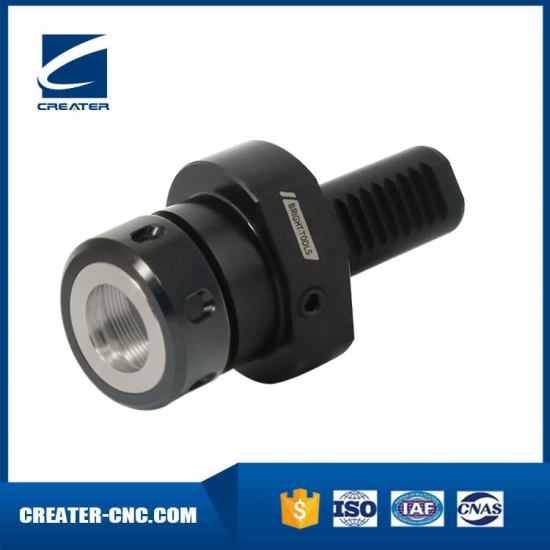

VDI Collet Chuck E3
VDI Tool Holder is a Quick Change Tool holding System, it provides a fast and accurate way of affixing tools to the Turret;Tool Changes are performed in seconds. Boring Bar Holders can be Preset.
Metric sizes can be ordered directly, Inch sizes can be make by request.
VDI Collet Chuck E3 Collet Holder working together with OZ Collets DIN 6388
Size
d1
d2
d3
d4
h1
l1
l2
E3-16xOZ16
16
43
40
2-16
-
57
13
E3-20xOZ16
20
43
50
2-16
-
57
18
E3-25xOZ16
25
43
58
2-16
25
57
18
E3-30xOZ16
30
43
68
2-16
28
57
22
E3-30xOZ25
30
60
68
2-25
28
75
22
E3-30xOZ32
30
72
68
4-32
28
90
22
E3-40xOZ16
40
43
83
2-16
32.5
57
22
E3-40xOZ25
40
60
83
2-25
32.5
75
22
E3-40xOZ32
40
72
83
4-32
32.5
90
22
E3-50xOZ25
50
60
98
2-25
35
75
30
E3-50xOZ32
50
72
98
4-32
35
90
30
E3-60xOZ25
60
60
123
2-25
42.5
75
30
E3-60xOZ32
60
72
123
4-32
42.5
90
30
E3-80xOZ25
80
60
158
2-25
55
85
40
E3-80xOZ32
80
72
158
4-32
55
95
40
