Collet Chuck Mini Nuts
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening Tool Holders |
| Lead Time: | 3-30 days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

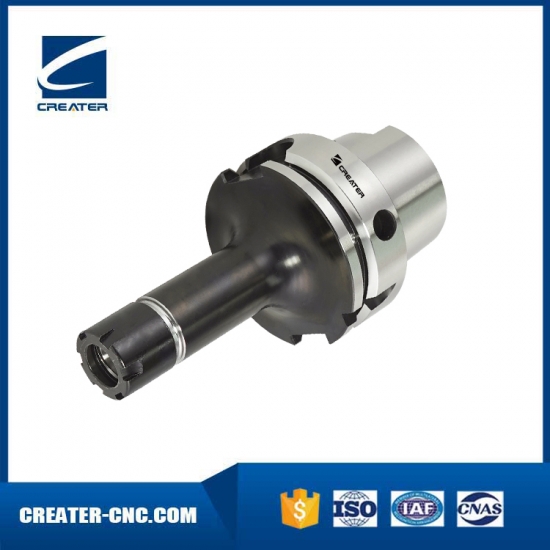

HSK Collet Chucks with Mini Nuts for DIN6499B ER Collets
Taper: DIN69893 HSK Tool Holders; Inspected with Diebold Gauges
Run out: within 0.003mm
Balancing : G2.5/25000 RPM

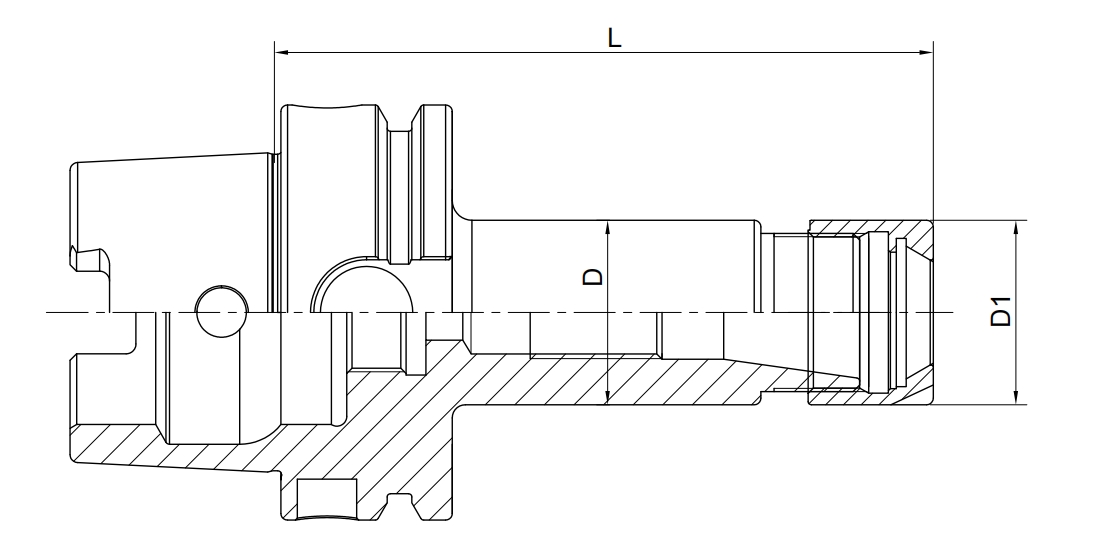

| Size | D | D1 | L1 | Capacity |
| HSK32A-ER11M-50 | 16 | 16 | 50 | 1-7 |
| HSK32A-ER16M-50 | 22 | 22 | 50 | 1-10 |
| HSK32A-ER20M-50 | 28 | 28 | 50 | 1-13 |
| HSK40A-ER11M-40 | 16 | 16 | 40 | 1-7 |
| HSK40A-ER16M-60 | 22 | 22 | 60 | 1-10 |
| HSK40A-ER20M-60 | 28 | 28 | 60 | 1-13 |
| HSK50A-ER11M-60 | 16 | 16 | 60 | 1-7 |
| HSK50A-ER16M-60 | 22 | 22 | 60 | 1-10 |
| HSK50A-ER20M-60 | 28 | 28 | 60 | 1-13 |
| HSK63A-ER11M-100 | 16 | 16 | 100 | 1-7 |
| HSK63A-ER16M-100 | 22 | 22 | 100 | 1-10 |
| HSK63A-ER20M-100 | 28 | 28 | 100 | 1-13 |
| HSK63A-ER25M-100 | 35 | 35 | 100 | 2-16 |
| HSK63A-ER11M-160T | 16 | 16 | 160 | 1-7 |
| HSK63A-ER16M-160T | 22 | 22 | 160 | 1-10 |
| HSK63A-ER20M-160 | 28 | 28 | 160 | 1-13 |
| HSK63A-ER25M-160 | 35 | 35 | 160 | 2-16 |
| HSK100A-ER16M-100 | 22 | 22 | 100 | 1-10 |
| HSK100A-ER20M-100 | 28 | 28 | 100 | 1-13 |
| HSK100A-ER25M-100 | 35 | 35 | 100 | 2-16 |
| HSK100A-ER16M-160T | 22 | 22 | 160 | 1-10 |
| HSK100A-ER20M-160 | 28 | 28 | 160 | 1-13 |
| HSK100A-ER25M-160 | 35 | 35 | 160 | 2-16 |
