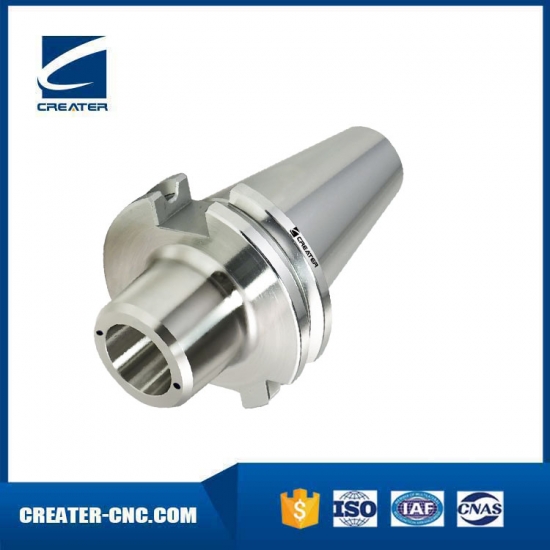

DIN69871 SK Shrink Chuck Taper, Coolant
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao Shanghai |
| Payment: | T/T |
- Specification
- Simple figure
- Precautions
INTRODUCTION
Material:Heat shrinkable steel
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.

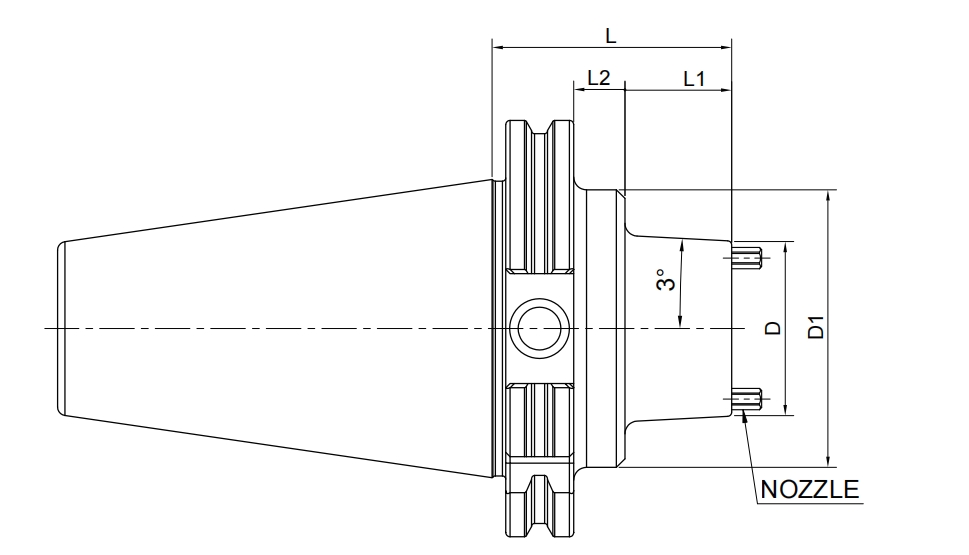

| Size | D | D1 | L | L1 | L2 |
| SK40-TSF12-45K | 41 | - | 45 | 25.9 | - |
| SK40-TSF12-75K | 41 | - | 75 | 55.9 | - |
| SK40-TSF12-135K | 41 | 44 | 135 | 28.6 | 87.3 |
| SK50-TSF12-75K | 41 | 65 | 75 | 43.9 | 12 |
| SK50-TSF12-105K | 41 | 65 | 105 | 73.9 | 12 |
| SK50-TSF12-135K | 41 | 65 | 135 | 103.9 | 12 |
