Products
Power Milling Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, China |
| Color: | Blackening Tool Holders |
| Lead Time: | 3-30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

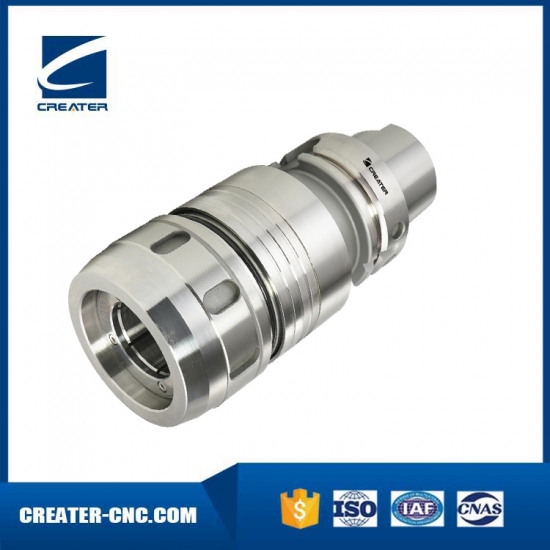

HSK63 HSK100 Power Milling Chucks
Milling Chucks are with more power than ER Collet Chucks;
Coolant Through Milling Chucks can be made by request;
Double Sealed Rings are protected from dirty and others;
Bright-tools Provide High Precision Milling Chucks.
Taper: DIN69893 HSK Tool Holders
Runout: within 0.01mm
Usage: for mounting straight shank tools in straight milling collets.

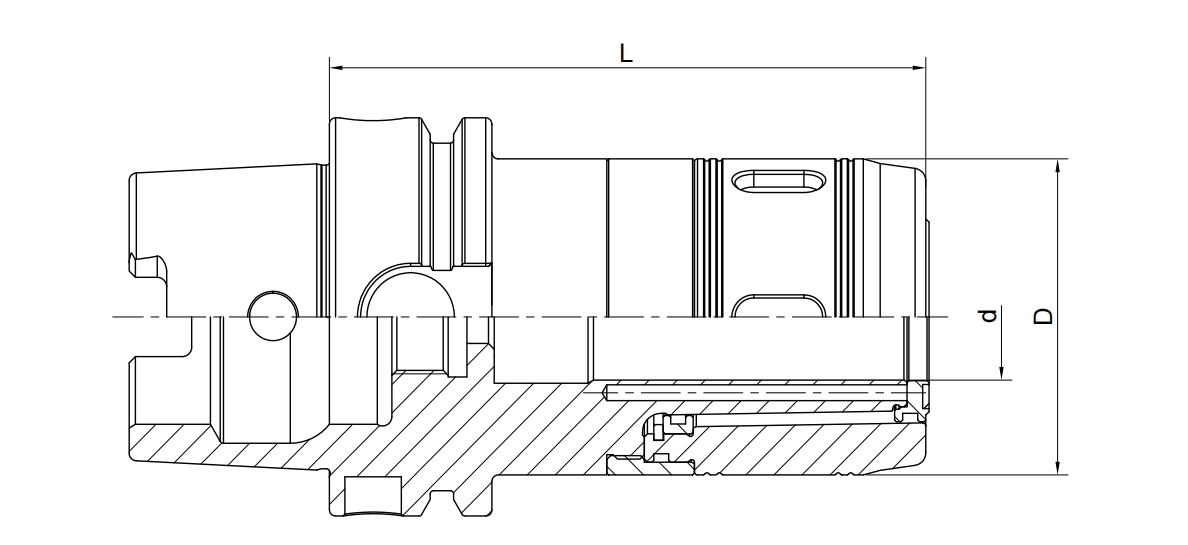

| Size | d | D | L | Capacity |
| HSK63A-HC20-100 | 20 | 50 | 100 | 3-16; 20 |
| HSK63A-HC25-100 | 25 | 59 | 100 | 3-20; 25 |
| HSK63A-HC32-120 | 32 | 72 | 120 | 3-25; 32 |
| HSK100A-HC20-105 | 20 | 50 | 105 | 3-16; 20 |
| HSK100A-HC25-105 | 25 | 59 | 105 | 3-20; 25 |
| HSK100A-HC32-120 | 32 | 72 | 120 | 3-25; 32 |
| HSK100A-HC32-165 | 32 | 72 | 165 | 3-25; 32 |
| HSK100A-HC32-200 | 32 | 72 | 200 | 3-25; 32 |
