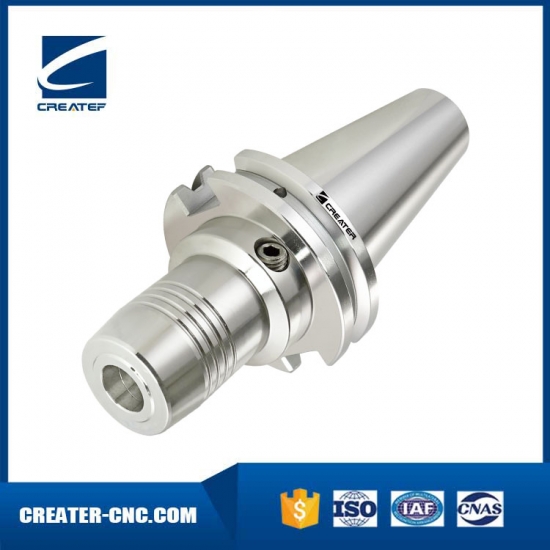

CAT Hydraulic chucks are effective for reaming, drilling, threading and light milling with end mills at high spindle speeds. They use oil pressure to compress an internal membrane within the holder body, uniformly applying high pressure to grip 360° around the tool shank. This holds cutting tools with a low and repeatable runout of maximum 3 µm at 3xD (maximum 6µm at 3xD for cylindrical shanks).

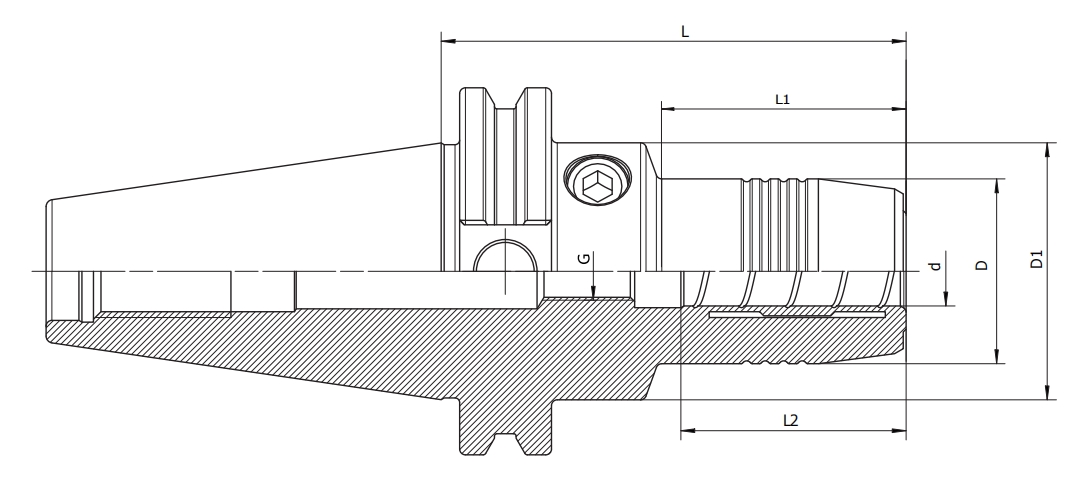

Size	d	D	D1	L	L1	L2	G
CAT40-HY06-80.5	6	26	49.5	80.5	30	27	M5
CAT40-HY08-80.5	8	28	49.5	80.5	30	27	M6
CAT40-HY10-80.5	10	30	49.5	80.5	31	32	M8x1
CAT40-HY12-80.5	12	32	49.5	80.5	31.5	37	M10x1
CAT40-HY16-80.5	16	38	49.5	80.5	33	42	M12x1
CAT40-HY20-80.5	20	42	49.5	80.5	34	42	M10x1
CAT40-HY25-80.5	25	55	66	80.5	22	48	M16x1
CAT40-HY32-80.5	32	63	80	80.5	25.5	55	M16x1

CAT40-HY06-110	6	26	49.5	110	29.5	27	M5
CAT40-HY08-110	8	28	49.5	110	30	27	M6
CAT40-HY10-110	10	30	49.5	110	31	32	M8x1
CAT40-HY12-110	12	32	49.5	110	31.5	37	M10x1
CAT40-HY16-110	16	38	49.5	110	33	42	M12x1
CAT40-HY20-110	20	42	49.5	110	34	42	M16x1

CAT50-HY06-80.5	6	26	49.5	80.5	30	27	M5
CAT50-HY08-80.5	8	28	49.5	80.5	30	27	M6
CAT50-HY10-80.5	10	30	49.5	80.5	32	32	M8x1
CAT50-HY12-80.5	12	32	49.5	80.5	35	37	M10x1
CAT50-HY16-80.5	16	38	49.5	80.5	40	42	M12x1
CAT50-HY20-80.5	20	42	49.5	80.5	40	42	M16x1

High precision 0.003mm
Better anti-vibration result
High precision machining
