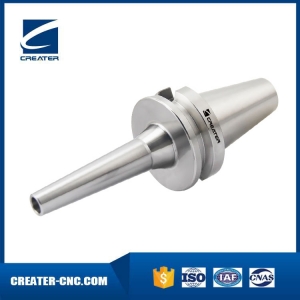

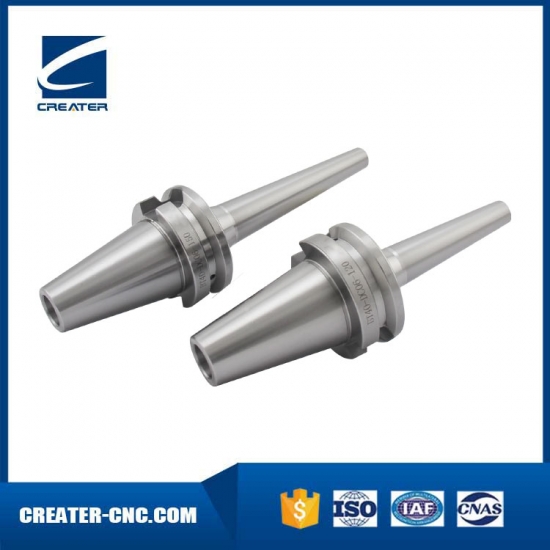

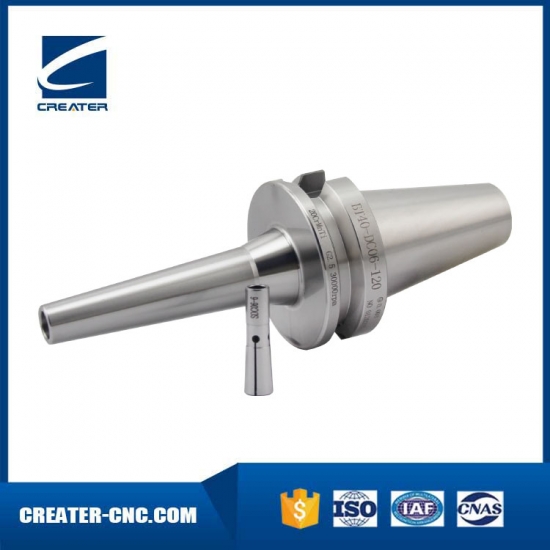

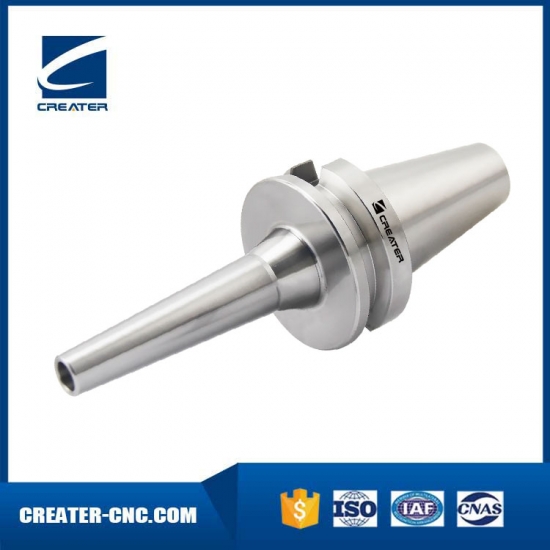

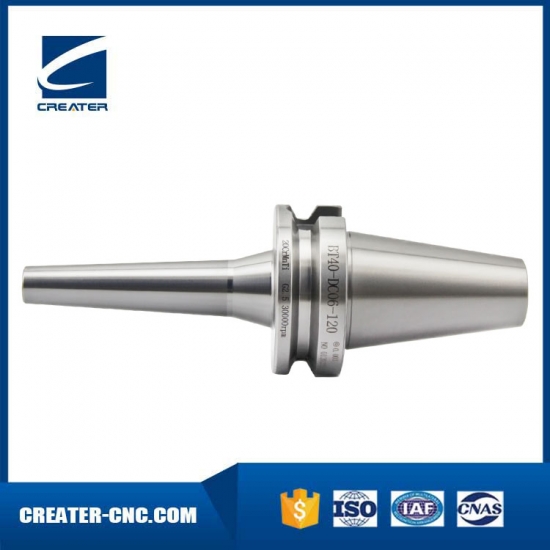

Pull Back Collet Chuck
Built-in collet design
More suitable for high speed machining
Reduced interference when machining without nuts

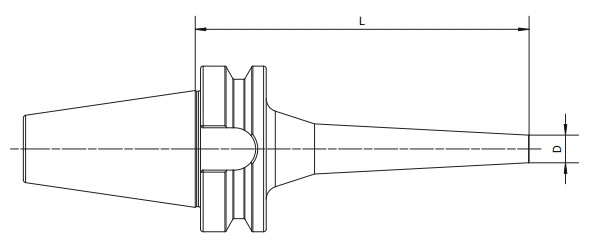

| Size | L | D | Capacity(d) |
| BT30-DC06-60 | 60 | 14 | 1-6 |
| BT30-DC06-90 | 90 | 14 | 1-6 |
| BT30-DC06-120 | 120 | 14 | 1-6 |
| BT30-DC08-60 | 60 | 22 | 1-10 |
| BT30-DC08-90 | 90 | 22 | 1-10 |
| BT30-DC08-120 | 120 | 22 | 1-10 |
| BT30-DC12-80 | 80 | 34 | 1-12 |
| BT40-DC06-60 | 60 | 14 | 1-6 |
| BT40-DC06-90 | 90 | 14 | 1-6 |
| BT40-DC06-120 | 120 | 14 | 1-6 |
| BT40-DC06-150 | 150 | 14 | 1-6 |
| BT40-DC08-60 | 60 | 22 | 1-10 |
| BT40-DC08-90 | 90 | 22 | 1-10 |
| BT40-DC08-120 | 120 | 22 | 1-10 |
| BT40-DC08-150 | 150 | 22 | 1-10 |
| BT40-DC08-200 | 200 | 22 | 1-10 |
| BT40-DC12-90 | 90 | 34 | 1-12 |
| BT40-DC12-120 | 120 | 34 | 1-12 |
| BT40-DC12-150 | 150 | 34 | 1-12 |
| BT40-DC12-200 | 200 | 34 | 1-12 |
| BT50-DC06-120 | 120 | 14 | 1-6 |
| BT50-DC06-150 | 150 | 14 | 1-6 |
| BT50-DC08-120 | 120 | 22 | 1-10 |
| BT50-DC08-150 | 150 | 22 | 1-10 |
| BT50-DC08-200 | 200 | 22 | 1-10 |
| BT50-DC12-120 | 120 | 34 | 1-12 |
| BT50-DC12-150 | 150 | 34 | 1-12 |
| BT50-DC12-200 | 200 | 34 | 1-12 |
