Morse Taper Adapter DIN6383
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

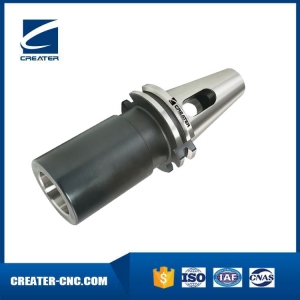

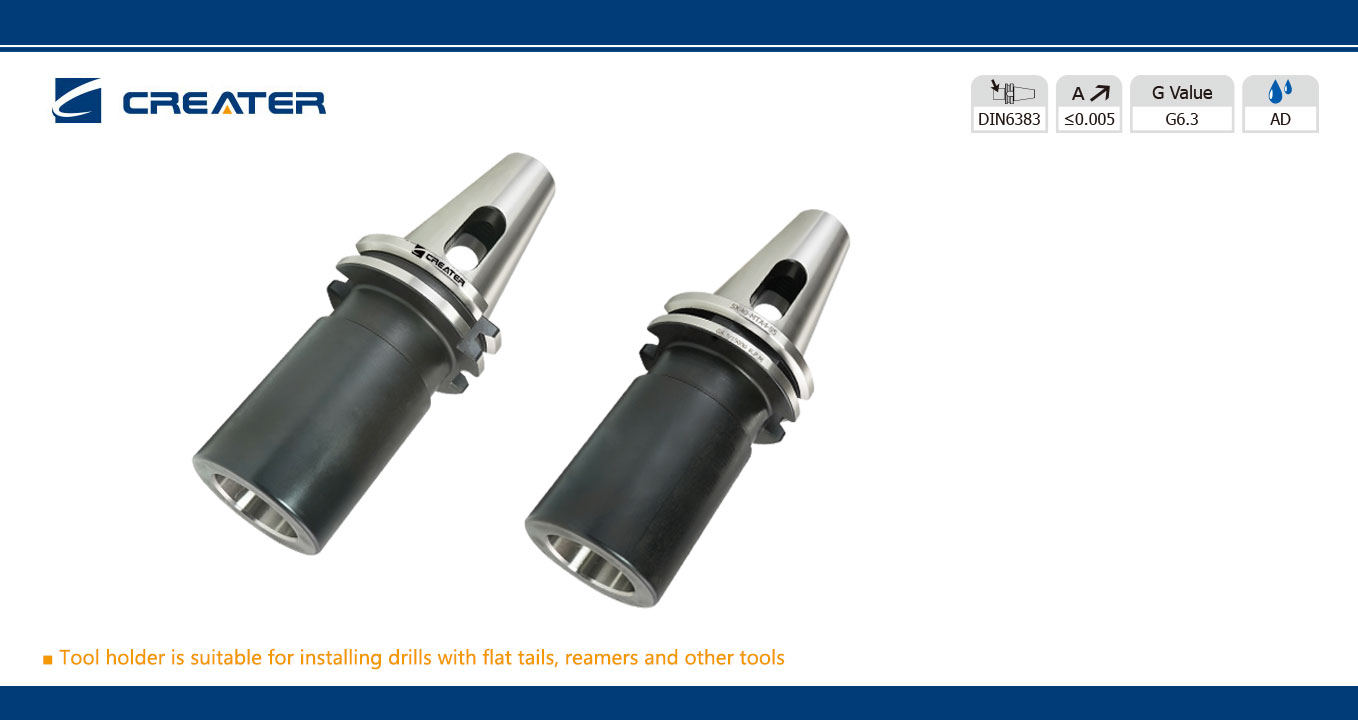

DIN69871 MTA Morse Taper Adapter with Tang DIN6383
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening
Application: DIN69871 MORSE TAPER ADAPTER is for holding tools with morse tapers and tang according to DIN 228-1 form A.

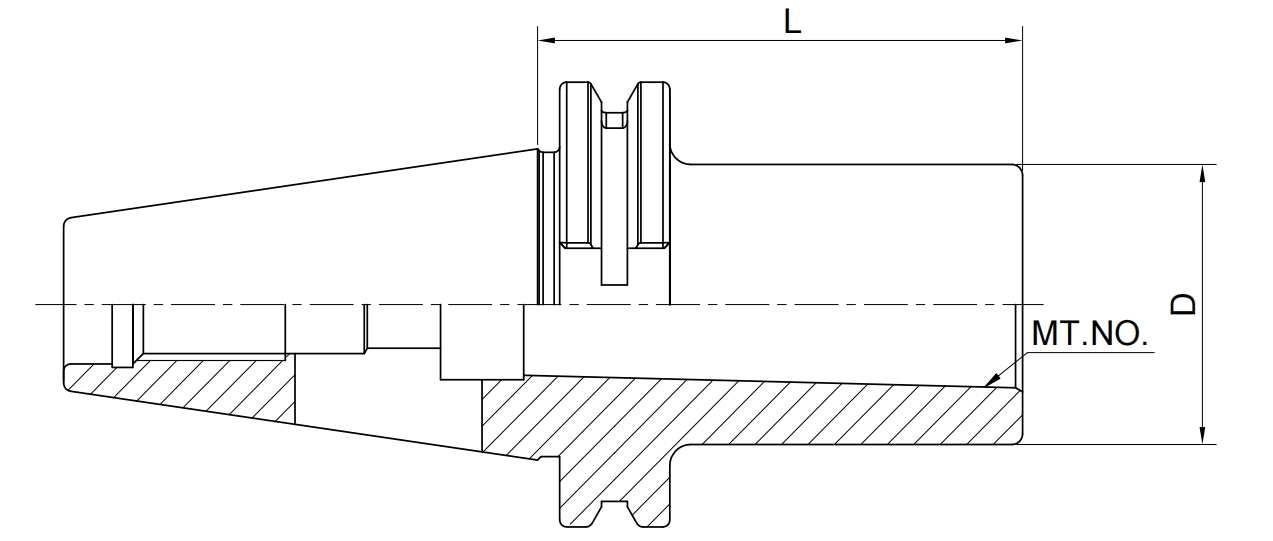

Size
MT. NO.
D
L
SK30-MTA1-50
1
25
50
SK30-MTA2-65
2
32
65
SK30-MTA3-80
3
40
80
SK40-MTA1-50
1
25
50
SK40-MTA2-50
2
32
50
SK40-MTA3-70
3
40
70
SK40-MTA4-95
4
48
95
SK50-MTA1-45
1
25
45
SK50-MTA2-60
2
32
60
SK50-MTA3-65
3
40
65
SK50-MTA4-95
4
48
95
SK50-MTA5-105
5
63
105
