HSK-T Turning Tool SDQCR | SDQCL 107.5°/55°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

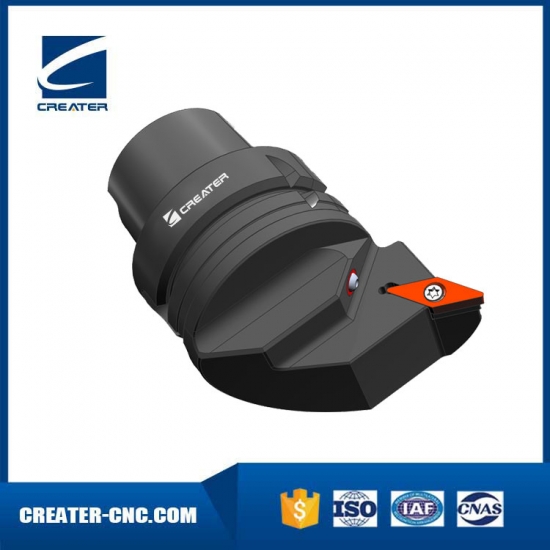

HSK63T and HSK100T Internal Turning Tool Holder for DC Style Positive Inserts
Screw clamping
Suitable for DC..11T3 inserts
Insert clamping system: S
Insert shape code: D
Tool cutting edge angle code: Q
Insert clearance angle: C
Direction of cutting code: R and L
Tool cutting edge angle: 107.5 deg.

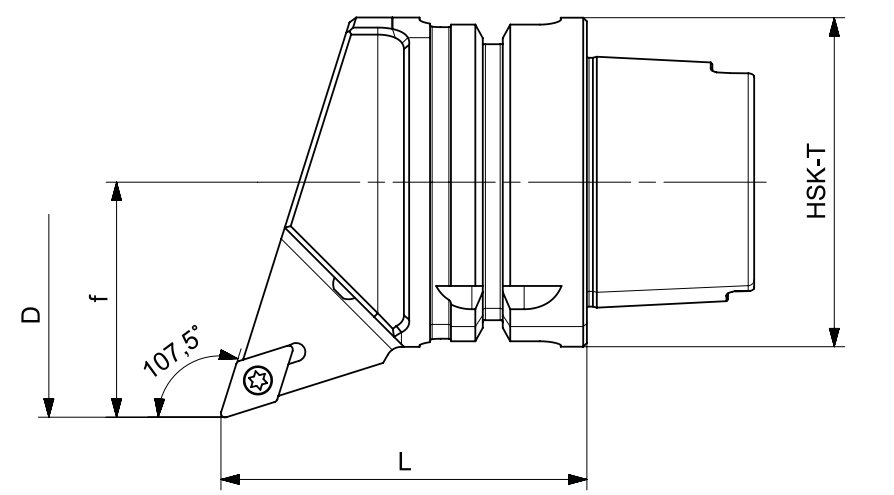

| Size | f | D | L | Direction | Inserts N. |
| HSK63T-SDQCR-45070-11 | 45 | 80 | 70 | R | DC..11T3.. |
| HSK63T-SDQCL-45070-11 | 45 | 80 | 70 | L | DC..11T3.. |
| HSK100T-SDQCR-63100-11 | 63 | 120 | 100 | R | DC..11T3.. |
| HSK100T-SDQCL-63100-11 | 63 | 120 | 100 | L | DC..11T3.. |
